Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of misen portable plasma cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

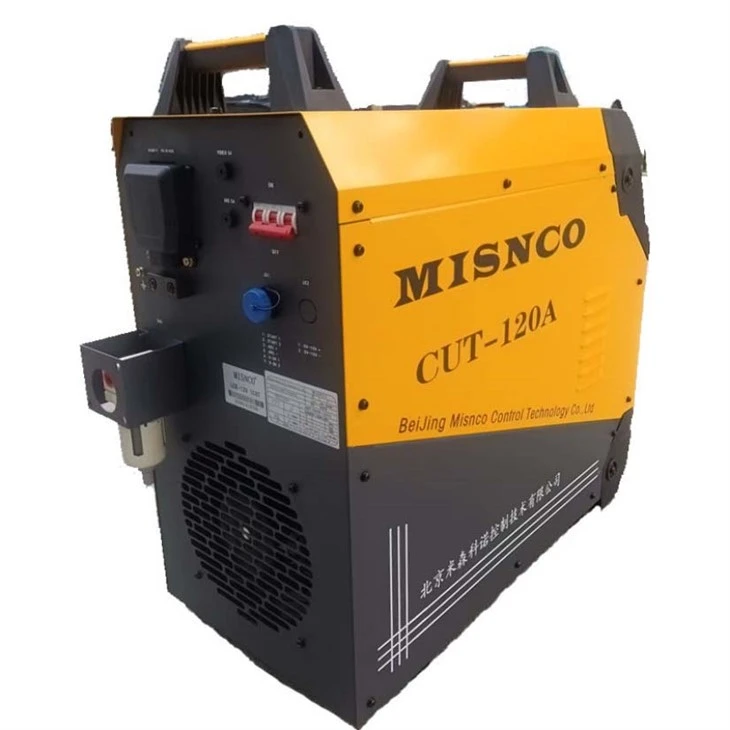

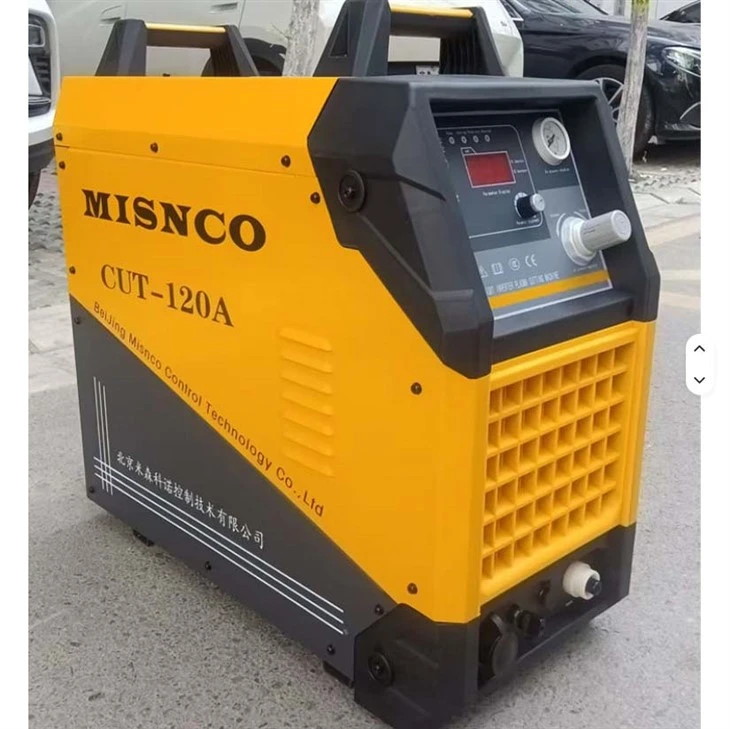

A Misen portable plasma cutting machine is an inverter-based system designed to be carried to the work rather than bringing the work to the machine. The key models we work with are the 63A, 100A, 120A, and 200A versions-each suited for different thicknesses and workloads.
That definition covers the basics, but after years of watching these machines get used in the field, I can tell you the real measure of portability is this: does the machine actually make it easier to get the job done, or does it just weigh less? The Misen units we supply-especially the 63A-hit a sweet spot where you're not sacrificing too much cutting ability for the convenience of carrying it with one hand. But the 100A, 120A, and 200A each have their own role, and choosing the wrong one can make portability irrelevant.
Maintenance
Nozzles and electrodes – The heart of the torch. On a 63A cutting 10mm steel, you'll get 500–700 starts per set. On a 200A cutting 32mm, it drops to 300–400. Always keep a full set of spares-a dead nozzle kills production dead.
Swirl rings – These direct the gas flow. They get clogged with dust and need cleaning every few weeks. If the arc starts to spiral or drift, clean the swirl ring first.
Shield cups – They take the brunt of the spatter. Replace when you see cracks or excessive pitting.
Daily routine – Drain the air line water trap. Clean the torch tip. Inspect the electrode for pitting-if you see a crater deeper than 1mm, swap it.
Monthly routine – Open the side panel and blow out the fan intake with low-pressure air. The soft-switch technology keeps heat down, but dust still accumulates.
Case
They cut circular ductwork and rectangular spools on high-rise construction sites. Previously, they used a handheld electric shear-slow and limited to thin gauge. With the 63A, they can cut 6mm steel supports for rooftop units and 3mm aluminum flashings with one tool. The non-HF ignition is a bonus-they often work near building control systems, and the plasma doesn't trip any alarms.
Where Portable Plasma Actually Gets Used
On-site repairs – Farm equipment, construction machinery, industrial maintenance. One customer we know loads his Misen into a pickup truck with a small compressor and does on-site repairs for farm equipment. The machine runs on 220V, so it works with a generator.
HVAC and sheet metal – Cutting ductwork, roofing panels, and thin gauge materials on job sites. The weight means you can carry it up a ladder or into a tight workspace.
Automotive repair and restoration – Cutting body panels, chassis components, and exhaust parts. The non-HF ignition means less electrical noise around sensitive vehicle electronics.
Small fabrication shops – Shops that don't have the floor space for a large CNC table. They use the Misen with a manual torch for custom fabrication and repair work.
Field work and salvage – Cutting structural steel into manageable pieces at demolition sites. Portability matters more than absolute cut quality.
Products Description
FAQ
01.What's the difference between a portable plasma cutter and a stationary one?
Portable units are lighter-the 55AL weighs about 20kg-and run on 110V or 220V single-phase, so you can plug them into a wall outlet or generator. Stationary units are heavier, require three-phase power, and have higher duty cycles for continuous production.
02.What thickness can a Misen portable plasma cutter handle?
A 55-amp unit handles up to about 12mm steel with good quality. A 125-amp unit handles up to about 20-25mm. For thicker material, step up to higher amperage models.
03.How long do plasma consumables last on a portable unit?
A set of nozzle and electrode typically lasts 400 to 600 starts. The single biggest factor is air quality-clean, dry air can extend consumable life significantly. A refrigerated air dryer is the best investment you can make.
04.Can I use the same power source for handheld and CNC cutting?
Yes. The PowerMax series supports both handheld and machine torch configurations. Start with a handheld unit, add a CNC table later-no need to buy a new power source.
