Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of misen inverter plasma cutter in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

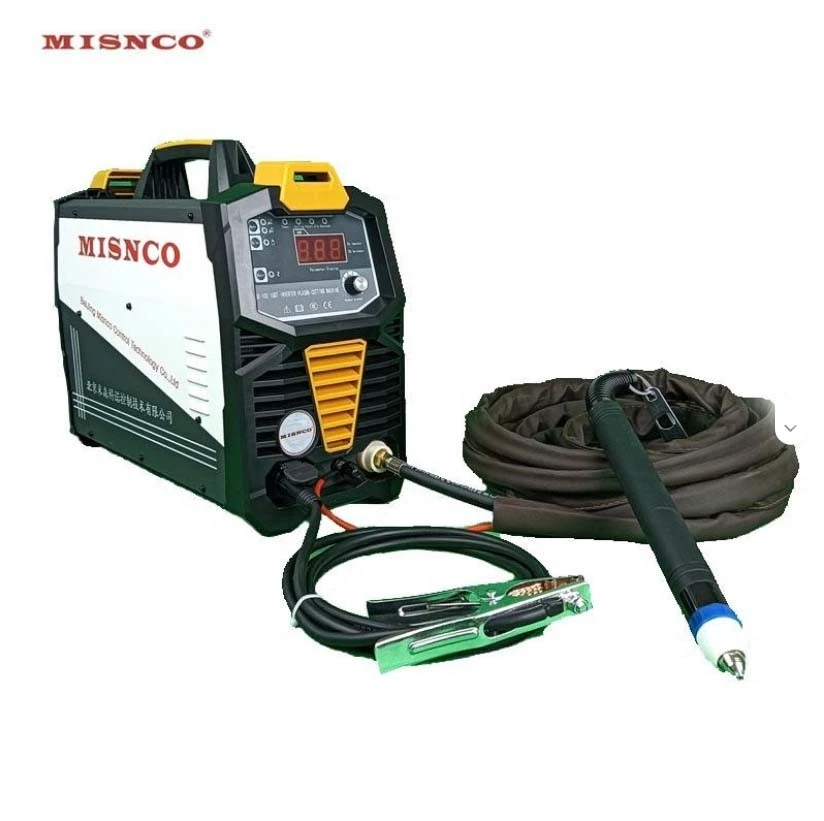

What Is an Inverter Plasma Cutter?

An inverter plasma cutter is a power source that uses high-frequency switching-typically 20–50 kHz-to convert mains power into a stable DC output for the plasma arc. The "inverter" part refers to the power supply design: it rectifies AC to DC, switches it at high frequency through a compact transformer, then rectifies it again to produce the cutting current.

How an Inverter Actually Works

The inverter does three things differently from an old transformer unit.

First, the weight. The transformer in an old machine operates at 50 Hz. At that frequency, the magnetic core needs to be large to transfer enough power. An inverter switches at 20,000 Hz or higher. The transformer can be much smaller-about one-tenth the size. That's where the weight savings come from.

Second, the response time. An inverter can adjust its output in microseconds. When the arc conditions change-you hit a dirty spot on the plate, the torch height shifts, the input voltage dips-the inverter compensates almost instantly. A transformer unit reacts slowly. The difference shows up on the cut edge.

Third, the efficiency. An inverter runs at about 90-92% efficiency. A transformer unit is closer to 70-80%. That lost energy becomes heat. The inverter runs cooler, which means it lasts longer and doesn't heat up your shop.

What to Look for in a Plasma Cutter

When you're shopping for a plasma cutter, here's what actually matters:

Amperage – This determines thickness. 40-50A for sheet metal and auto work. 80-100A for general fabrication. 120A+ for plate work.

Duty cycle – If you cut more than 15 minutes per hour, get 100% duty cycle. The cost of inadequate duty cycle is downtime, not the machine price.

Arc ignition – Non-HF means no interference with electronics. If you have CNC or computers nearby, this is a requirement.

IGBT type – Dual-module IGBT lasts longer and runs more stable than single-tube designs. You won't see this on the spec sheet; you have to ask.

Air quality – The machine itself doesn't matter if your air is dirty. Budget for a refrigerated air dryer. It will pay for itself in consumable savings.

Support – Can you get consumables locally? Is there someone you can call when something goes wrong? This matters more than the machine price.

Our Certificate

Case

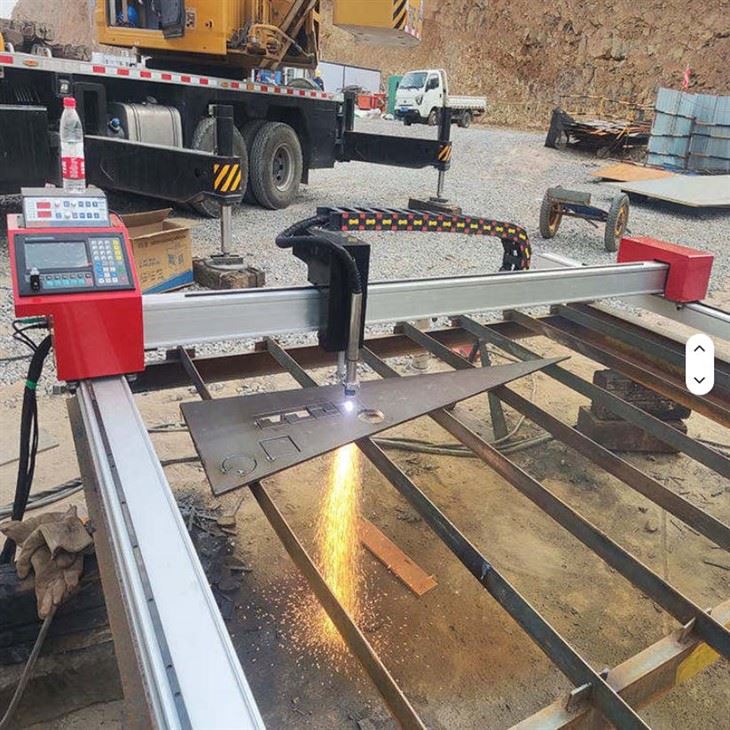

This customer had a CNC table but was using an underpowered plasma source that struggled on 12mm material. The cut quality was inconsistent and they were burning through consumables quickly.

We integrated a Misen PowerMax-125AL with their existing CNC table. The 100% duty cycle at 40°C meant they could run long cuts without the machine derating. The dual-module IGBT design gave them a more stable arc. Their throughput on 12mm material increased by about 25%.

FAQ

1. What's the advantage of an inverter plasma cutter over a transformer-based one?

The inverter is smaller, lighter, and more energy-efficient. A 50-amp inverter weighs about 20kg versus 50kg for a transformer unit. It also maintains more stable output during input voltage fluctuations-the arc doesn't drift as the machine heats up.

2. What does "non-high-frequency ignition" mean?

It means the arc starts without generating high-frequency electrical interference. If you've ever had a plasma cutter mess with your CNC controls, computer, or nearby electronics, you'll appreciate the difference. The ignition is also more concentrated, which improves cut quality.

3. What thickness can a Misen inverter plasma cutter handle?

A 55-amp unit handles up to about 12mm steel with good quality. A 125-amp unit handles up to about 20-25mm. For thicker material, step up to higher amperage models.

4. How long do plasma consumables last on a Misen unit?

In air plasma systems, a set of nozzle and electrode typically lasts 400 to 600 starts. The single biggest factor is air quality-clean, dry air can extend consumable life significantly. A refrigerated air dryer is the best investment you can make.
