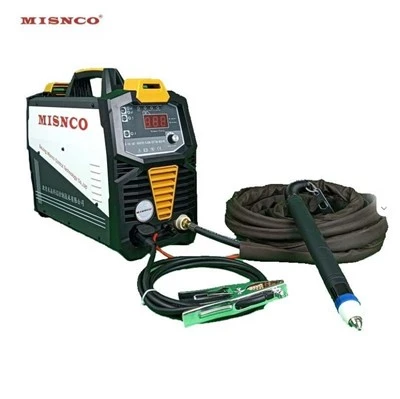

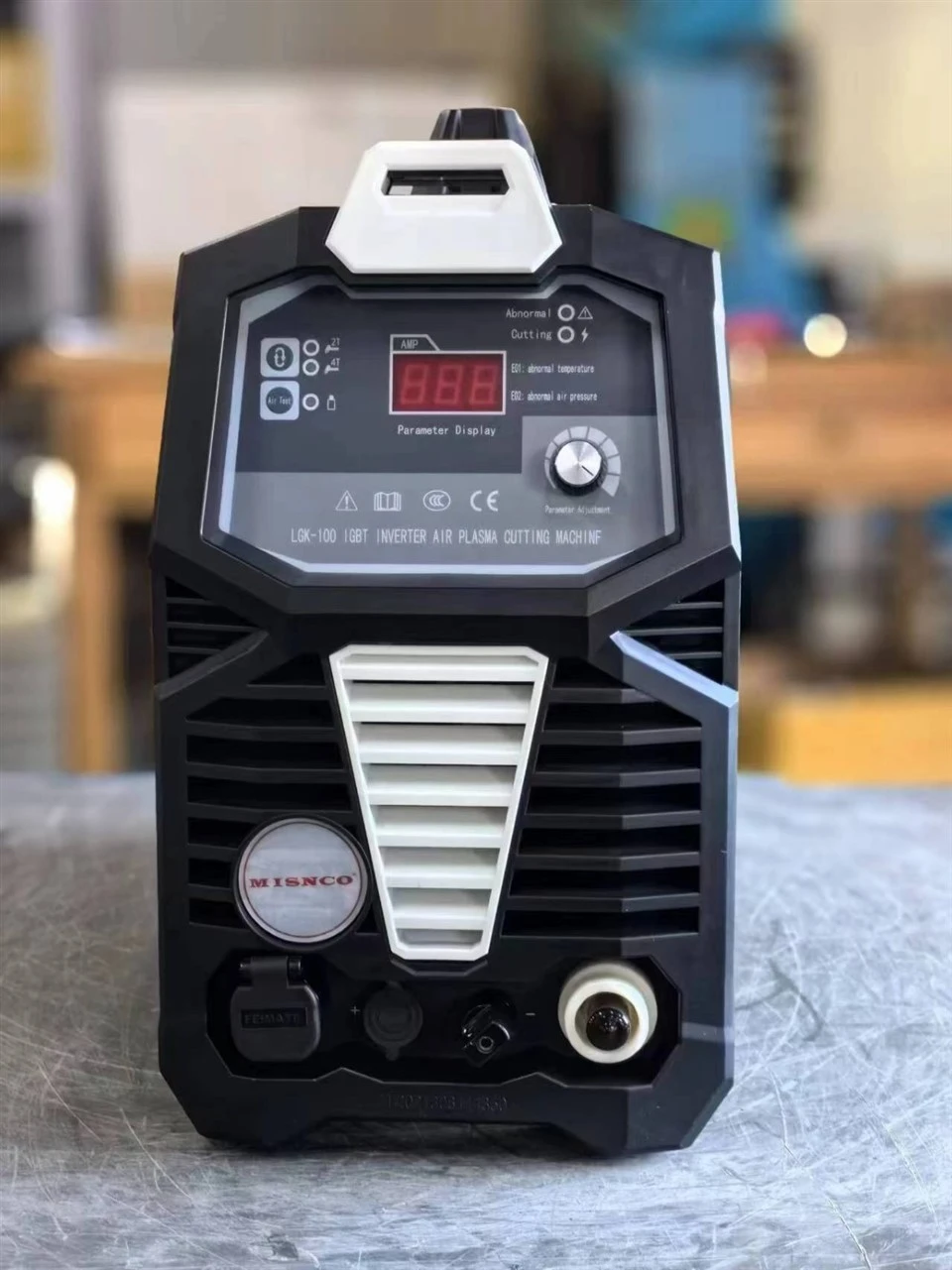

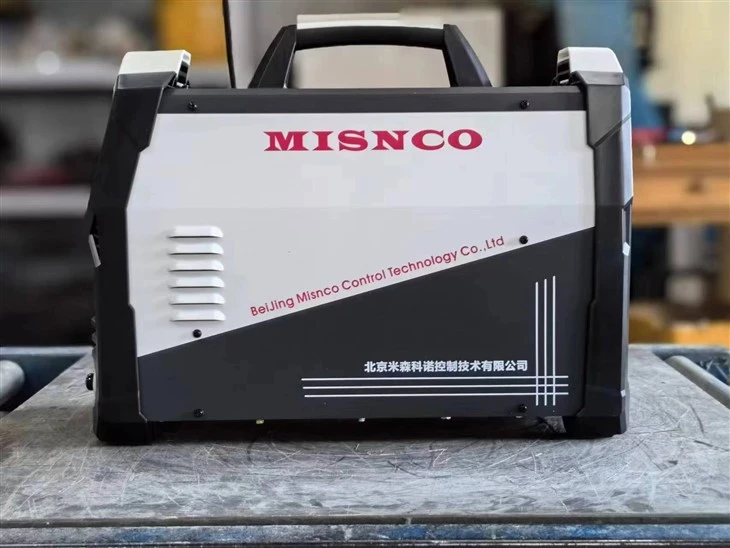

A Misen CNC plasma power source is the cutting engine for a CNC cutting table-most commonly a gantry-style or dual-drive CNC cutting machine. It doesn't cut by hand. It integrates with the machine's motion controller to deliver precisely controlled arc power for automated plate cutting.

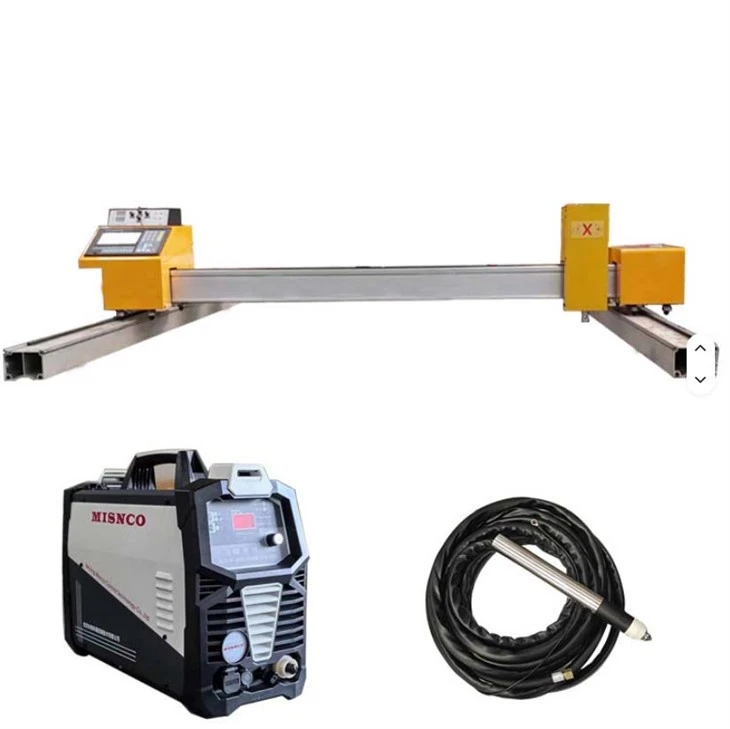

How It Works on a Gantry System
The power source mounts on or near the gantry frame. It connects to the CNC controller through digital or analog interfaces-typically RS-485 serial with ModBus protocol. The controller sends start/stop signals, current commands, and arc voltage feedback to the power source. The power source responds in microseconds.
During a cut, the CNC communicates with the power source in real time. At the moment of piercing, the system increases current to improve penetration through the plate. When the torch slows down for a corner, the system reduces current to prevent over-burning. The torch height controller uses arc voltage feedback from the power source to maintain consistent standoff distance-critical for cut quality on long runs.
The PowerMax series supports both handheld and machine torch configurations. On a gantry system, you use the machine torch with the CNC interface enabled.
Common Issues on Gantry Installations
Piercing height – This is the most common problem. Piercing height should be about 4-6mm off the plate. Too high, and the arc takes too long to pierce-consumables wear faster. Too low, and the torch gets splashed with molten metal.
Arc voltage feedback – The torch height controller uses arc voltage from the power source to maintain height. If the voltage signal is noisy or inconsistent, the torch hunts up and down during the cut. The Misen's low-ripple arc voltage output helps keep the height control stable.

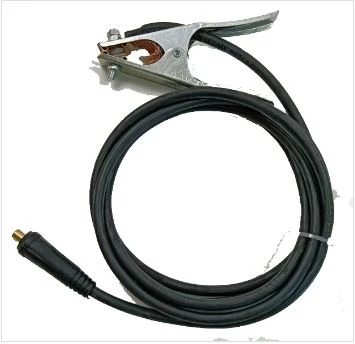

Ground connection – The ground clamp needs to be on clean, bare metal near the cut zone. If the ground is poor, the arc becomes erratic. This is the first thing to check when cut quality drops.
Parameter storage – The CNC system allows you to save cutting parameters for different materials and thicknesses. One operator can switch from 6mm steel to 16mm stainless in a few minutes, recall the saved settings, and start cutting.
Case
This customer processes plate for structural steel fabricators. Their material mix is 12–25mm carbon steel. They had been using a 120-amp unit that struggled on 25mm plate-cut speed was slow and edge quality was inconsistent.
We integrated a Misen PowerMax-125AL with their existing gantry table. The 100% duty cycle meant they could run long cuts without the machine derating. Cut speed on 25mm plate increased significantly. Edge quality improved-their reject rate for poor cuts dropped from about 4% to under 1%.
Common Problem
What's the advantage of non-high-frequency arc ignition on a CNC system?
It eliminates electrical interference with CNC controls and nearby electronics. If you've ever had a plasma cutter mess with your computer or control system, you'll appreciate the difference. The ignition is also more concentrated.
How long do plasma consumables last on a Misen-powered gantry?
A set of nozzle and electrode typically lasts 400 to 600 starts. The single biggest factor is air quality-clean, dry air can extend consumable life significantly. A refrigerated air dryer is the best investment you can make.
What kind of CNC controller works with the Misen power source?
The Misen PowerMax series supports RS-485 serial communication with ModBus protocol. It works with most mainstream CNC controllers-Beijing Start, Shanghai Fangling, Hypertherm Edge, and others. We handle the integration as part of our system supply.
Do you support customization?
Customizable colors, sizes, and accessories.
