Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of open type fiber laser cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

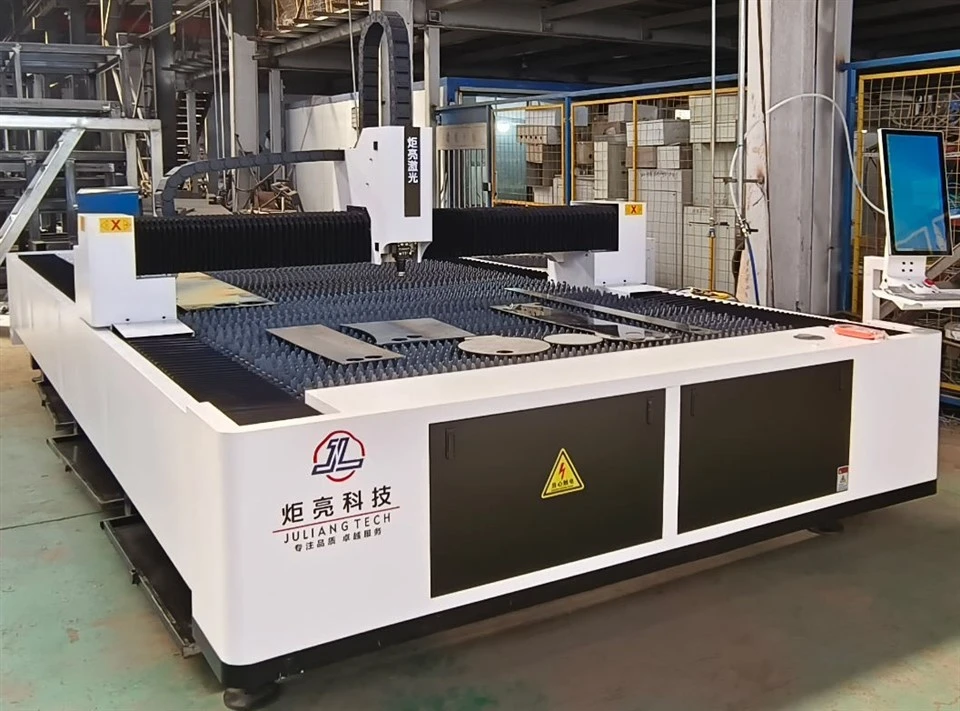

What Is an Open Type Fiber Laser Cutting Machine?

An open type fiber laser cutting machine has an exposed cutting area with no enclosure around the worktable. The operator can access the machine from multiple sides – front, back, and both ends. You load a sheet, start the program, the machine cuts, and you unload the parts. The entire cutting area is visible throughout the process.

The open design has a practical purpose. When you're processing large sheets – 3000×1500mm, 4000×2000mm, or larger – you need room to maneuver. An enclosed machine restricts access. You're feeding material through a narrow opening, working around safety panels, and trying to see what's happening through a viewing window. The open machine removes those barriers.

Open vs. Enclosed: What's the Real Difference?

The main difference lies in accessibility and protection. An open type machine gives you instant access from multiple sides. Loading and unloading is faster because you're not working through a restricted opening. You can see the cutting area clearly, which helps when you're troubleshooting or monitoring a new program.

An enclosed machine has protective panels around the cutting area. It contains laser light, fumes, and sparks inside the machine. It's safer in a multi-machine environment and better at controlling dust and smoke. But you pay for that protection in access speed and workflow flexibility.

The cost difference is notable. An open type machine generally has a lower initial investment because the structure is simpler. There are fewer panels, fewer safety interlocks, less complexity. Maintenance access is also easier – you can reach components without removing panels.

For a shop running one shift with trained operators and proper safety procedures, the open design is often the more practical choice.

Where Does an Open Machine Actually Fit Best?

Job shops and custom fabrication

These shops handle a mix of sheet sizes and materials. The open design lets them switch between jobs quickly without fighting an enclosure.

Sign making and decorative metalwork

Rapid prototyping and design flexibility are essential. Being able to see the cut and access the sheet from any side speeds up the workflow.

Construction and HVAC

Cutting structural components, ductwork, and cladding materials. Large sheets are common, and the open design accommodates them.

Workshops with crane operations

If you're loading heavy sheets with an overhead crane, you need clear access from above and the sides. An open machine provides that.

Small to medium fabrication shops

Limited floor space, limited budget. The open machine has a smaller footprint than an enclosed system and costs less upfront.

qualification certificate

UMP

UMP

faq

Q:1.What is an open type fiber laser cutting machine?

A:It is a laser cutter with no enclosure around the worktable. The cutting area is accessible from multiple sides, making loading and unloading faster and more flexible. The design prioritizes workflow efficiency and material access over containment.

Q:2.How does an open machine differ from an enclosed one?

A:Open machines give you instant access from multiple sides and clear visibility of the cutting area. Enclosed machines have protective panels that contain light, fumes, and sparks. Open machines cost less and are easier to maintain; enclosed machines offer better safety and fume control.

Q:3.What is the installation timeline?

A:From the delivery of the goods, it will take approximately 3 to 5 working days. Mechanical positioning will take about one day, electrical and gas connection will take another day, and the remaining time will be used for the trial cutting tests for parameter debugging.

Q:4.Is the open design safe?

A:Open machines require trained operators and proper workshop safety procedures – laser safety glasses, clear work zones, and proper ventilation. They are common in fabrication shops where operators are experienced and safety protocols are in place. Enclosed machines offer higher passive safety but at the cost of accessibility and workflow speed.
