What Is a Single Platform CNC Laser Cutter – and Why Choose It?

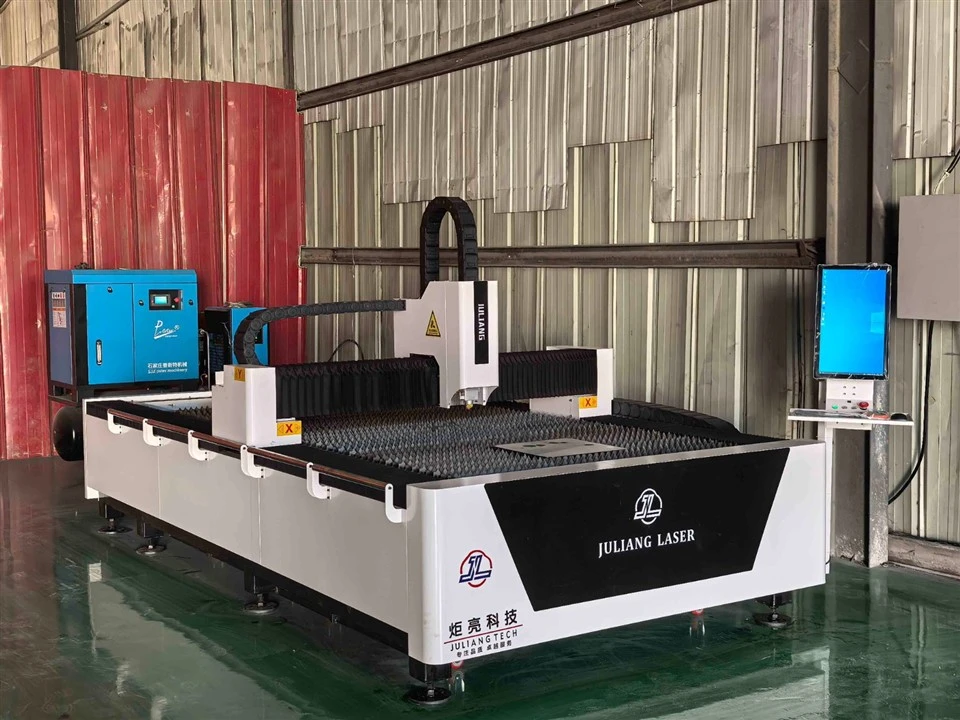

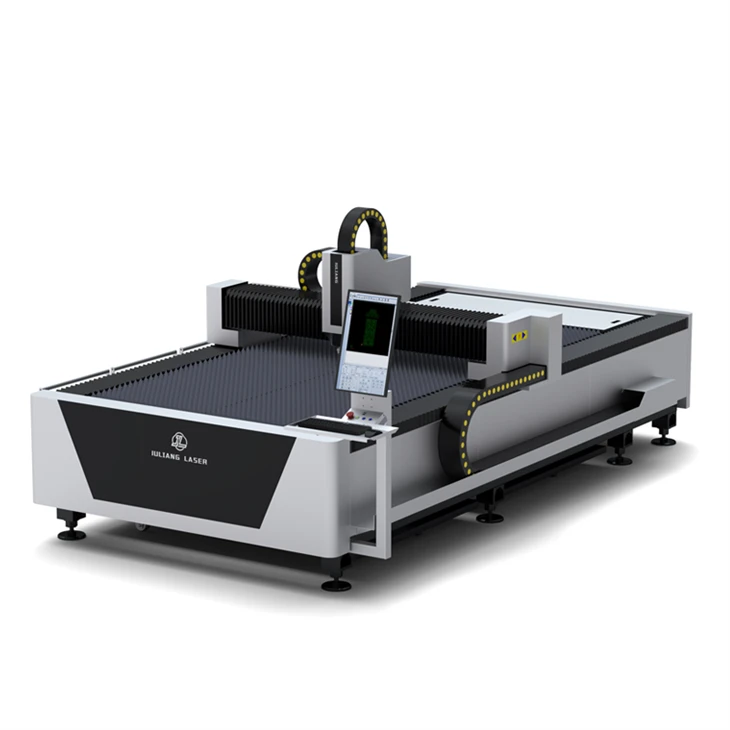

A single platform CNC laser cutter has one worktable. Load a sheet, start the program, the machine cuts, you unload the parts. One operator, one table, one cycle. No transfer mechanism, no second table to maintain, no alignment issues between pallets.
We have been building these since 2014. What I have noticed over the past few years is that the shops buying this configuration tend to be small to medium operations where the operator moves between tasks. The machine runs unattended once the program starts. That is what makes CNC valuable – not the moving parts, but the ability to let the machine work while the operator does something else.
Why Single Platform Instead of Something Else?
Simplicity has its place. A single platform machine has fewer moving parts. No exchange mechanism means fewer motors, fewer sensors, fewer potential failure points. When something does go wrong – and eventually something will – simpler machines are easier to diagnose and repair.
The upfront cost is also lower. You are not paying for a second table, for the transfer system, or for the added control complexity. For a job shop with moderate volume, the additional throughput of an exchange table rarely justifies the higher price.
One operator we worked with in Hebei said this: "I load a sheet, start the cut, and walk over to the press brake. By the time I finish bending the previous batch, the machine is done." That is the workflow single platform machines support.
1
2
3
4
| Parameter Specification Working Area | 3000×1500mm / 4000×2000mm / 6000×2000mm |
| Laser Power | 1500W/2000W/3000W |
| Repeat Positioning Accuracy | ±0.1mm |
| Max Positioning Speed | 120 m/min |
| Laser Wavelength | 1080nm |
| Working Voltage | 380V, 50/60Hz |
| Positioning Accuracy | ±0.3mm |
FAQ
Single platform has one worktable. Exchange table has two tables that swap positions. Single platform costs less, takes less space, has fewer moving parts. Exchange table reduces idle time between sheets. Choose based on your production volume and floor space.
Positioning accuracy is ±0.3mm. That means parts go straight to assembly without rework. The repeat positioning accuracy is ±0.1mm.
The ceramic ring sits between the cutting head and the nozzle. If the head crashes into the workpiece or a clamp, the ring breaks first. This saves the expensive cutting head. Always keep a few spares on hand.
Oxygen for mild steel – it adds heat to the cut and speeds up the cut. Nitrogen for stainless steel and aluminum – it gives a clean, oxide-free edge. Compressed air for thin materials under 3mm.
