Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of metal sheet fiber laser cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

Product brief introduction

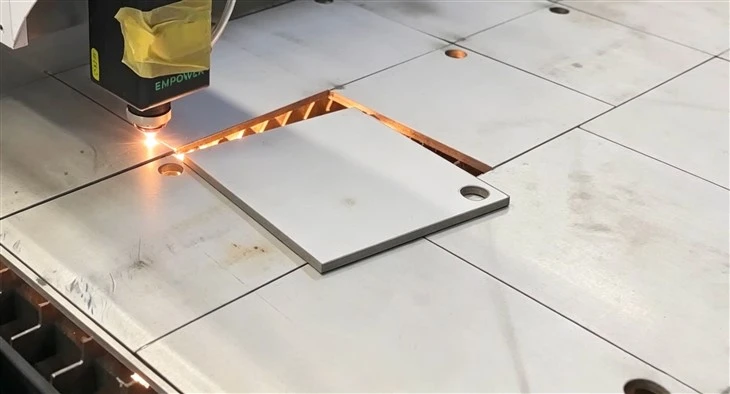

A fiber laser cutting machine for metal sheets is a computer-controlled system that utilizes a powerful fiber laser beam to precisely cut flat metal sheets. The laser originates from a fiber source, travels via a fiber optic cable to the cutting head, and is then focused into a concentrated point. This intense spot melts or vaporizes the metal along a pre-determined path. An assist gas, such as oxygen, nitrogen, or compressed air, is used to blow away the molten material, resulting in a clean edge.

Fiber lasers have become the preferred choice over CO₂ lasers for sheet metal work due to their practical advantages. These include greater electrical efficiency, reduced maintenance, superior beam quality, and quicker cutting speeds on thinner to medium gauge materials. Fiber lasers convert electrical energy into laser light much more effectively than CO₂ lasers, leading to lower power usage and decreased operational expenses. Additionally, they eliminate the need for mirror alignment and laser gas replacement. For businesses operating their machines around the clock, these cost savings add up significantly.

Product Features

This single worktable design simplifies operation with one fixed surface, eliminating the need for a transfer mechanism and potential alignment issues. With fewer moving parts, the risk of malfunction is significantly reduced.

Achieve high cutting precision thanks to a positioning accuracy of ±0.3mm, ensuring parts are ready for assembly without any need for rework.

The stress-relieved frame undergoes a full annealing cycle, guaranteeing sustained accuracy over many years of use.

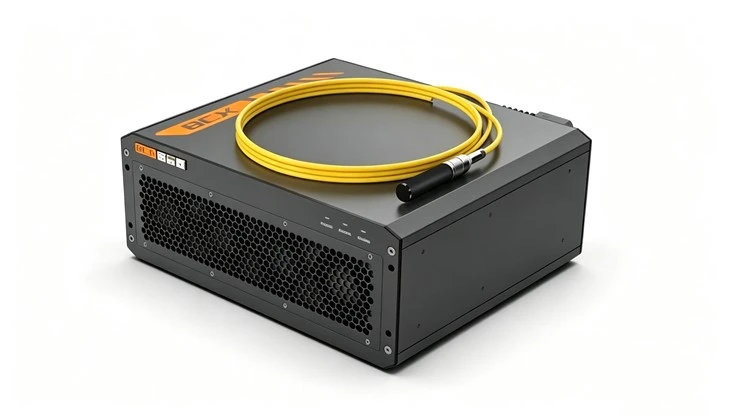

Opt for an energy-efficient fiber laser source, which consumes only 20–30% of the energy used by CO₂ lasers. Its superior electro-optical conversion efficiency translates directly to lower operating expenses.

Leverage intelligent CNC control that seamlessly supports nesting and CAD import, along with parameter storage for various material types and thicknesses.

Benefit from anti-collision sensing, which halts the cutting head before any impact occurs. This protects the expensive cutting head, offering a more cost-effective solution than repairs.

Experience automatic focus adjustment, where the cutting head precisely modifies its focal position for different material thicknesses.

certificate

FAQs

01.What is a metal sheet fiber laser cutting machine?

It is a CNC system that uses a fiber laser beam to cut flat sheet metal. The beam melts the material along a programmed path, and assist gas removes the molten metal. It is the standard configuration for sheet metal fabrication.

02.How does fiber laser compare to CO₂ laser?

Fiber lasers are more energy-efficient, require less maintenance, and cut faster on thin to medium materials. There are no mirrors to align and no laser gas to replace.

03.What is the installation timeline?

3 to 5 working days from delivery. Mechanical positioning takes about a day, electrical and gas connections another day, and test cutting with parameter tuning takes the remainder.

04.How do I maintain the cutting head?

Check the protective lens and nozzle daily. Clean the lens with lens paper and alcohol. Replace the nozzle when you see rough edges or excessive dross. Ceramic rings break first in a collision-keep spares on hand. Gas quality is the most common source of problems-a refrigerated air dryer is essential.

Company Profile

We started in 2014 and have experienced over a decade of development. We produce over 20 different types of mechanical equipment. Our products are widely used in shipbuilding, steel structures, bridges, construction, mining machinery, and automotive manufacturing, among other fields. The share of the export market in our business is continuously increasing.
Over the years, one thing I have learned is that the performance of a machine depends on the support behind it. Therefore, we have a team of service engineers who can be responsible for installation, training, and maintenance work. This is also the reason why we provide 24/7 remote video support - we can respond at any time if needed. At the same time, we also have a showroom where various models are displayed, allowing customers to try and test the parts before purchasing.
We are committed to manufacturing machines that operate reliably and maintaining them properly. This philosophy has enabled us to continue operating for over a decade.
