We are always at your service when you needWhat Is a Compact Single Platform Laser Cutting Machine?

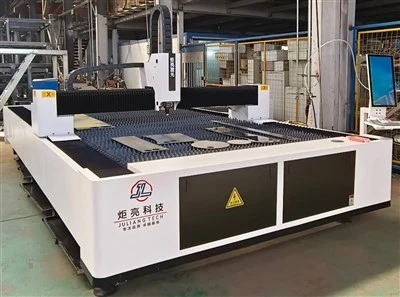

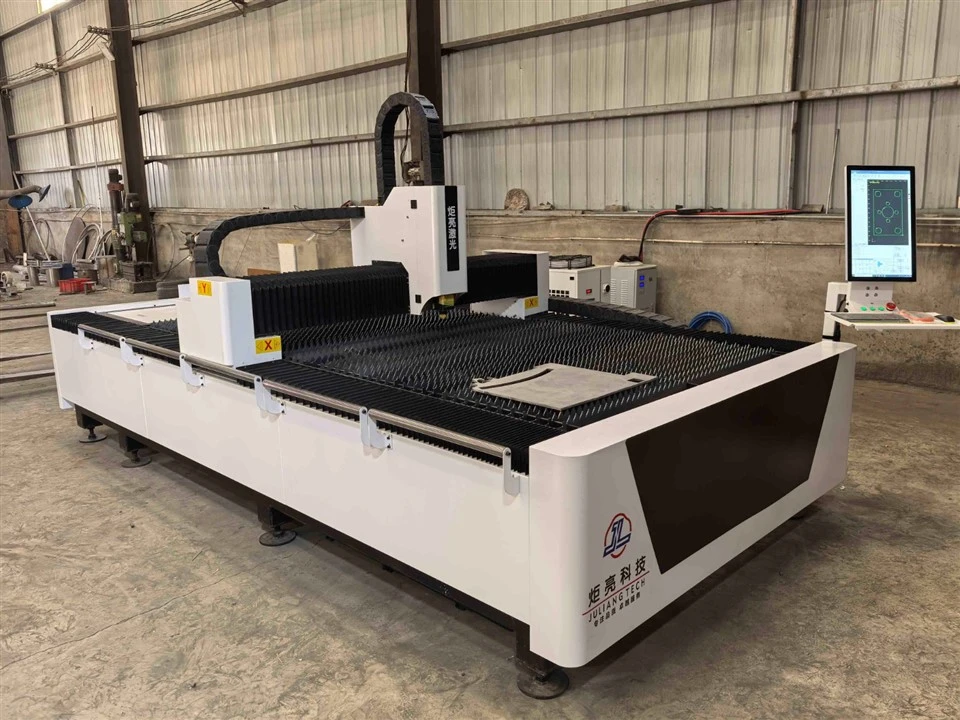

A compact single platform laser cutting machine is a fiber laser system with one fixed worktable-no exchange mechanism, no second pallet, no transfer motors to maintain. What makes it "compact" isn't just the footprint; it's the design philosophy behind it. Every component is chosen to minimize floor space without compromising cutting capability.

We started building these in 2014, and what I've noticed is that the shops choosing them aren't necessarily the smallest operations-they're the ones where space is expensive. One customer in Hebei had exactly four meters of usable wall space. He told me: "I measured the exchange table machines first. None of them fit. This one did." That's the reality for a lot of shops.

The machine fits into a standard workshop without rearranging everything. The open design means you can load sheets from the front or side, which matters when your workshop layout isn't perfect. And because there's no exchange mechanism, there's nothing to align, nothing to synchronize, and fewer things to break.

What Makes a Compact Machine Different from a Standard One?

The difference isn't just the dimensions. A compact machine achieves its smaller footprint through three design choices.

First, the frame – The bed is welded and stress-relieved like any other machine, but the overall dimensions are tighter. We don't add extra length for future upgrades or oversized components.

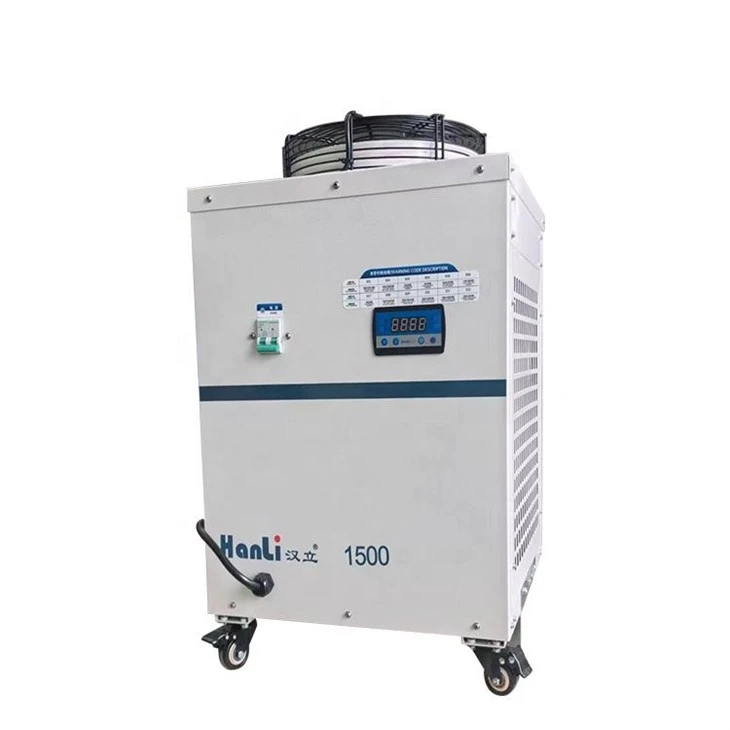

Second, the integration – The chiller, control cabinet, and laser source are arranged to minimize the machine's overall footprint while maintaining service access-. This isn't about squeezing everything into a tiny box-it's about thoughtful layout.

Third, the gantry – The beam uses lightweight aluminum construction, which reduces moving mass and allows for a more compact overall design without sacrificing rigidity.

The practical result is a machine that delivers the same cutting performance as larger systems but takes up about 30% less floor space-. In a shop where every square meter counts, that's a real advantage.

Where Does a Compact Machine Actually Fit?

The applications aren't different from larger machines-just the space they occupy.

Job shops with limited space – If your workshop is already full, a compact machine lets you add laser cutting without removing other equipment-.

Startups and growing shops – You don't need to invest in a larger facility to get into laser cutting-1. Start with a compact machine, and upgrade as your space and production grow.

Second-machine setups – Some shops add a compact machine as a secondary unit for smaller parts or prototype work, while keeping their larger machine for production runs.

Garage and small workshops – Not every shop has industrial space. A compact machine fits in spaces where larger equipment won't.

certificate

Maintenance and What Actually Wears Out

Fiber lasers are lower maintenance than CO₂. No mirrors to align, no laser gas to replace.

01/

Daily – Check the protective lens and nozzle for contamination or wear. Clean the lens with lens paper and alcohol.

02/

Weekly – Check coolant levels and air filters.

03/

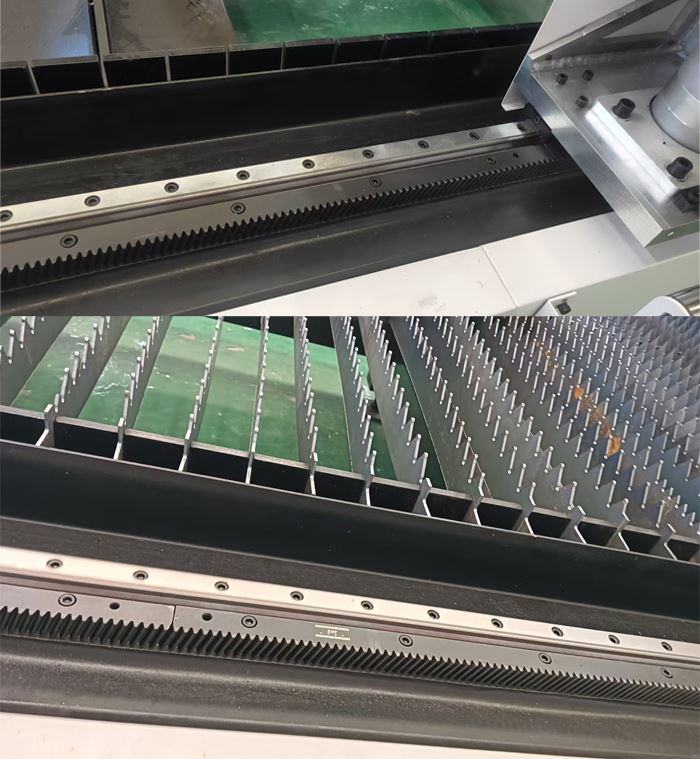

Monthly – Inspect guide rails and drive systems for wear.

04/

Common wear items – Nozzles, protective lenses, ceramic rings. The ceramic ring breaks first in a collision to protect the cutting head. Keep spares on hand.

05/

The most common issue – Assist gas quality. Wet or contaminated gas damages optics and affects cut quality. A refrigerated air dryer is not optional-it's essential. One customer was changing lenses every two weeks until we installed a dryer. Now they last three months.

Everything You Need to Know

What does "compact" mean in terms of floor space?

A compact machine takes up about 30% less floor space than a standard single platform machine. The exact dimensions depend on the working area you choose-3015 (3000×1500mm) is the most common size. The compact design is achieved through tighter component integration without sacrificing service access.

What's the difference between a compact machine and a standard one?

The difference is in the overall footprint and component layout. The frame is dimensionally tighter, the chiller and control cabinet are integrated more efficiently, and the gantry is designed for reduced moving mass. Cutting performance is the same.

What's the installation timeline?

3 to 5 working days from delivery. Mechanical positioning takes about a day, electrical and gas connections another day, and test cutting with parameter tuning takes the remainder.

How do I maintain the cutting head?

Check the protective lens and nozzle daily. Clean the lens with lens paper and alcohol. Replace the nozzle when you see rough edges or excessive dross. Ceramic rings break first in a collision-keep spares on hand. Gas quality is the most common source of problems-a refrigerated air dryer is essential.
