Product Introduction

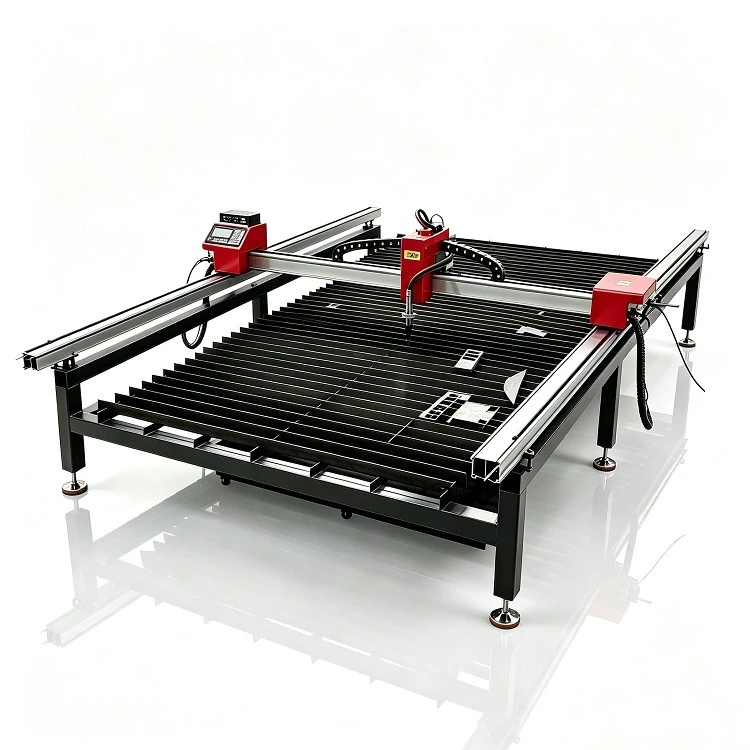

This 1530 dual-drive portable CNC cutting machine is equipped for both plasma and flame cutting. It boasts a stable bilateral drive and a gantry that moves easily, allowing it to cut thin alloy sheets and carbon steel up to 150mm thick. With offline CNC programming via USB and CE certification, it's perfectly suited for metal fabrication in workshops, on-site projects, steel structure work, and shipyard processing.

Core Components & Standard Configuration

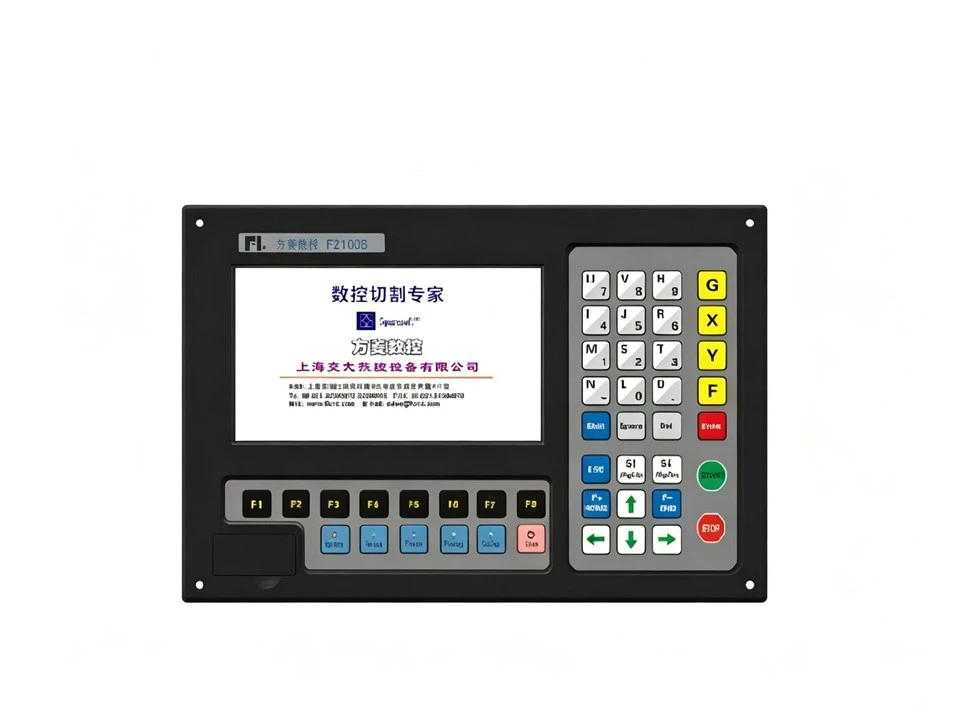

System Host
Shanghai Fangling F2100B
The CNC system host acts as the central control for the cutting equipment. It receives drawing files, interprets cutting programs, and sends motion commands to the entire machine, enabling automated plasma and flame cutting. This system supports offline file import via USB, includes a comprehensive library of common graphics, and offers multi-language support. It ensures precise programming and efficient cutting of complex metal parts, integrating seamlessly with gantry and portable CNC cutting machines.

Arc voltage increase

Shanghai Fangling F1621P / F2100B
This arc voltage height controller continuously monitors arc voltage changes during plasma cutting. It automatically adjusts the torch height to maintain a consistent cutting gap between the nozzle and the workpiece. This feature prevents potential torch damage from collisions and guarantees precise, smooth cuts, even on irregularly surfaced steel plates.

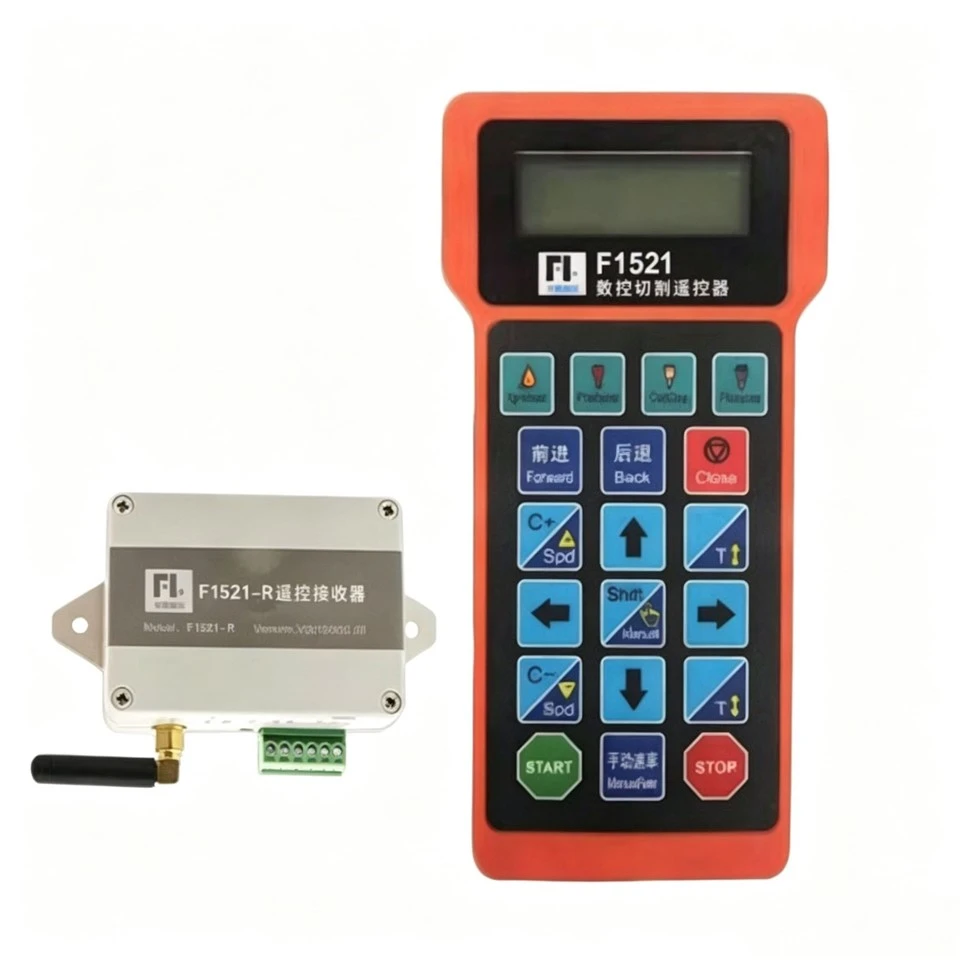

Wireless Remote Controller

Shanghai Fangling F1521
This wireless remote control unit offers handheld operation for your CNC cutting machine, providing features like start/stop functions, speed adjustments, and jog movement. It empowers operators to manage equipment from a distance, enhancing on-site flexibility and ensuring greater construction safety.

Equipment Parameters

Cutting method	Plasma/Flame	Horizontal moving body	Plasma/Flame dual-purpose
Effective cutting width	Guide rail spacing - 500mm	Operating system	Shanghai Fangling
Effective cutting length	Length of the longitudinal guide rail - 500mm	Arc voltage adjustment device	Shanghai Fangling
Height of the cutting torch	≤ 250mm	Trimming software	StarCam
Travel speed during idle movement	0 - 6000mm/min	Motor drive	Stadet
Cutting speed	0 - 5000mm/min	Voltage	220 volts, 110 volts, 380 volts
Up-and-down movement method of plasma cutting torch	Automatic adjustment of arc pressure	Warranty	2 years
Linearity of the side of the main guide rail	0.4mm/10000mm	Dimensions (Length * Width * Height)	3620 * 450 * 730mm
Diagonal accuracy	±0.5mm	Weight (kg)	160kg
Circular accuracy	±0.5mm	Linear accuracy	±0.2mm

Pipeline Contractor – On-Site Cutting Solution

An oil pipeline construction team required a portable but durable cutter for remote locations. They selected the Dual-Drive 1530 Portable CNC Plasma & Flame Machine due to its light weight and dual-functionality. The flame cutting feature handles thick carbon steel pipes up to 150mm, while plasma cutting delivers fast, clean cuts on stainless steel. The dual-drive system ensures cutting accuracy even on uneven terrain. This machine allows the team to deploy it rapidly at various project sites, eliminating the need for heavy, fixed equipment and considerably shortening project timelines

Products Descriptionmore

Steel structure factory

ship repair and construction

tower workshop

infrastructure construction site

Frequently Asked Questions

How long is the warranty period?

We provide a one-year warranty.

What are the payment methods?

Payment methods: Telegraphic Transfer, Letter of Credit, Credit Card, PayPal, Western Union Money Transfer, Cash.

What should I do if there is a problem with the machine?

We have a professional after-sales team to serve you. If you have any questions, please feel free to contact us at any time. We will solve all your problems for you. What should I do if there is a problem with the machine?

Where is your factory? May I visit it?

Sure, we are very glad to have your presence. We sincerely hope it can add charm to our factory. Our factory is located at No. 43, Zhengwu Road, Caijiajiang Village, Zhaojiazhuang Town, Gaoxian District, Shijiazhuang City, Hebei Province.
