Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of portable cnc plasma cutter machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

Product Overview

When workshop space is limited or jobs move between sites, a compact yet powerful cutting solution becomes essential. The Portable CNC Plasma Cutter Machine from Hebei Juliang Technology Co., Ltd. fills that gap perfectly. Designed for fabricators, steel service centers, and maintenance workshops, this unit combines industrial-grade cutting accuracy with true portability. Unlike stationary gantry systems, this machine travels to the work piece – not the other way around.

Built on Real-World Experience

After years of direct feedback from shipbuilding and steel structure clients, we reinforced the chassis with a thickened aluminum base. The crossarm is both heightened and lengthened, while extra-wide longitudinal rails suppress vibration during high-speed traversing. The result: smoother operation, narrower kerf variation, and a cutting width reaching 1800 mm. For carbon steel and stainless steel plate processing, this Portable CNC Plasma Cutter Machine consistently delivers edge quality that reduces secondary grinding.

Intelligent Control & Low-Downtime Components

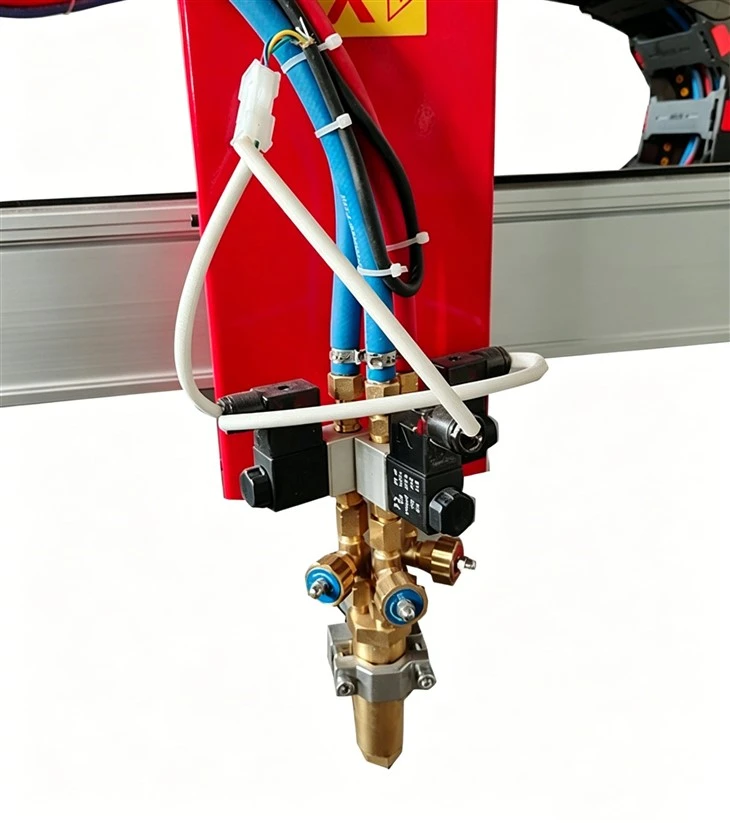

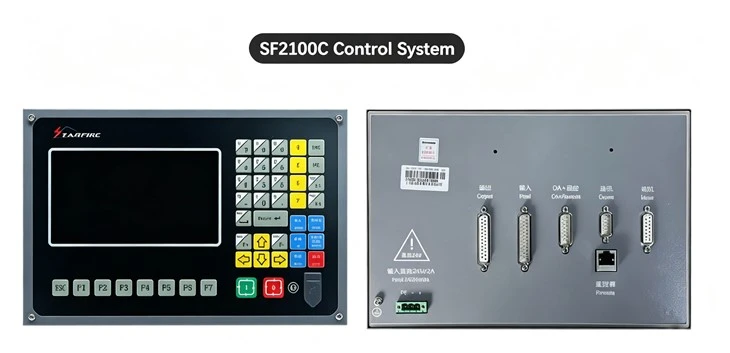

We integrated the Shanghai Fangling digital control system – a proven choice in harsh cutting environments. The built-in graphic library holds 45 common shapes, so operators skip complex G-code writing. Electrical parts are sourced from sector-leading brands, keeping failure rates low even with daily 8-hour shifts. Dual process ready: flame cutting with oxygen/propane or acetylene, and plasma cutting with an automatic torch height controller.

Technical Highlights (At a Glance)

Model range: BXSK-1820 / 1830 / 1840 / 1860
Effective cutting length: L-500 mm (L = rail length)
Cutting width: 1800 mm (total crossarm 2400 mm)
Max idle speed: 5000 mm/min
Drive method: Single-side drive, stable and easy to maintain
Input power: 350W (main unit only, plasma source separate)
Voltage: 220V / 50Hz / single phase
Quality standard: JB/T 10045.4-1999 for plasma arc cutting

Where It Works Best

This machine is field-proven in:

Shipbuilding – curved plate profiling and bevel preparation
Steel structures – beam copes, base plates, stiffeners
Construction machinery – wear plate cutting, retrofit parts
Automotive manufacturing – brackets, frames, prototypes

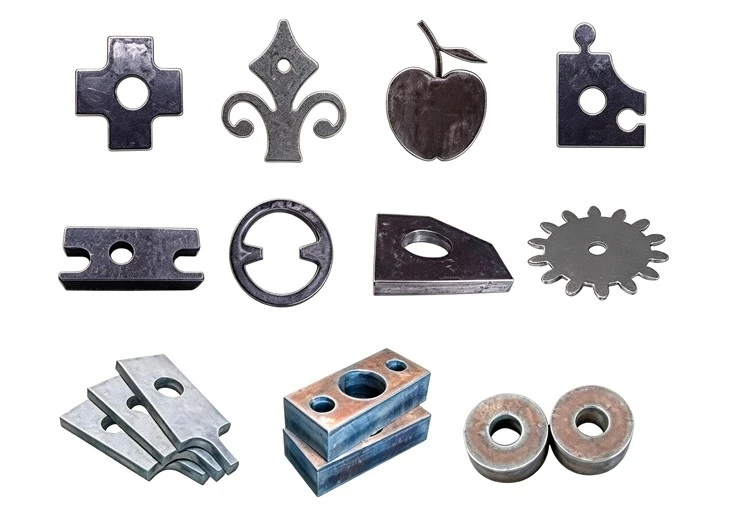

Signage & decoration – complex lettering and hollow designs

Why Choose Juliang for Your Portable CNC Plasma Cutter?

1. Physical scale that supports service
Our third factory expansion (2025) increased output capacity by over 40%. A super office and dedicated R&D floor mean engineering support is always a call away.

2. Warranty that reduces risk
Whole machine: 1 year. Laser generator (if equipped): 2 years. Spare parts dispatch within 24 hours for common wear items.

3. No hidden logistics cost
Each unit is test-cut with your material grade before packing. We provide both maritime and air freight options to Southeast Asia, Africa, Europe, and the Americas.

4. Responsive engineering team
Not a chatbot. Real engineers offer 24-hour remote video support. We also keep demonstration units for free sample cutting – just send your CAD file.

Client Case – Steel Fabricator in Eastern Asia

A medium-sized steel service center processing 8–20 mm mild steel plates replaced their old semi-automatic carriage cutter with our Portable CNC Plasma Cutter Machine. Results after 3 months:
Cutting time per sheet reduced by 32%
Scrap rate dropped from 4.1% to 1.6%
One operator now runs two shifts without re-teaching patterns
The client later ordered a second unit for their field installation team.

FAQ – Portable CNC Plasma Cutter Machine

Q: Can this machine cut stainless steel, and what thickness is realistic?

A: Yes. For stainless steel up to 16 mm, we recommend plasma cutting with compressed air or nitrogen. For carbon steel, flame cutting handles 6–50 mm comfortably. The automatic torch height controller maintains consistent standoff distance across uneven plates.

Q: How do you handle initial setup and operator training?

A: We provide three layers of support:
·Pre-shipment: machine burn-in test with your material sample (video recorded)
·During installation: step-by-step remote video guidance by our engineers
·After delivery: access to our technical library + optional on-site training for container orders
Most customers achieve production-ready cuts within 2 days.

Q: What if a component fails after 14 months?

A: We stock all electronic and mechanical wear parts. After diagnosis through video call, we either ship the replacement part for local fitment (with remote guidance) or arrange return-to-factory repair. Out-of-warranty repairs are quoted transparently – no hidden bench fees.

Ready to Upgrade Your Cutting Line?

Request a quote or send a sample drawing to our after-sales team. We will reply within 24 hours with cut time estimates and recommended model (BXSK-1820 to 1860). For orders of two or more units, factory acceptance testing and basic tool kits are included.

Contact Hebei Juliang Technology Co., Ltd. – where strength builds a brand, and integrity forges the future.
