Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of mini metal laser cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

What This Machine Actually Is

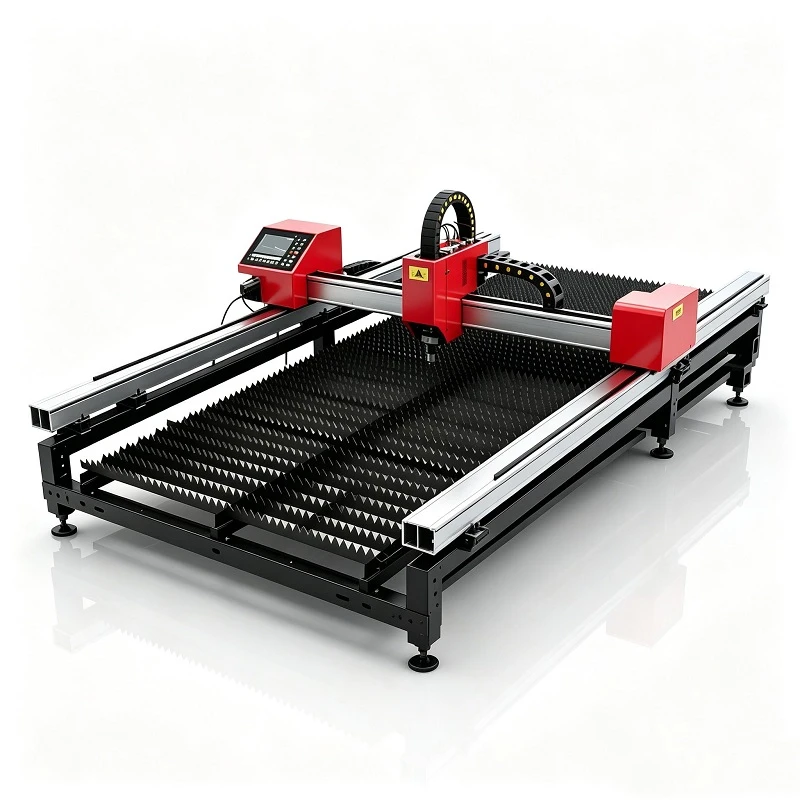

A Mini Metal Laser Cutting Machine is a compact fiber laser system designed for small workshops, garages, and businesses taking their first step into laser cutting. It uses the same core technology as full-size industrial machines-a solid-state fiber laser that generates a focused beam to cut through metal-but packed into a footprint that doesn't require a factory to house it.

Serial Number	Technical Project	Parameters	Remarks
01	Rail length	3500mm
02	Rail center distance	2000mm
03	Effective cutting range	1500mm x 3000mm
04	Z-axis travel	90mm
05	Maximum speed	7000mm/min
06	Repeatability positioning accuracy	±0.1mm
07	Position accuracy	±0.3mm
08	Laser generator power	1500W/2000W/3000W

key arrangements

Laser generator	1500W/2000W/3000W	MAX / Raycus
Control system	L5210H	Fangling
Laser cutting head	LCN03A/LCS03C	OSPRI

How We Construct Our Machines

We've been manufacturing CNC cutting equipment since 2014, starting with portable cutters, then moving to gantry machines, and finally lasers. Here's a look at our building process:

1. Steel Delivery: We receive steel and meticulously check its dimensions and material grade.

2. Frame Welding: The bed and gantry are welded in specialized jigs to ensure perfect alignment.

3. Stress Relief: Every welded frame undergoes heat treatment. Skipping this step can lead to the bed shifting over time due to residual stress release, resulting in inconsistent cuts months down the line.

4. Machining: Essential surfaces and guide rail beds are machined to precise tolerances.

5. Assembly: We install the mechanical, electrical, and optical systems, incorporating top-tier components from brands like Max or Raycus lasers, Ospri cutting heads, and Fangling control systems.

6. Laser Alignment: The beam path is carefully aligned, and the cutting head is calibrated.

7. Rigorous Testing: Each machine is thoroughly tested before shipping. Motion systems are run at full speed and travel. The laser operates at its rated power. We cut various metal thicknesses, assessing edge quality, measuring dimensions, and verifying accuracy. Any machine that doesn't meet our standards doesn't ship.

8. Packaging & Shipping: Machines are documented, crated, and prepared for dispatch.

Cutting effect demonstration

Mini Metal Laser Cutting Machine: Common Applications

Small fabrication shops are the biggest users, cutting things like brackets, panels, and structural pieces.
Sign shops use it to cut metal letters, logos, and decorative panels.
Automotive and custom vehicle builders find it useful for cutting chassis components, brackets, and custom parts.
For farm equipment repair, it's used to cut replacement parts from steel plate.
Machine shops utilize it to cut blanks before machining.
Job shops and those doing prototype work rely on it for short runs and custom parts where quick turnaround is essential.
It's also a great option for shops with limited space, thanks to its compact size and split-body design.
