Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of small gantry cnc cutter in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

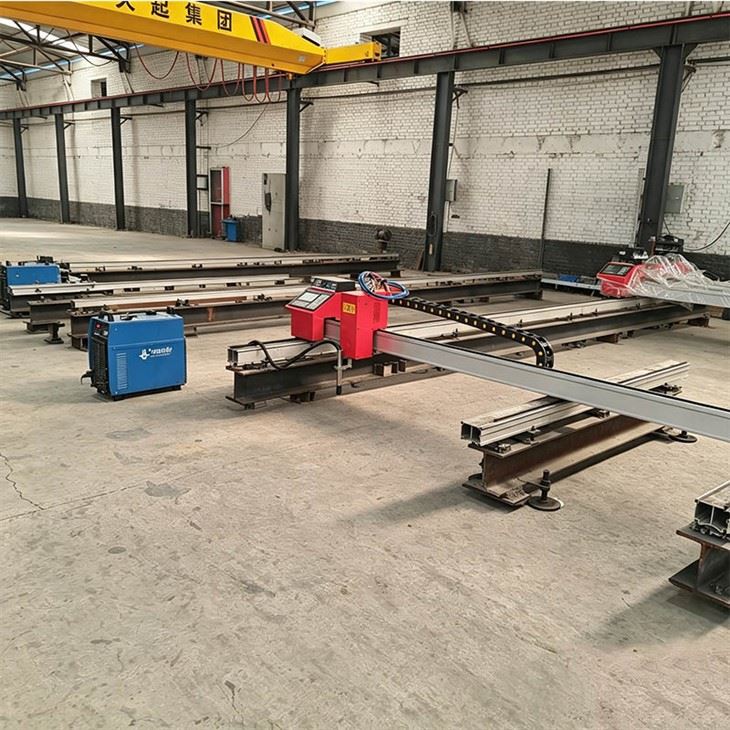

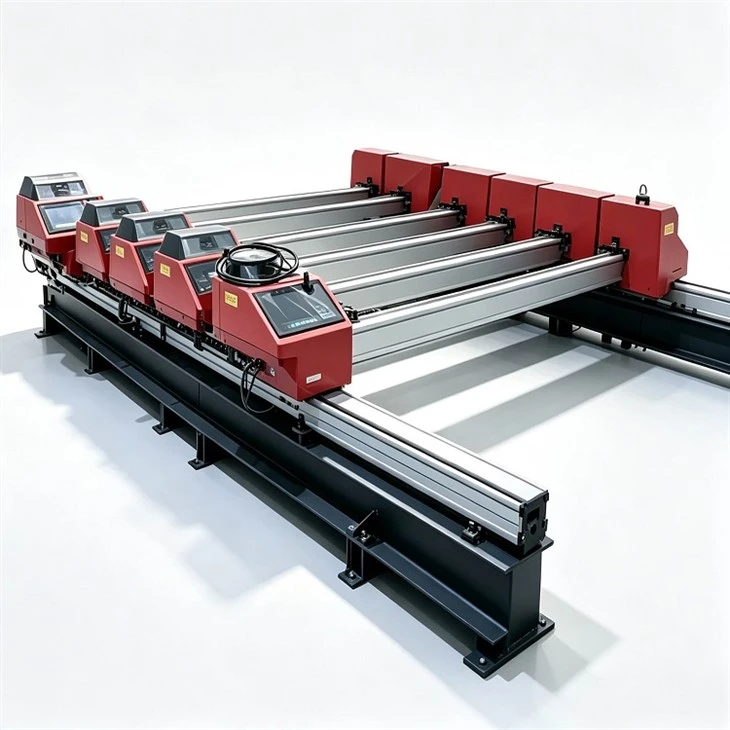

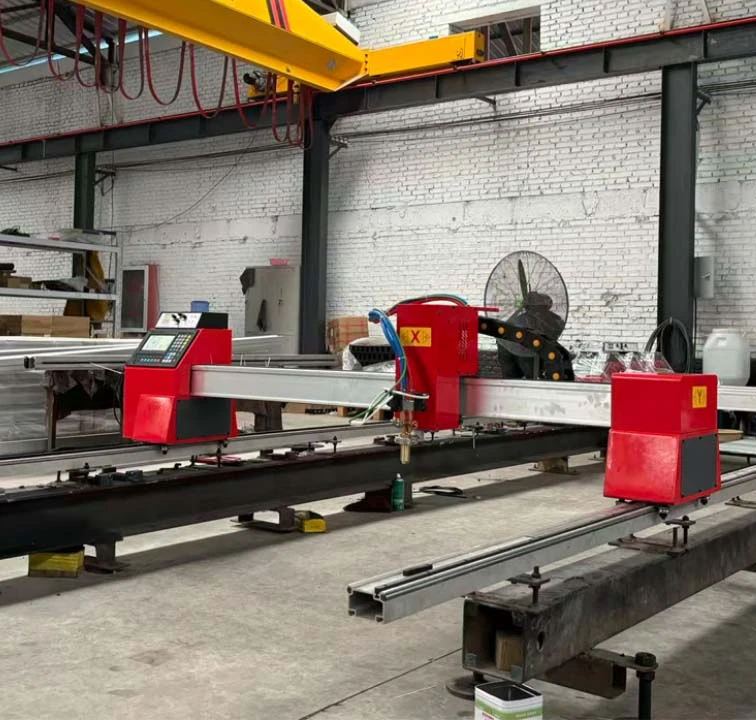

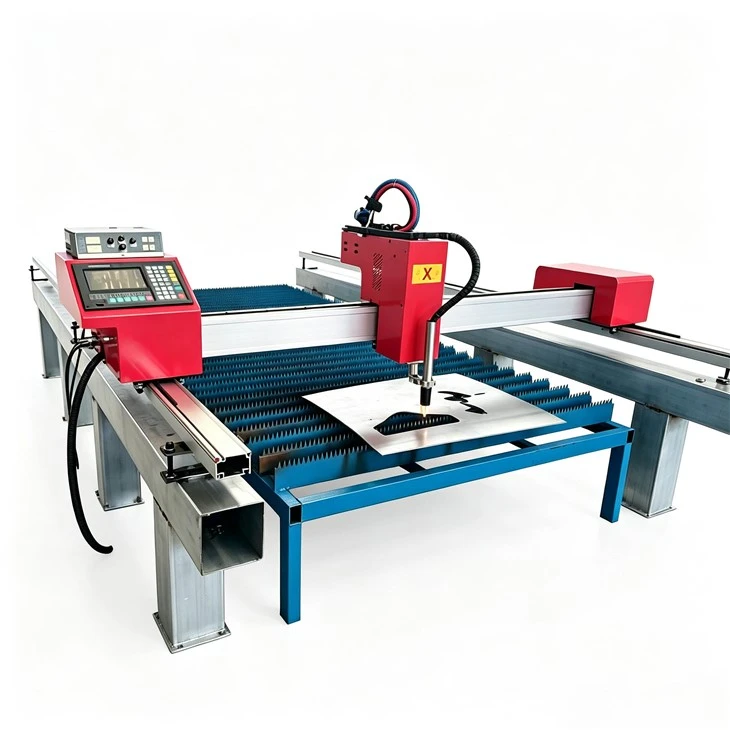

A small gantry CNC cutter is a compact, computer-controlled thermal cutting system designed for workshops with limited space and budgets that still require gantry-style cutting capability. The machine features an overhead bridge-the gantry-that moves across an integrated cutting table, carrying a plasma torch along programmed paths. Unlike full-size gantry systems that occupy 10-15 square meters, a small gantry typically fits in about 2-3 square meters while handling sheet sizes from 1000×1500mm up to 1300×2500mm.
The key difference between a small gantry and a full-size system isn't just the footprint-it's the accessibility. These machines are designed to be user-friendly, easier to install, and significantly more affordable, making CNC cutting technology accessible to small shops, maker spaces, and hobbyists who would otherwise be priced out of the market.
Installation and Setup
Small gantry CNC cutters are designed for easy setup.
Unpack and inspect – Check for shipping damage. Verify all components are present: frame, gantry, rails, torch, controller, cables.
Assemble the frame – Most small systems use bolt-together construction. Follow the assembly instructions. Some systems come pre-assembled.
Install the rails – Mount the rails to the frame. Ensure they're parallel and level. Even a small misalignment causes the gantry to bind.
Mount the gantry – Place the gantry on the rails. Adjust the wheel tension if needed. The gantry should move smoothly without binding.

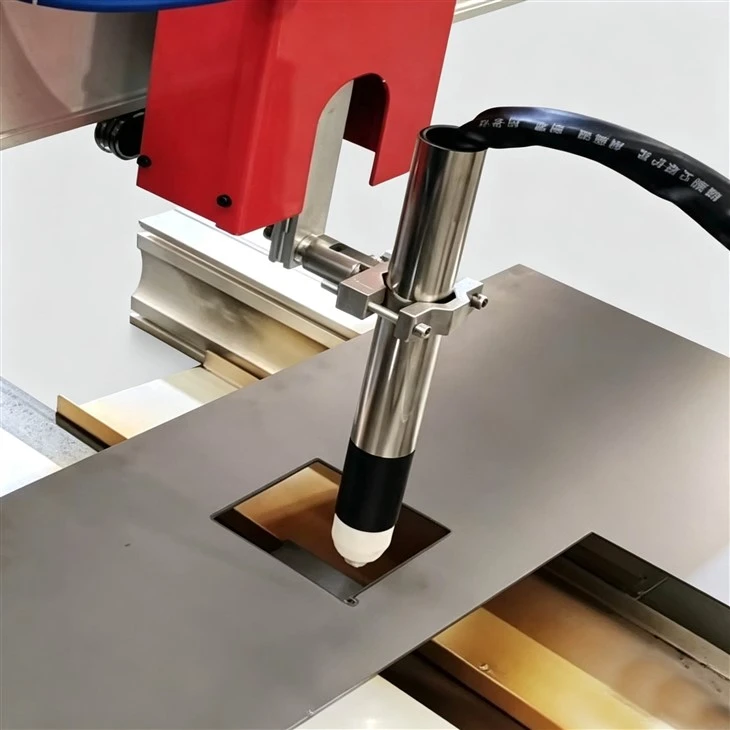

Connect the torch – Mount the torch on the torch carriage. Connect the torch cable to the plasma source. Connect the ground clamp.
Install the software – Load the control software on your computer. Connect the controller via USB.
Calibrate – Run the calibration routine. Check the axis movement. Verify the torch fires correctly.
Test cut – Run a test cut on scrap material before starting production work.
Time from delivery to first cut – Typically 3-8 hours.
Where a Small Gantry Shines
Garage workshops: Perfect for cutting parts in a garage, a small gantry fits where a larger system won't. You can easily move it out of the way and store it against a wall.
Hobbyist and maker spaces: Schools, maker spaces, and hobbyist workshops find these machines great for learning, creating prototypes, and small-batch production.
Small fabrication shops: If you run a one-person shop with limited room, a small gantry offers CNC power without the big footprint of a full-size setup.
R&D and prototyping: Engineering teams use small gantries to cut prototype parts, keeping production machines free.
What's the catch? Their lighter build can lead to more vibration during fast cuts, and stepper motors might lose steps, reducing accuracy. However, for most small shop needs, the accuracy is usually sufficient.
This is a story about a friend who started a small metal fabrication business from his garage. At first, he was cutting parts by hand with a plasma torch, which meant marking them out, cutting manually, and a lot of grinding. Really detailed designs were tough to manage. He realized a CNC cutter was the way to go, but a big one wasn't an option because of space and money. So, he bought a small gantry CNC cutter with a 1000x1500mm cutting area and a 40A plasma. He put it on wheels so he could easily move it for work and then stash it against the wall. Amazingly, the cutter paid for itself in under six months. He could finally take on jobs he'd turned down before, ones with tricky shapes that were too hard to do by hand. The accuracy was more than enough for the brackets and custom parts his clients needed, and the cleaner cuts meant less finishing work. Three years later, he's in a proper workshop with a bigger machine. But he still has that first little gantry cutter – it's his mobile backup for jobs he does at other sites. It just goes to show how valuable these machines are; they're ideal for new businesses and still useful even when you get a bigger setup.
Common Problem
Is a small gantry CNC cutter accurate enough for production work?

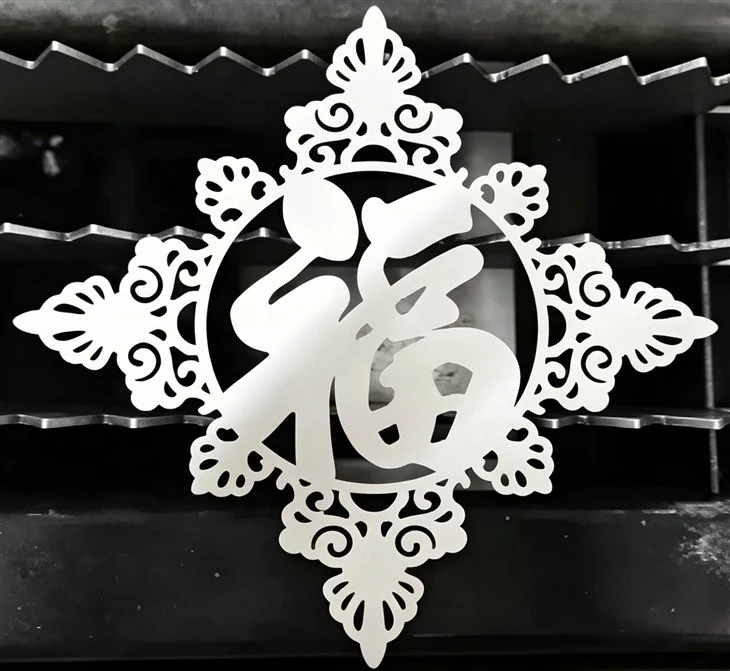

For light fabrication and prototype work, yes. Positioning accuracy is typically ±0.3-0.5mm. This is adequate for brackets, custom parts, and art pieces.
What kind of training is provided?
Our technicians provide remote training covering basic operation, setup, daily inspections, parameter adjustment, and troubleshooting. We also provide detailed manuals and video references. On-site training is available for an additional fee.
Does the machine require a special foundation?
No. Small gantry systems are light enough to be installed on a level workshop floor. No special foundation is required. Level the machine using the adjustable feet.
Can I cut stainless steel and aluminum with this machine?
Yes, stainless steel and aluminum cut well with plasma. Gas selection matters-dry, clean air works for most applications. Nitrogen or argon-hydrogen mixtures give better edge quality but require additional gas equipment. Thickness capability is slightly lower than mild steel.
