General View

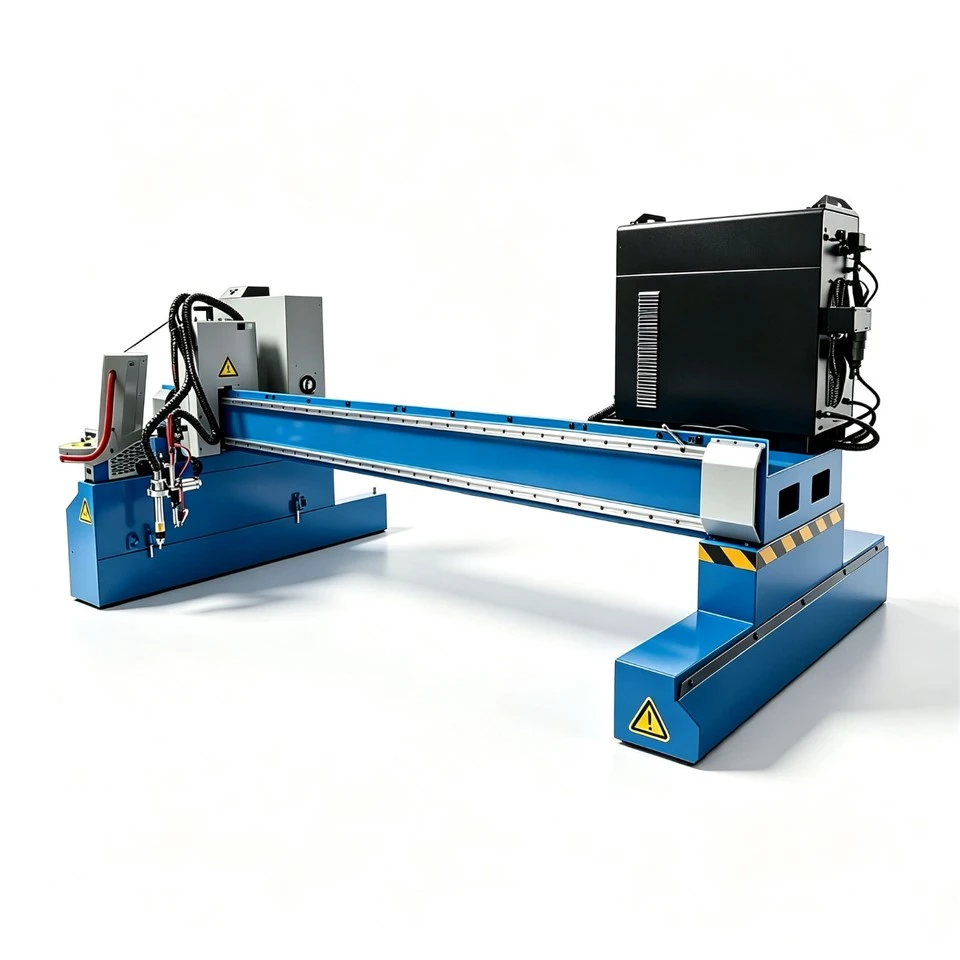

An 8030 heavy duty CNC plasma cutting machine is a large-format industrial cutting system with an 8000mm x 3000mm cutting area, purpose-built for fabricators who need to process massive steel plates day in and day out. This isn't just a bigger cutting table-it's a heavy-duty production tool designed for shipyards, structural steel fabricators, and heavy equipment manufacturers who can't afford downtime or inconsistent cuts. At Juliang, we've supplied these large-format systems to facilities across North America, Europe, and Southeast Asia, and the feedback is consistent: when you need to cut thick steel fast and accurately, this machine delivers.

Core Components

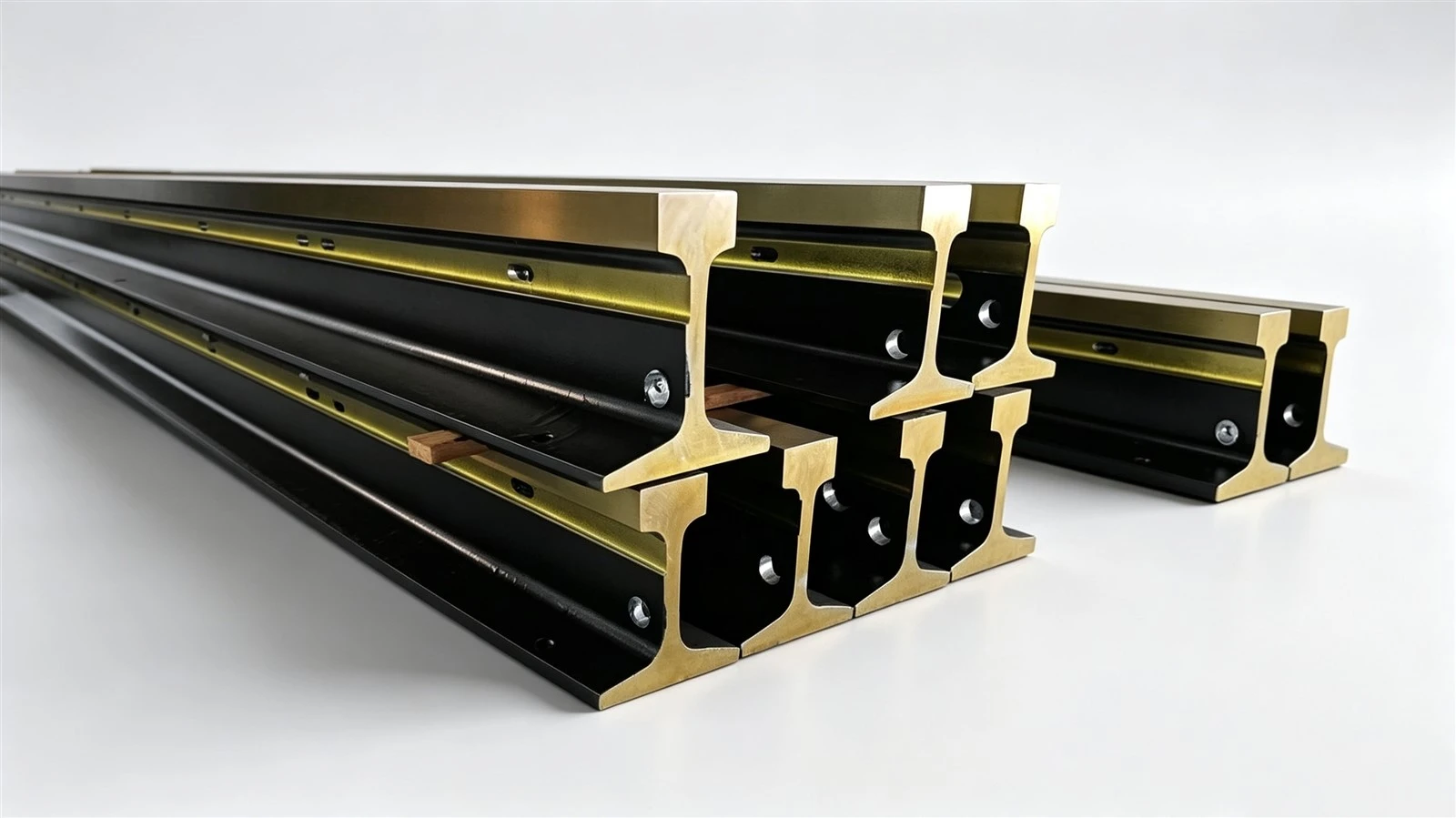

Heavy-duty guide rails

This 8030 Heavy Duty CNC Plasma Cutting Machine adopts national standard heavy-duty 24kg grade guide rails. The tracks undergo high-strength heat treatment process, significantly enhancing the surface hardness and wear resistance, enabling them to withstand the long-term repeated rolling of heavy plates without deformation. All guide rails are precisely ground by high-precision guide rail grinding machines to ensure a straightness and surface finish at the micron level. This combination ensures that the equipment maintains excellent positioning accuracy during high-speed operation, with smooth movement and low noise, and has a service life far exceeding that of ordinary light-duty guide rails.

High-precision transmission

The transmission system adopts a precise gear-rack meshing structure, combined with a stable guiding mechanism composed of a shaft and V-type bearings, to achieve gap-free transmission. The gears and racks have undergone quenching and precise grinding processing, ensuring tight meshing and high transmission efficiency. They can efficiently convert the power of the servo motor into the linear motion of the cutting torch. The shaft and V-type bearings work together, with low running resistance, low friction coefficient, and excellent dust-proof and self-lubrication properties. They can maintain stable repetitive positioning accuracy even after long-term use.

Wide-body box-type beam

The beam adopts a wide-body box-type structural design. It is based on a large-section high-strength steel as the main framework, and multiple strengthening ribs are set inside for reinforcement. This design significantly enhances the beam's bending and torsion resistance. Even when spanning a worktable surface several meters wide, it remains rigid and stable under high-speed operation and heavy-load cutting conditions, and is less likely to undergo deflection deformation. Compared to ordinary I-beams or square tube beams, the box-type structure has higher resistance to deformation and vibration suppression performance. Structurally, it ensures the long-term stability and precision of the entire machine.

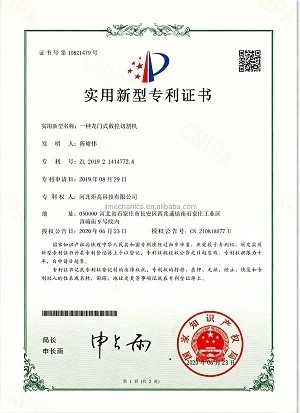

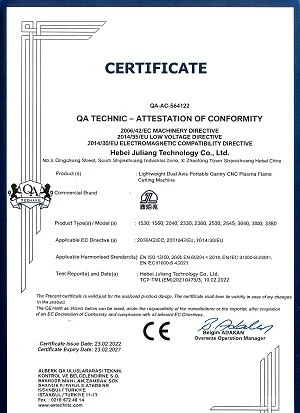

Certificate Display

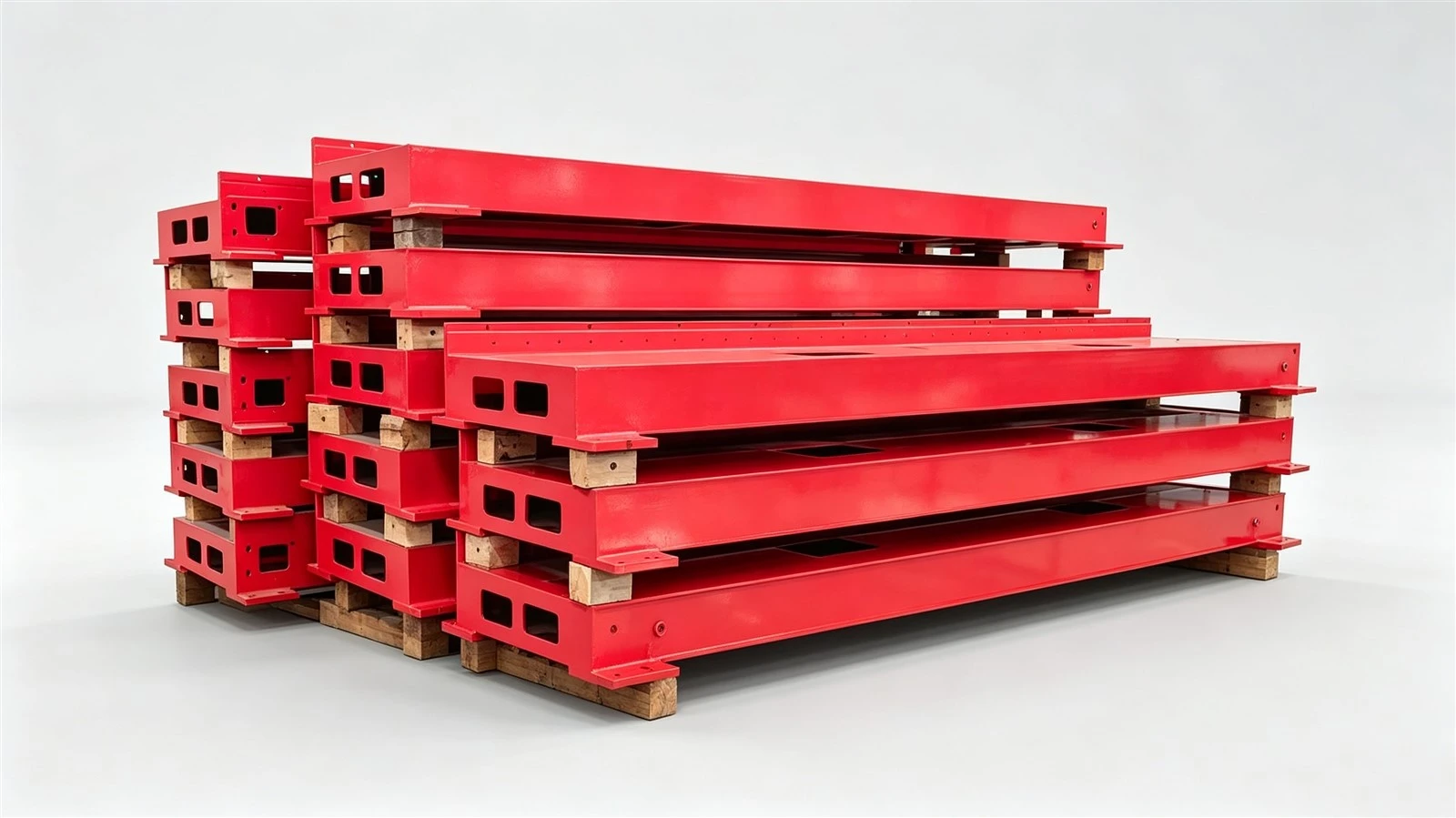

High Purity Steel

Premium Materials & Robust Construction For Extended Service Life

When you're cutting plates across an 8000mm span, the machine has to be rock-solid. A light-duty gantry will flex, vibrate, and lose accuracy-especially during high-speed plasma cutting on thick material. That's exactly why we built this machine the way we did.

The frame is constructed from heavy-gauge welded steel and goes through a full stress-relief annealing process after fabrication. This eliminates residual stresses from welding and ensures the bed stays flat over years of use. Skip this step, and the machine will warp under its own weight and the thermal loads of continuous cutting.

The wide box-type beam uses high-strength steel with a large cross-section design and multiple internal reinforcement ribs. This provides exceptional bending and torsional resistance-critical when you're spanning 8 meters between supports. The beam stays rigid even during high-speed traverses and heavy cutting loads.

The heavy-duty rail system uses national standard 24kg rails with high-strength heat treatment and precision grinding on rail grinders. This delivers the durability to withstand heavy plate loading and years of high-speed operation without deformation. ESAB's Suprarex PRO, a comparable heavy-duty system, similarly emphasizes reinforced fabricated beams and heavy-duty crane rails for long service life.

The high-precision transmission system combines precision gear-rack engagement with smooth guidance from optical shafts and V-bearing assemblies. This eliminates backlash and ensures accurate positioning even under heavy cutting loads.

The worktable uses a heavy-duty slatted support system with individually replaceable hardened steel bars. When a bar gets damaged from a heavy plate drop or a misaligned pierce, you swap that single bar-not the whole section. The slats are heat-treated to resist warping from the concentrated heat of plasma cutting.

The gantry itself is cast iron with extensive ribbed reinforcement. Dual-drive AC servo motors on the Y-axis provide synchronized movement across the full 8-meter length. The X and Y axes both use precision ground linear guide rails pre-loaded to eliminate backlash.

Complete Product Information

Who actually needs an 8000mm x 3000mm machine-what kind of work justifies this size?

If you're regularly processing full-size plates over 6 meters-shipbuilding panels, wind tower sections, structural steel beams-this is your machine. It also makes sense for high-volume production, because you can nest multiple smaller parts across the whole 8000mm table, reducing sheet handling and setups dramatically. Most 8030 buyers are processing at least 12mm plate on a regular basis and need the capacity to handle oversize material.

What makes the 8030 "heavy duty" compared to smaller models?

The heavy-duty designation comes from several factors: the wide box-type beam with internal reinforcement, 24kg heat-treated rails, heavier gauge steel construction, more powerful drive motors, and a more robust gantry. These features allow the machine to handle heavier plate loads, run longer hours, and maintain accuracy over a larger cutting area. ESAB's Suprarex PRO similarly uses reinforced fabricated beams and heavy-duty crane rails for long service life in demanding applications.

What's the installation process like-do I need a special foundation?

It's a ground-mount design, so no deep foundation is required. However, because of the machine's size and weight (approximately 10,000-14,000kg), you do need a level, reinforced concrete floor capable of supporting the load. We provide detailed anchor bolt patterns and load requirements. Installation typically takes 4 to 6 days for assembly, followed by remote commissioning.

How does plasma cutting compare to oxy-fuel for thick plate on this 8030 Heavy Duty CNC Plasma Cutting Machine?

Plasma is faster and cuts a wider range of materials (stainless, aluminum, copper, galvanized), but it's generally limited to about 40mm in production environments. Oxy-fuel (flame) is slower but can handle up to 200mm on mild steel. The 8030 machine supports both processes-you can switch the torch between plasma and flame depending on the job. Use plasma for speed and versatility, and flame for extreme thickness. ESAB's Suprarex PRO, for example, supports up to 12 oxy-fuel torch stations and plasma cutting up to 75mm.

Ready for a Machine That Handles the Biggest Jobs?

We know that stepping up to an 8000mm x 3000mm machine is a major decision. That's why we keep it straightforward-clear specifications, honest recommendations, and no pressure. Reach out to our sales team for a custom application review, sample cuts on your material, or to arrange a factory video tour.
