What Is a Single Platform Fiber Laser Cutting Machine?

A single-platform fiber laser cutting machine features a fixed worktable. You place the material on the table, the machine performs the cut, and then you remove the completed parts, all from the same spot. This differs from an exchange table system, which has two alternating pallets. Our single-platform machines eliminate the need for moving platforms, transfer mechanisms, and additional motors that require synchronization.

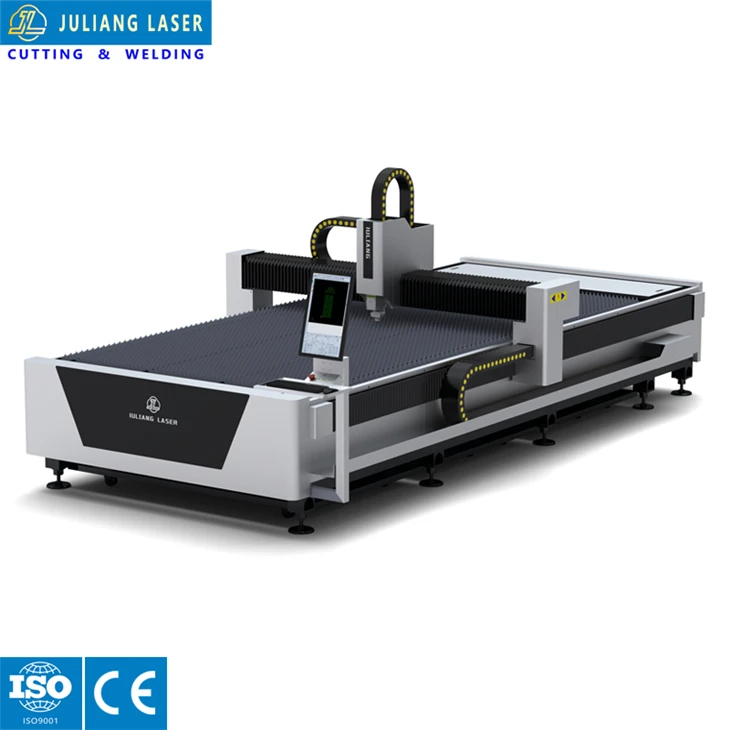

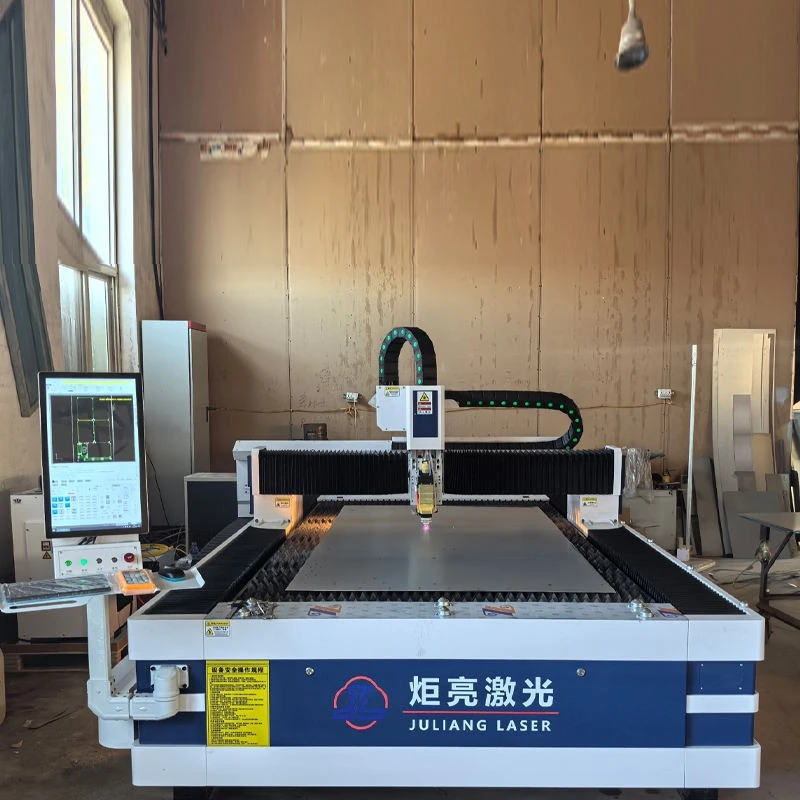

What you're seeing is one of our standard models, which we've been sending out to businesses like yours for the last few years. It's 4210mm long, 2330mm wide, and 1760mm high. This size is comparable to a large SUV, so it should fit into most workshops without needing any extra space or building modifications.

application scenarios

The applications are more extensive than you might initially imagine.

Sheet Metal Fabrication: This includes items like brackets, enclosures, panels, and frames, serving any shop that works with flat metal sheets.
Automotive Manufacturing: Think chassis components, suspension brackets, and exhaust flanges, where precision and repeatability are key.
Construction and Steel Structures: For gussets, base plates, and connection plates, clean cuts reduce the need for grinding before welding.
Shipbuilding: Components for hulls and other structural parts.
Kitchen Equipment: Such as stainless steel countertops, shelving, and commercial kitchen components.
Fitness Equipment: Frame components and structural parts.

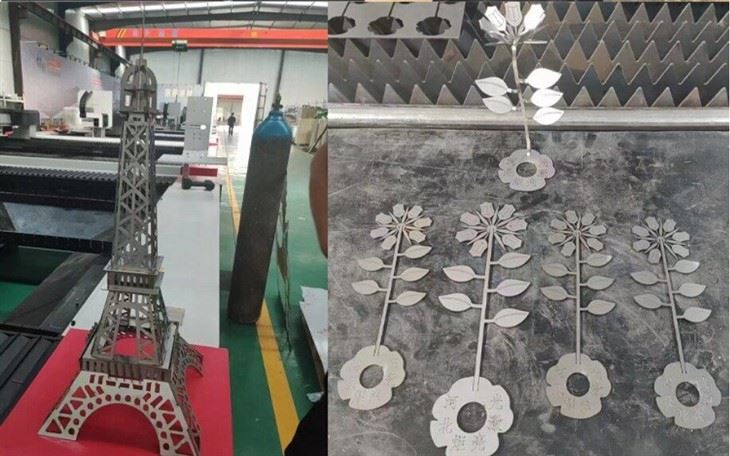

Advertising and Signage: Ideal for intricate shapes, lettering, and architectural panels.

One of our clients runs a job shop that handles everything from agricultural equipment parts to decorative metal signs. Their single platform machine manages this diversity efficiently, without the hassle of an exchange system. They shared, "We aren't a production line; we're a fabrication shop. This machine perfectly matches our workflow."

Key Features That Actually Matter

High cutting precision

Positioning accuracy of ±0.1mm and repeat positioning accuracy of ±0.5mm. At that level, your cut parts go straight to assembly – no grinding, no rework, no re-measuring.

Fast cutting speed

Maximum positioning speed of 120 m/min and acceleration of 1.5G. About twice the cutting speed of CO₂ laser machines or plasma cutting machines.

Stable machine structure

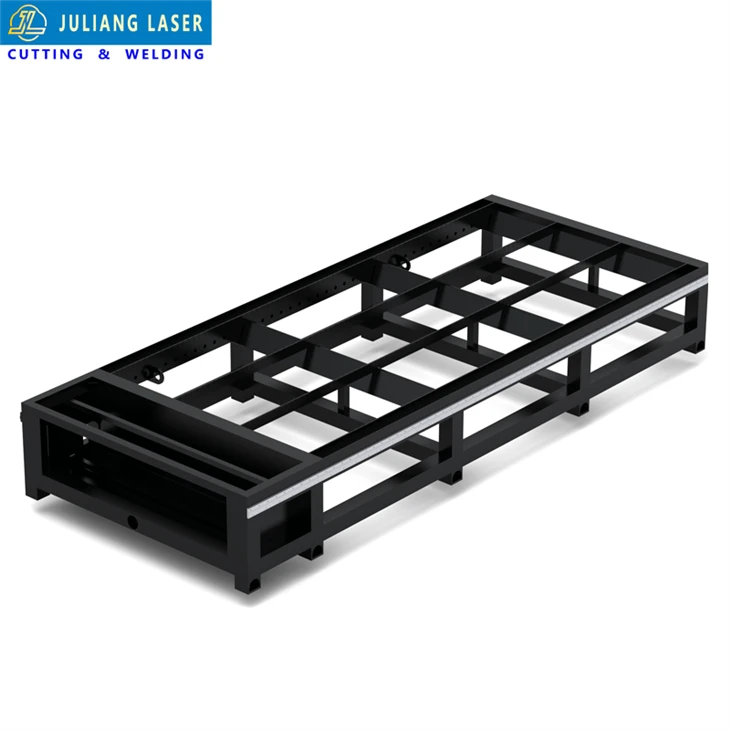

The beam body uses an integrated tensile beam design. The bed frame goes through stress relief to prevent warping over time – a detail that separates machines that hold accuracy for years from ones that drift after six months.

Compact footprint with practical dimensions

The machine measures 4210mm long × 2330mm wide × 1760mm high. This is a manageable size for most fabrication shops. We've seen customers slide these into tight spaces where larger machines simply wouldn't fit. The 1760mm height puts the control panel and working area at a comfortable position for operators – you're not reaching up or bending down all day.

Intelligent CNC control system

Easy operation with streamlined setup. The software supports intelligent nesting and one-click CAD import.

Energy-efficient fiber laser source

Higher electro-optical conversion efficiency compared to CO₂ lasers. Lower power consumption means lower operating costs.

credential

shanghai

FAQ

What's the difference between a single platform and an exchange table laser cutter?

A single platform has one fixed table – you load, cut, and unload on the same surface, and the machine stops during material handling. An exchange table has two alternating tables – one cuts while the other is loaded or unloaded, swapping in about 10–15 seconds.

What's the typical installation timeline?

From delivery to production, about 25 to 40 working days. Mechanical positioning takes about a day. Electrical and gas connections take another day. Test cutting and parameter tuning take the rest.

What's the machine footprint?

The machine measures 4210mm long × 2330mm wide × 1760mm high. You'll need about a meter of clearance on each side for maintenance access, plus space for the chiller and control cabinet.

What maintenance does a single platform fiber laser require?

Daily: check the protective lens and nozzle for contamination or wear. Weekly: check coolant levels and air filters. Monthly: inspect guide rails and drive systems.
