What a Laser Cutter Really Does to a Shop

When I step into a fabrication shop, the very first thing that catches my eye isn't the machinery. It's the floor.

A shop equipped with a laser cutter boasts a clean floor – free of metal shavings, grinding dust, and stacks of unfinished pieces awaiting further processing. Conversely, a shop lacking one often has a floor littered with saw chips, grinder dust, and parts needing deburring before they can move to the next stage.

A laser cutting machine fundamentally alters a shop's operations. It impacts the workspace, the workflow, and even the roles of the staff. It's not merely about faster metal cutting; it redefines everything that follows.

implicit cost

Making a bad cut is more expensive than you might think. It's not just about the material you throw away; it's also the labor for grinding, the time to fix the part, and the workflow delays it causes.

Let's break down these hidden costs:

Grinding Expenses: Plasma cutting leaves a rough edge, and oxy-fuel is even rougher, both requiring grinding before welding. Laser cutting, on the other hand, yields a clean edge that needs no grinding. If your shop uses plasma, grinding can take up 15-25% of your total production time. With a laser, this cost is practically non-existent.

Rework Time: When a part isn't right, it needs rework. Operators have to cut a new piece or grind the current one, and this time adds up quickly. Manual cutting can lead to rework adding 10-15% to your total labor hours. For laser users, rework drops to under 1%.

Material Waste: This is the cost that often slips through the cracks. Manual cuts have a wider kerf, typically 3-5mm, compared to laser's 0.3-2mm. This difference means an extra meter of material wasted per shift over 100 cuts. With 10mm steel, that's about 5kg of scrap daily, accumulating to over a ton of wasted material per year.

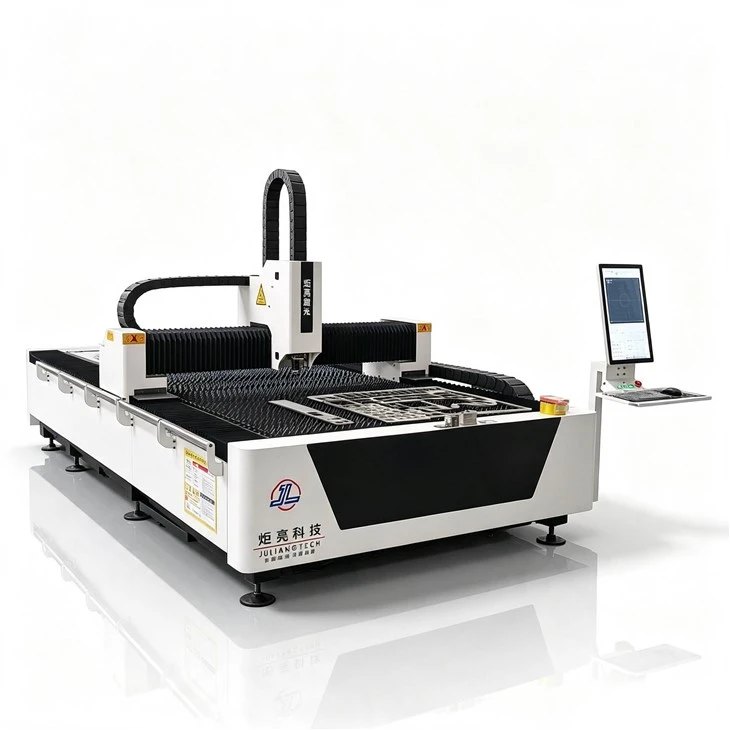

What Makes a Laser Cutter Good

The machine itself is straightforward. The beam cuts the metal. The quality comes from the details.

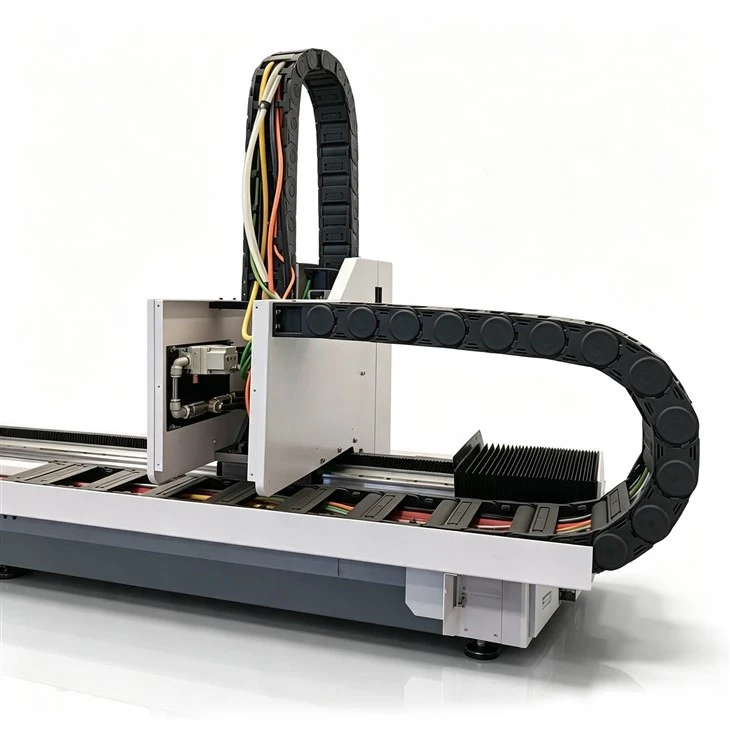

The frame - A well-built frame doesn't flex. It holds the gantry square to the bed. On a 3-meter bed, even a fraction of a millimeter of flex shows up as errors. Look for stress-relieved frames. They stay straight longer.

The drive system - The gantry needs to move smoothly and stop accurately. Rack-and-pinion drives with servo motors are standard. The quality is in the backlash-the play in the gears. Less backlash means more accuracy.

The cutting head - The head holds the focusing lens and the protective window. The window gets dirty. A clean window transmits the beam cleanly. A dirty window absorbs energy and can crack. The head should be easy to clean.

The control system - The operator needs to load the design, select the material, and start the cut. The system should be intuitive. One shop reported setup time dropping from 15 minutes to 30 seconds with a good control system.

Our Certificate

FAQ

What's the difference between a fiber laser and a CO₂ laser?

Fiber lasers are more energy-efficient-about 30-40% efficiency compared to about 10% for CO₂. They require no laser gas and almost no maintenance. The beam is delivered through a fiber optic cable, so there are no mirrors to align. Fiber lasers are also faster on thin to medium materials.

How long does it take to learn to operate a laser cutter?

About 1-2 weeks. The CNC controller is straightforward-load the CAD file, select the material and thickness, and start the cut. The main skill is understanding how different materials behave and adjusting parameters accordingly.

What maintenance does a laser cutting machine require?

Daily: check the protective lens and nozzle. Clean the lens with lens paper and alcohol. Weekly: check coolant levels and air filters. Monthly: inspect guide rails and drive systems. No mirrors to align, no laser gas to replace-maintenance is simpler than CO₂ lasers.

Can a laser cutting machine cut stainless steel and aluminum?

Yes. The machine handles carbon steel, stainless steel, aluminum, copper, and brass. Stainless requires nitrogen assist gas to prevent edge oxidation. Aluminum requires slightly different parameters due to its thermal conductivity.
