What Is a Flatbed Fiber Laser Cutting Machine?

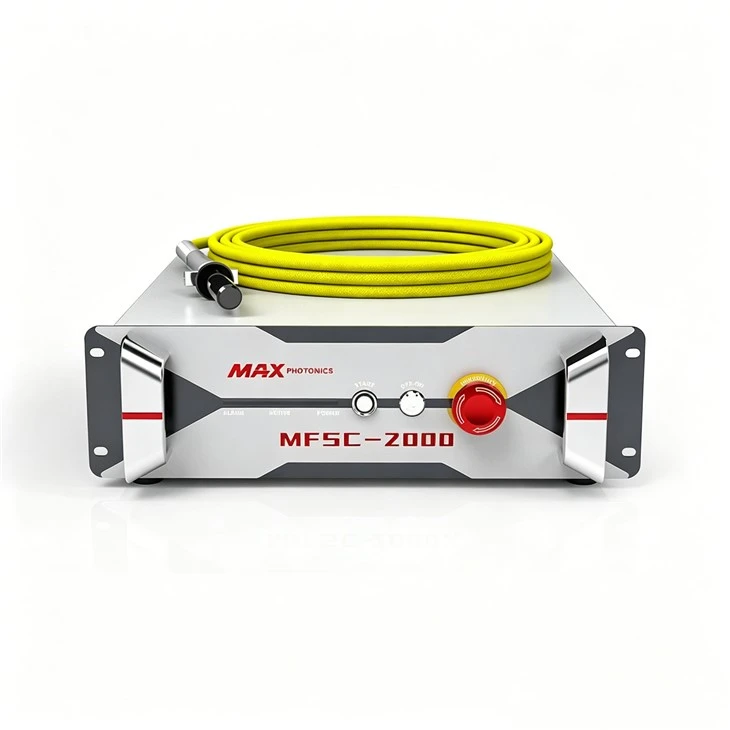

A flatbed fiber laser cutting machine is a CNC-controlled system designed to cut flat sheet materials using a high-power fiber laser beam. The laser is generated by a bank of diodes, amplified, and delivered to the cutting head through a flexible optical fiber. The focused beam melts and vaporizes the material along a programmed path, while assist gas-typically oxygen or nitrogen-blows the molten metal away, leaving a clean edge.
The "flatbed" part of the name refers to the work surface: a single, fixed table on which the sheet material rests during cutting. This is the most common configuration for sheet metal fabrication shops-straightforward, reliable, and cost-effective. Unlike exchange-table systems with dual pallets, a flatbed machine has one table. You load, the machine cuts, you unload.
What Makes a Well-Built Flatbed Machine?
The structure matters more than most people realize.
The bed – The machine frame is welded from structural steel, then goes through a full stress-relief cycle in a heat treatment oven. Skip this step, and the frame warps over time as residual welding stresses slowly release. We run a complete annealing process on every bed-12 hours of controlled heating and cooling. This is not a detail you see on every spec sheet, but it is the difference between a machine that holds accuracy for years and one that drifts after six months.
The gantry – The beam body uses lightweight aluminum extrusion, which reduces moving mass while maintaining rigidity. Lower mass means higher acceleration without sacrificing stiffness. The gantry rides on linear guide rails, driven by rack-and-pinion systems with precision reducers.

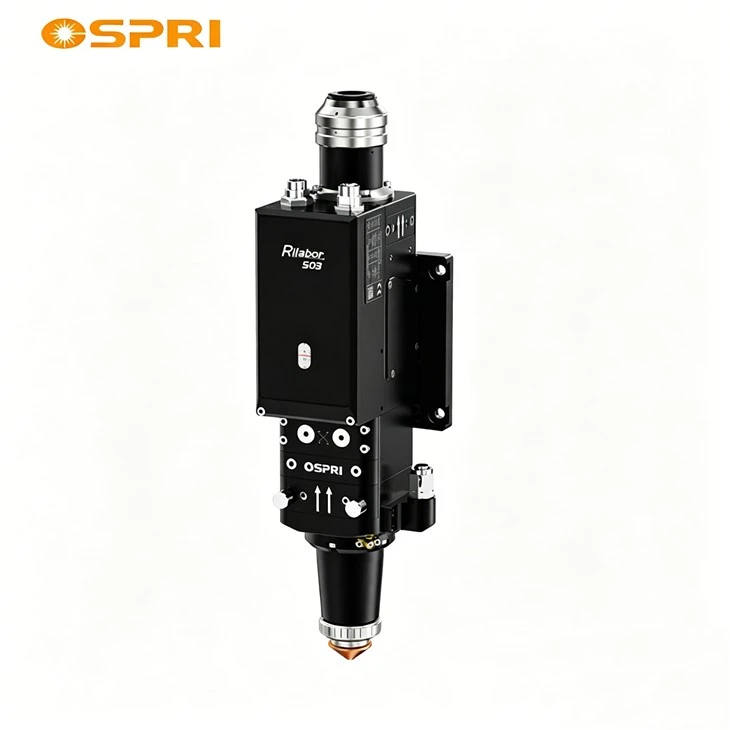

The cutting head – Automatic focus adjustment is standard on modern systems. The focus lens is driven by a linear motor, moving within a range to accommodate different material thicknesses. Anti-collision sensing stops the head before impact-the head is expensive, and one crash can cost more than the sensor.
The control cabinet – Industrial-grade air conditioning maintains a constant temperature for the electronics. Heat is the enemy of precision; thermal expansion affects everything.
Where Does This Machine Get Used?
The applications are broad. We see these machines in:
Sheet metal fabrication – Brackets, enclosures, panels, frames. Any shop processing flat metal sheets.
Automotive manufacturing – Chassis components, suspension brackets, exhaust flanges. Precision and repeatability matter.
Construction and steel structures – Gussets, base plates, connection plates. Clean cuts reduce grinding before welding.
Kitchen equipment – Stainless steel countertops, shelving, commercial kitchen components.
Fitness equipment – Frame components and structural parts.
Advertising and signage – Intricate shapes, lettering, architectural panels.
Case
Regarding a kitchen equipment manufacturer in Guangdong: They were previously outsourcing their stainless steel cutting, facing lead times of 3-5 days and inconsistent quality. After we installed a 6kW flatbed laser machine, set up for stainless steel with nitrogen assist, they now handle all their cutting internally. The shop manager shared, "We've gone from waiting days for parts to cutting them in mere minutes."
FAQ
It is a CNC system that uses a fiber laser beam to cut flat sheet metal. The beam melts the material along a programmed path, and assist gas removes the molten metal. It is the standard configuration for sheet metal fabrication.
3 to 5 working days from delivery. Mechanical positioning takes about a day, electrical and gas connections another day, and test cutting with parameter tuning takes the remainder.
Check the protective lens and nozzle daily. Clean the lens with lens paper and alcohol. Replace the nozzle when you see rough edges or excessive dross. Ceramic rings break first in a collision-keep spares on hand.
Underestimating the air quality requirement. Wet or contaminated assist gas damages optics and affects cut quality. A refrigerated air dryer and proper filtration are essential investments.
