Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of cnc gantry plasma cutting machine for metal pipe plate in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

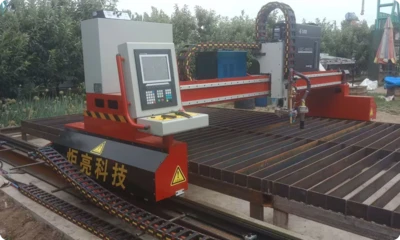

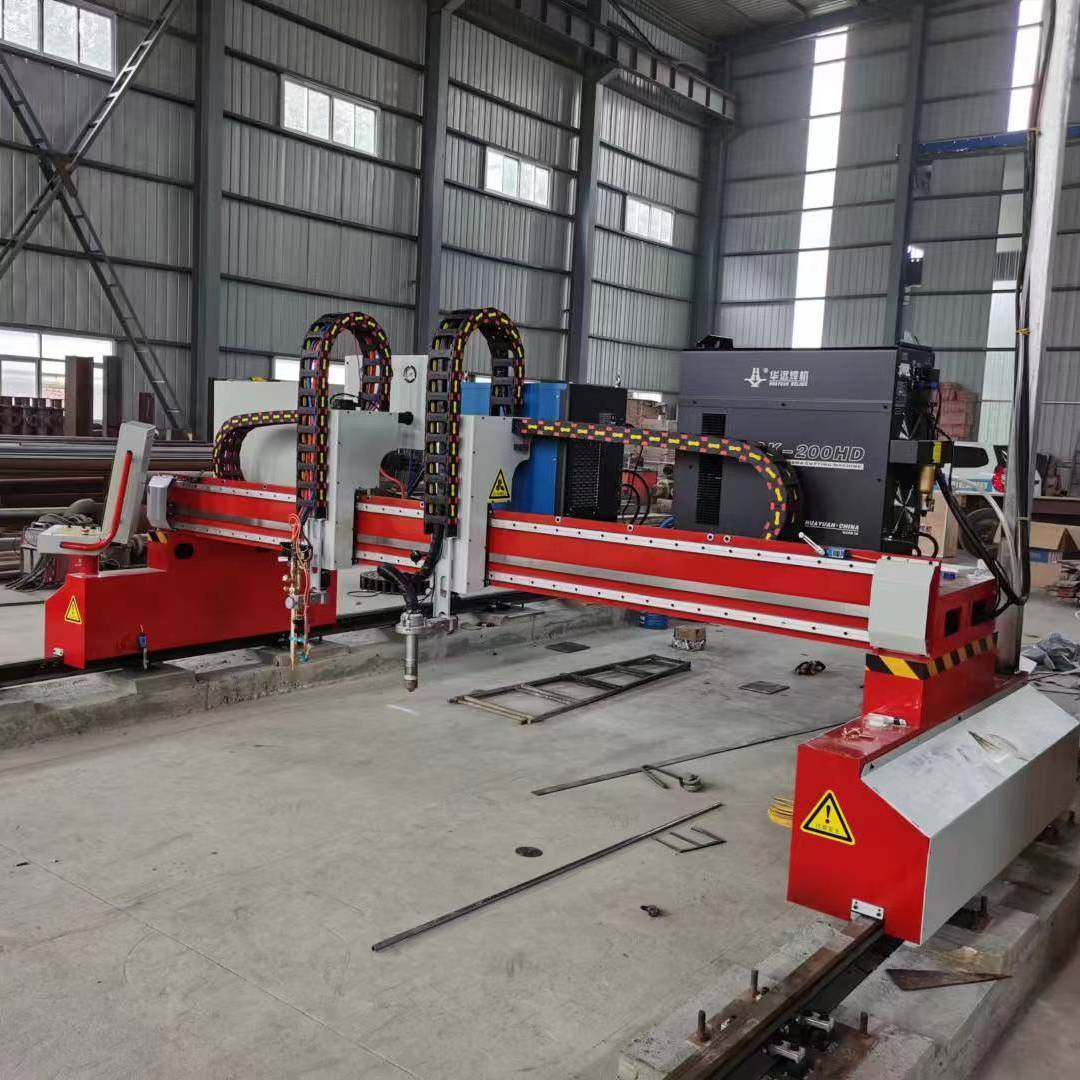

Our high-precision gantry CNC cutter delivers consistent clean cuts thanks to finely machined beams and guide rails that keep movement steady and dimensional deviations minimal. It works with both flame and plasma cutting: flame produces straight vertical edges on thick carbon steel, while plasma leaves smooth burr-free surfaces on thin sheets to cut down grinding work.

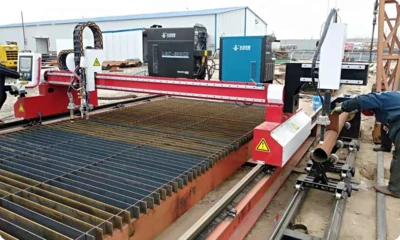

The onboard CNC system handles intricate profiles, cutouts and bevel tasks automatically. Built-in auto piercing, anti-collision safeguards and resume-cut functions drastically lower scrap rates. Its sturdy shock-proof frame holds up to nonstop daily workshop use. Fit a rotary chuck, and the machine can fabricate complex pipe intersects for pipeline jobs.

This equipment fits steel structure and machinery factories with strict precision demands. Reliable finished quality slashes secondary finishing steps, speeds up full production cycles and elevates overall part consistency.

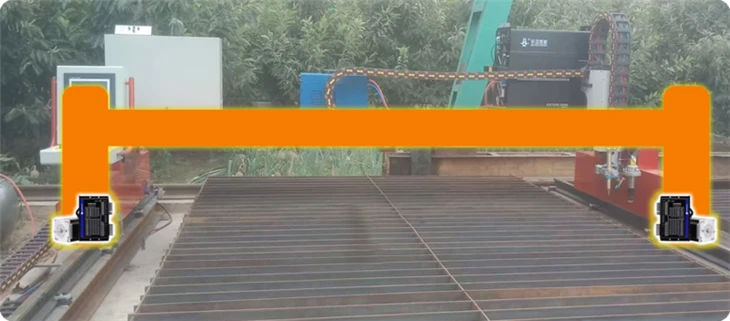

Our main beam is welded from 7mm standard carbon steel plates, thicker than the 4–5mm thin frames common on cheap alternatives. Each welded frame gets full high-temperature stress relief to remove internal welding strain, so it won't warp after years of eight-hour daily cutting runs. This stiff gantry maintains steady positioning precision at high moving speeds, unlike flimsy portable cutters, and works reliably for heavy steel workshops that process thick carbon steel daily.

Rack-and-pinion servo drives and hardened linear guides power the X and Y axes, fully calibrated before shipment. The CNC nesting software stores preloaded pipe intersection templates, removing tedious manual programming for tees and elbows. Our Eastern European clients report dimensional errors under ±0.04mm per meter. Clean cut edges cut grinding workload by more than half and streamline later welding assembly.

All wear parts like plasma nozzles, electrodes and rail grease are standard off-the-shelf items, easy to source locally at low cost. Fitted with SMC proportional valves, the air circuit holds stable gas pressure and rarely needs replacement over three years of regular operation. The control cabinet uses fully sealed dustproof CHINT electrical parts; just blow dust out weekly to prevent short circuits, and no full-time maintenance staff is required for daily checks.

Flame cutting handles 10–180mm thick carbon steel with restrained gas use, while plasma delivers quicker cuts on thin stainless steel and aluminum. We reworked the internal power circuit to cut idle power loss when switching cutting torches. Factory owners working daily shifts told us their monthly power bills fell significantly after switching to this two-process cutter. Instead of purchasing separate machines for different metals, this dual-function setup also boosts overall equipment utilization.

We pre-assemble most key components in our Shijiazhuang plant. On-site installation only involves basic bolt assembly for the gantry beam and pipe rotary jig. We supply printed illustrated guides and complete installation videos, plus free 24-hour remote video support from our overseas engineering team. Most customers can finish full assembly and test cutting within three hours without hiring professional mechanical fitters.

Mr. Wang mainly engages in pipeline steel structure engineering. He not only needs to cut the steel plates but also handle a large number of pipe intersections. In the past, pipe fittings were cut by hand using templates, resulting in large dimensional errors and uneven product quality. There were often situations where the assembly did not match, and the rework costs were extremely high. After being recommended by colleagues, he purchased the Jueliang gantry pipe plate integrated cutting machine.
The machine comes with a rotating tool for pipe materials, and the cutting of steel plates and the opening of round pipes are completed in one step. By importing the pipe fitting drawings, it automatically completes the cutting of complex intersection lines. The cutting edges of the pipe fittings are precise, and the assembly matching degree has significantly improved, and the rework situation has significantly decreased. The machine runs smoothly, the transmission components are durable, and it is suitable for high-intensity operations in the workshop. Employees can get started easily after a brief training, reducing the reliance on senior technicians. The intelligent layout function reduces the waste of steel plates and pipe materials, and the raw material costs are controlled. After the equipment is put into use, the product quality is recognized by customers, and many large-scale engineering projects have been received. The cost savings from rework and labor costs have been recovered by the equipment in just one year.

Factory Offline Quality Control Standards

Before any gantry cutting machine leaves our Shijiazhuang plant, it has to pass three separate mandatory test phases without exception. First, we run it non-stop for 24 hours under light load to check steady travel performance. Next comes a 48-hour full-power aging run, where we simulate real factory cutting loads to spot hidden stability flaws. The last step is cutting physical pipe intersection samples, so our technicians can verify dimensional precision hands-on.

We log all test readings for every single machine and keep those records on file for three years. If any precision metric falls short of our internal standards, the whole unit gets taken apart, reworked and reassembled-we never ship out unqualified equipment to cut corners. Every cutting machine we produce carries official CE certification, which clears customs smoothly for clients importing to Southeast Asia, European nations and African regions.

independent questions

What's the core limitation of integrated pipe-plate gantry cutters compared with separate dedicated machines? This integrated unit balances space saving and multi-function, but its rotary chuck caps pipe diameter at 300mm by default. If you regularly process extra-large pipes above 500mm, a standalone dedicated pipe lathe will deliver better long-term stability.

Do new operators without professional CNC programming skills run this machine proficiently? The control system stores pre-set pipe intersect graphics and supports one-click DXF drawing import. Most workers master standard blanking operation after 4 hours of video training; no professional CNC programmer is required for daily regular orders.

Which industrial workshops gain the biggest efficiency lift from this integrated cutting equipment? Steel structure fabrication plants, pipeline engineering manufacturers, mining machinery parts workshops and construction metal frame processors benefit most from dual-purpose plate and pipe cutting functions.

What is the average service life of the servo drive system, and what warranty support do we provide for faults? With regular guide rail lubrication maintenance, servo motors run steadily for over 8 years. We supply free replacement drive parts within the 1-year full machine warranty, plus remote on-site installation guidance.

Can we customize the cutting table length or rotary pipe chuck size to fit special workshop layouts? We fully support customization: standard cutting working length can extend from 3m to 8m, and rotary chucks can be adjusted to hold pipes up to 500mm diameter with extra fees, delivery cycle extended 5–8 working days.

Honor and qualification

Hebei Juliang Technology is located in Gaocheng District, Shijiazhuang City. It is a high-tech and specialized enterprise integrating the research, production and sales of CNC cutting and laser welding equipment. With over ten years of deep involvement in the metal cutting industry, the company officially registered its brand in 2018. After three expansions of its factory site, it has now established a standardized production industrial park. The factory is equipped with complete machine frame welding, precision machining, complete assembly and aging testing workshops. It has fully produced more than twenty models of its own, including龙门数控切割机,管板一体切割设备,光纤激光机,风冷激光焊机, etc., suitable for scenarios such as steel structure, construction machinery, pipeline manufacturing, and sheet metal processing.
The company attaches great importance to technological research and development, holding over ten utility model and appearance patents for cutting equipment. The complete machine adopts core components from first-line brands such as Chuangxin, Fangling, and SMC. Each machine undergoes 72-hour full-load aging testing and has CE export certification. The products not only cover all provinces and cities in China, but are also exported to Southeast Asia, Russia, Europe, America, and many African countries. The factory has a professional engineering and after-sales team, providing on-site installation and commissioning, free operation training, 24-hour remote technical support, and whole machine warranty for one year, laser source warranty for two years. The equipment size and function configuration can be customized according to the customer's factory conditions. Juliang adheres to the concept of precision manufacturing and relies on the local mechanical industry advantages in Shijiazhuang to continuously provide high-performance and cost-effective automated cutting solutions for factories both at home and abroad.
