What Is an Industrial Gantry Cutting Machine?

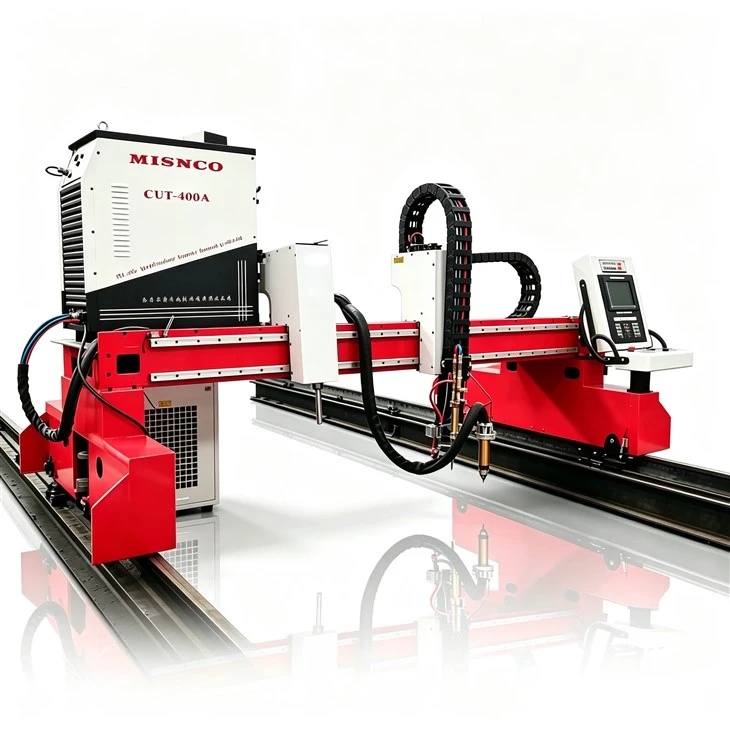

Built on a bridge-like gantry that spans the width of the material, an industrial gantry cutting machine is a powerful thermal cutting system. The gantry glides along the bed on accurate guide rails, with the cutting torch moving across the gantry. All operations, such as motion, torch activation, gas supply, and height control, are automatically managed by the CNC controller.

Why Choose a Gantry Structure Over Other Designs?

The gantry's design isn't random; its structure offers superior stability compared to cantilever or portable systems. On a 4-meter-wide gantry, the torch stays in a fixed position relative to the bed, ensuring a consistent relationship with the workpiece. This consistency results in better cut quality: straighter edges, reduced taper, and fewer measurements needed post-cutting.

For plates 25mm thick and up, gantry models are the go-to. These heavier materials need more cutting force and a very stable platform. Cantilever systems tend to flex under load, but gantries remain rigid.

The reasoning behind the structure is simple. The broader the gantry, the more crucial dual-side drive is. While single-side drive is fine for machines under 2 meters wide, it causes the trailing side to lag on larger gantries (4-6 meters). Dual-side drive resolves this, keeping the machine perfectly square to the bed.

This design also accommodates multiple torches. A gantry can hold two, three, or even four torches across its beam. This means you can cut several parts at once from the same sheet, speeding up production runs.

Where This Machine Is Used

Shipbuilding: The machine cuts hull plate sections and structural components, working with plates up to 6 meters wide and 20 meters long. Plasma cutting is ideal for shipyards because it can cut through rusted surfaces.

Steel Service Centers: Plates are processed for customers in batches. Multiple shapes are cut from each sheet, and the ±0.5mm positioning accuracy ensures parts meet specifications without needing rework.

Heavy Equipment Manufacturing: Components for mining, construction, and agricultural equipment are cut. The machine handles material thicknesses from 10mm to 50mm on the same job, thanks to its dual-process capability which eliminates repositioning.

Structural Steel Fabrication: Plates for building frames, bridges, and other structural elements are cut. The machine can directly cut bevels (V, Y, and K) on plate edges for welding preparation, removing the need for a separate beveling step.

Pressure Vessel and Boiler Fabrication: Thick-walled carbon steel plates are cut, often with beveled edges for welding. Oxy-fuel cutting is an economical choice for these thicker sections.

Our Certificate

ISO

ISO

FAQ

1. What is the difference between an industrial gantry cutting machine and a portable cutting machine?

Portable machines are compact, easy to move, and ideal for on-site work or small shops. Gantry machines are larger, more stable, and designed for industrial applications. For plates over 25mm thick and widths over 2 meters, gantry models are the practical choice. Gantry machines can be equipped with multiple torches and can achieve long straight cuts with consistent quality.

2. What is the difference between a water table and a downdraft table on a gantry machine?

A water table reduces fumes by capturing dust and smoke, making it suitable for indoor shops. A downdraft table uses high-velocity airflow through the cutting bed to capture fumes. Water tables are common in plasma cutting; downdraft tables are used where water cannot be used.

3. What are the signs that the guide rails need maintenance?

Listen for unusual noise during gantry movement. Check for visible debris on the rails. If the gantry movement feels rough or jerky, clean and lubricate the rails and rack. If the problem persists, inspect the rails for wear or damage. Regular maintenance extends rail life and maintains cutting accuracy.

4. Machine maintenance involves:

Each day, you'll need to check the torch and guide rails. Every week, clean and lubricate the drive system. Once a month, conduct inspections of the guide rails, drive gears, and electrical connections.

Pay close attention to gas quality, as it's the usual culprit for problems. Always use clean, dry air and make sure the air filters are regularly checked.
