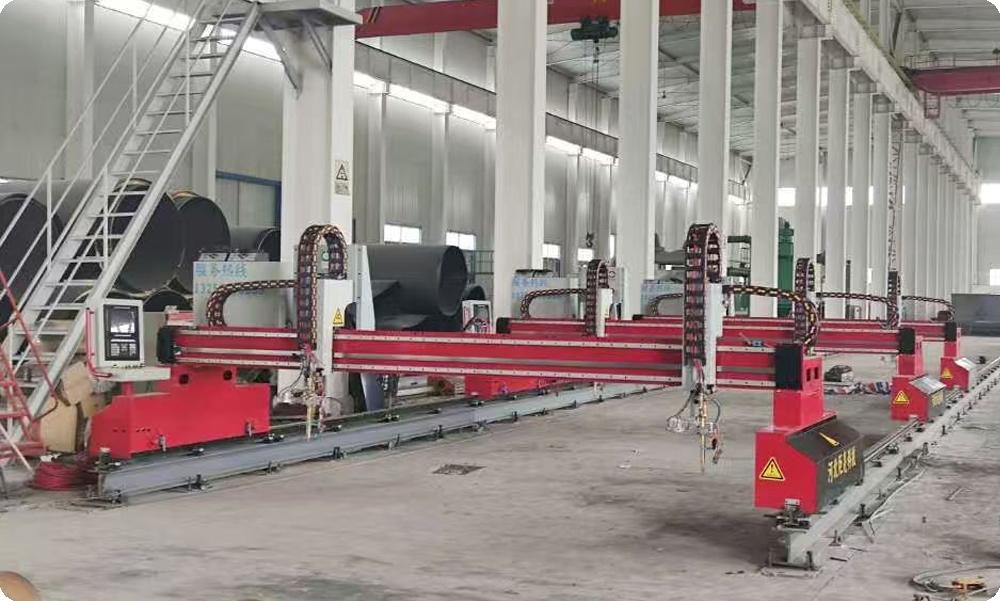

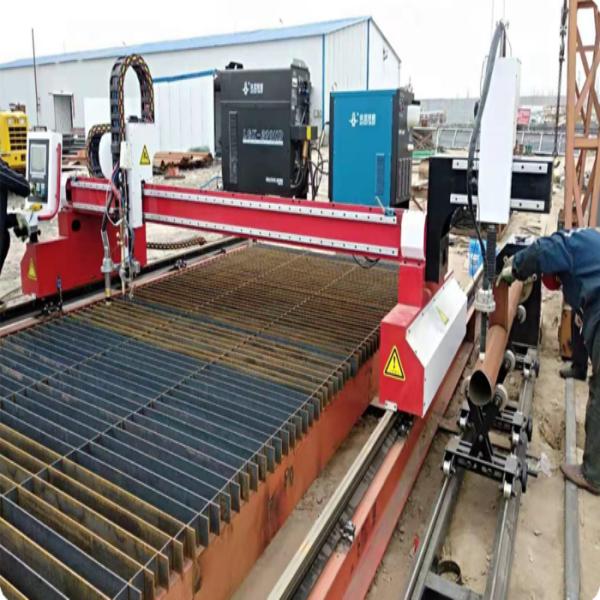

CNC Heavy-Duty Gantry Plasma Cutting Machine

Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of cnc heavy-duty gantry plasma cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

In heavy fabrication, the cutting machine is either your best asset or your biggest bottleneck. Walk through any structural steel shop and you'll see the difference: one shop stacks finished parts ready for fit-up; the other has fitters grinding every edge because the cuts aren't square. That difference usually comes down to one thing-the machine's structure. A gantry that flexes, rails that wear unevenly, or a drive system that lets one side lag behind the other will ruin cut quality across every single plate. When you're working with material thicknesses that would stall a standard cutter, the CNC Heavy-Duty Gantry Plasma Cutting Machine gives you the stability and power to push through without losing edge quality shift after shift.

What sets it apart is the sheer robustness of the design-this equipment doesn't wobble when the torch fires up, and it doesn't lose accuracy after a full day of heavy cutting. The combination of a wide box-type beam, heavy-duty 24kg rails, and intelligent synchronous dual-drive gives you the stability needed for consistently clean cuts. You'll notice the difference on the first job: straighter edges, less dross, and fewer scrapped parts.

The foundation of reliable cutting is a structure that resists deflection. When the gantry moves at speed with multiple torches running, any flex in the frame throws off the cut. This machine's design starts from the ground up to prevent that.

The beam uses high-strength steel with a large cross-section and multiple reinforcing ribs throughout. The geometry is calculated to resist torsion during high-speed traversing. A weaker beam would twist and produce tapered edges on thick plate; the box-type design keeps everything square, cut after cut.

The machine runs on national standard 24kg heavy-duty rails, heat-treated for surface hardness and ground on a high-precision rail grinder. The heavier profile resists deformation and provides a smoother rolling surface, which directly translates to better edge quality on finished parts.

Instead of a single motor pushing from one side, the dual-drive system uses synchronized motors on both sides of the bridge. This eliminates the "lead-lag" effect-where one side pulls ahead of the other. The result is straighter cuts across the full width of your plate. Positioning accuracy holds at ±0.3mm, with repeatability of ±0.1mm.

What This Tells You: If you're cutting light gauge sheet metal all day and need mirror-quality edges, a laser is hard to beat. If you only need occasional cuts, a hand torch might be enough. But if you're regularly processing heavy plate-anything over 25mm-and need consistent results across hundreds of parts, this gantry plasma is the most practical choice.

The Shanghai Fangling F2300B CNC system is reliable, responsive, and handles complex cutting paths without hesitation. The built-in StarCAM nesting software (Beijing Star Peak) helps maximize material yield before the torch fires.

The F1621 arc voltage height adjustment maintains correct torch-to-plate distance, compensating for warped or uneven surfaces. Consistent height directly affects cut quality and consumable life. A wireless remote control unit lets you jog the machine into position without being tied to the main console.

This machine is built for industries where thick metal meets tight tolerances:

• Structural Steel Fabrication - Beams, columns, base plates
• Shipbuilding - Hull sections, deck components
• Bridge Construction - Girders, connection plates
• Mining Equipment - Crusher frames, conveyor parts
• Heavy Machinery - Excavator and loader components

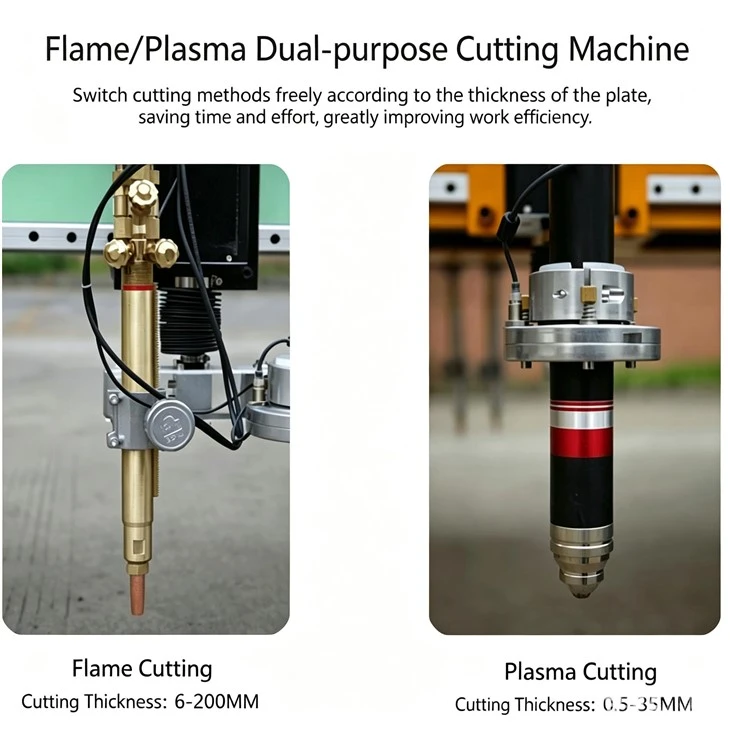

Plasma power options range from LGK-100 through LGK-300. For extreme thickness jobs (up to 300mm), the flame torch option is available-one machine, two processes.

In Southeast Asia, a shipbuilding fabricator uses the SG-series to profile hull plates with consistent accuracy, reducing rework by over 20%. A steel service center in Africa processes structural beams from 10mm to 60mm daily with an SL-4×14 setup. A Russian mining equipment manufacturer has run an SL-5×14 for over 18 months with minimal downtime.

"We've used these gantry cutters for over three years. The structure holds up, and remote support is responsive when we need it." - Structural steel fabricator, Eastern Asia

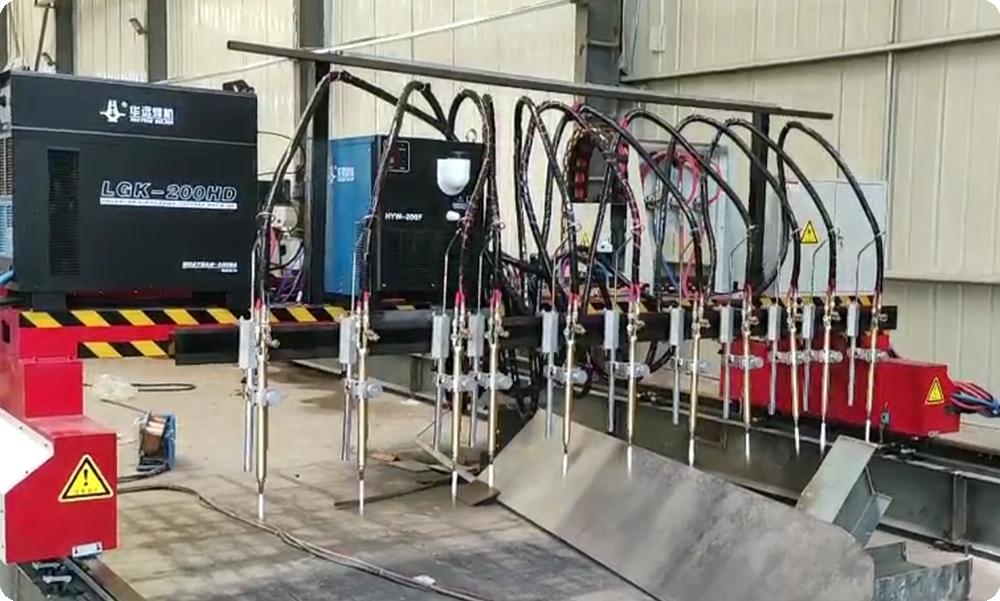

Straight bar configurations also available: 2200/3200/4200mm widths with 4, 6, 8, or 10 torch heads.

A cutting machine's value is determined by three factors: how straight it cuts, how long it holds accuracy, and how quickly problems get resolved. This gantry system is designed around these priorities.

The beam is overbuilt-not because extra steel looks good on paper, but because a beam that flexes under load produces parts that don't fit. The rails are heavy and precision-ground-not because marketing says so, but because lighter rails wear unevenly and ruin edge quality. The dual-drive system is synchronized-not because it's a fancy feature, but because a gantry that lags on one side cuts tapers instead of square edges.

Every machine is assembled in-house, tested under load, and calibrated before shipping. The first cut on your shop floor needs to be as accurate as the thousandth, and that's the standard we build to.

Start with a video call-that's always the first step. Most issues are diagnosed and resolved within 15 minutes. If a part is needed, it ships with step-by-step instructions for your team to install on your schedule. If the problem runs deeper, the unit comes back to our shop. We test it, fix it, run it through a full burn-in cycle, and send it back.

Before you commit, you're welcome to bring your material to our facility. We'll cut your parts in front of you. If you're not satisfied, you walk away with no charge and no obligation. That's not a marketing promise-that's our standard process.

On-site installation, commissioning, and operator training are handled by our engineering team. And if you're running a night shift or working across time zones, remote support is available 24/7.

Sales Hotline: +86-156 3115 9021 | Email: sales@jlwmb.com
When you're ready to move beyond manual cutting or upgrade from lighter equipment, this machine delivers the power, precision, and reliability that keeps fabrication profitable.
Our sales and engineering teams will respond with tailored recommendations, technical documentation, and sample processing arrangements.
