Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of 4060 gantry cnc plasma & flame dual use cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.
Product Brief

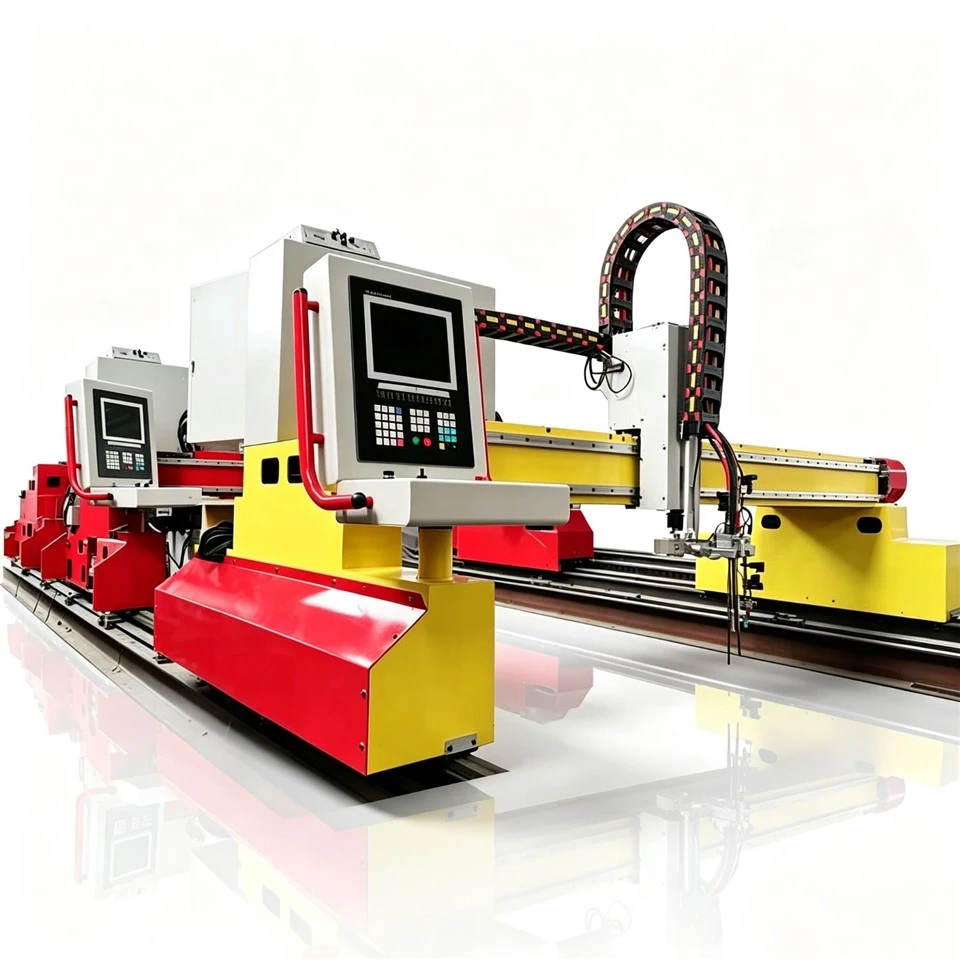

The working area of the 4060 gantry-type CNC dual-purpose cutting machine is 4000mm × 6000mm. It integrates plasma fine cutting and oxygen-fuel thick plate cutting. It adopts a heavy-duty bilateral drive gantry structure, which can perfectly meet the requirements of both thin plate high-speed precision cutting and heavy-duty carbon steel cutting. This integrated metal cutting equipment meets the processing requirements of metal processing factories for all thickness metal materials, effectively reducing the investment cost of cutting equipment and the floor area of the workshop.
Core Components
Two cutting methods
This machine is equipped with two interchangeable cutting heads. The left brass model is a flame cutting head, suitable for cutting thick carbon steel, stainless steel and other thick plates with a thickness of 6-200mm; the right black-red model is a plasma cutting head, capable of processing thin plates with a thickness of 0.5-35mm. The two cutting modes can be switched as needed, balancing efficient melting cutting of thick plates and precise cutting of thin plates. The machine is versatile and can significantly expand the processing range.

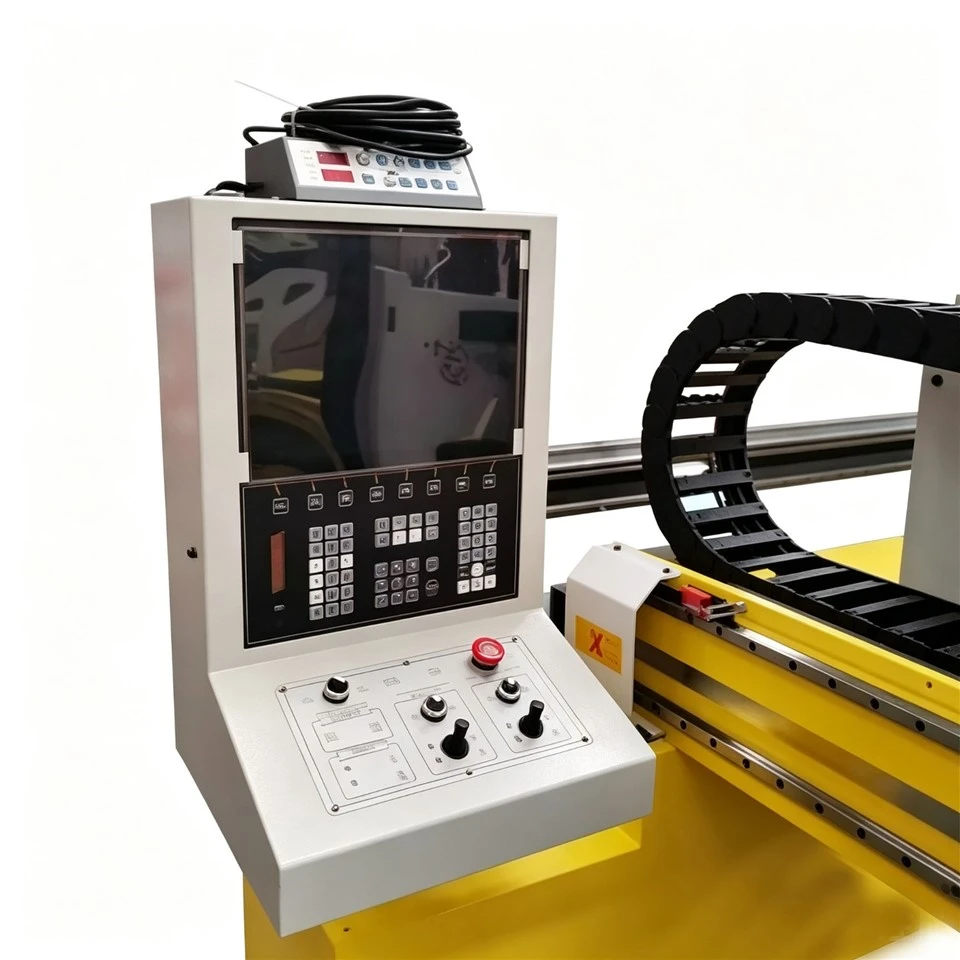

Numerical control operation control cabine
Equipped with a dedicated numerical control operating system, a full Chinese visual operation screen, combined with physical function buttons and adjustment knobs, the operation logic is simple and easy to understand; the equipment is reserved for USB data interfaces, which can quickly import cutting drawings and export processing programs. The system comes with a shared-edge cutting optimization function, runs stably and is resistant to interference, and beginners can quickly operate the equipment.
High-precision heavy-duty rail guide
The longitudinal movement of the equipment adopts specially designed heavy-duty rail guides, the rail surface is hardened through high-precision milling, with excellent wear resistance, pressure resistance and straightness; combined with precise slider transmission, the movement is smooth without any jamming, and it is not prone to deformation during long-term processing, ensuring the dimensional accuracy of the entire machine for long-term cutting, and suitable for long-term mass production operations with heavy-duty gantry cutting machines.
Full Specs
| Voltage | 110 V, 220 V | Motor Type | Stepper Motor |
| Mechanical Inspection Report | Available | Factory Video Inspection | Available |
| Warranty | 1 Year | Core Components | Motor, PLC, Bearings Key Selling Points |
| Brand Name | JULIANG | Weight (kg) | 1000 |
| Dimensions (Length × Width × Height) | 3600*1700*1600mm | Cuttable Materials | Mild Steel / Stainless Steel / Aluminum / Alloy Metal |
| Drive System | Servo Motor Drive / Stepper Motor Drive | Support Nesting Software | FastCAM / StarNest / Free Nesting Program |
| Certification & Warranty | CE Certified / 1 Year Warranty / Lifetime free technical support | Plasma Power Optional | 100A / 120A / 160A / 200A / 300A / Hypertherm Series |
Global Partner Projects
A Hebei steel structure factory processes steel plates and beams of varying thicknesses. It once relied on two outdated cutters for separate thick and thin plate work, causing space waste, low precision, material loss and delayed deliveries.
The factory adopted our gantry CNC flame & plasma cutting machine. Fitted with dual cutting heads, heavy-duty steel rails and a Chinese CNC system, it cuts 0.5–200mm sheets, supports USB drawing import and co-edge cutting with simple operation.
After deployment, daily efficiency rose by 60%. Stable cutting accuracy cuts rework and material waste, eliminating extra equipment maintenance costs. Order turnaround is much faster, and the client highly praises its durability and cost-effectiveness.

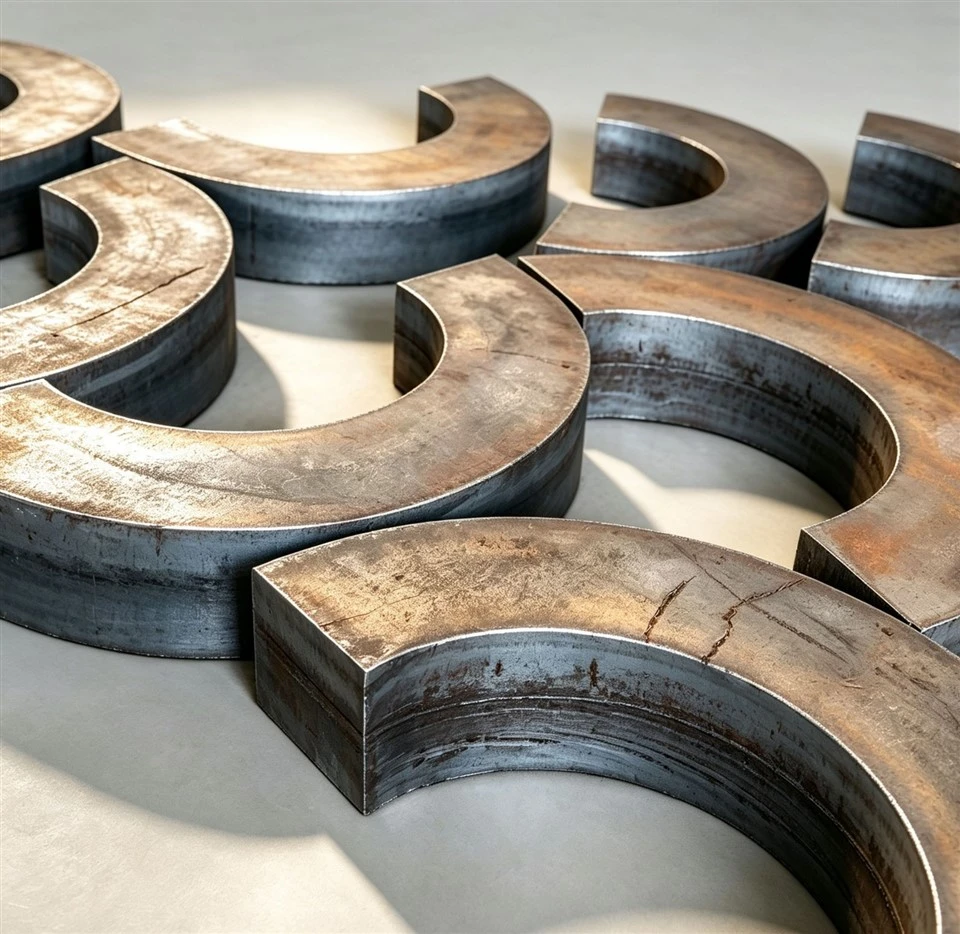

Two types of cutting effects demonstration
Products Description
Certificate
CE
Certificate
CE
Everything You Need to Know
Can the processing size be customized?
Yes, the length of the longitudinal track and the span of the crossbeam can be customized according to the size of the factory building and the specifications of the processed materials. They can also be extended and widened.
What are the differences between the flame and plasma cutting heads?
The flame cutting head is suitable for cutting carbon steel with a thickness of 6-200mm, which is suitable for thick plates; the plasma cutting head can process thin plates with a thickness of 0.5-35mm, and the cut edges are smooth. It can cut both stainless steel and ordinary steel plates.
Will the system be difficult to learn?
No. Equipped with the Jiaodafangling numerical control system, it has a multi-language operation screen with an intuitive layout of buttons. You can master it in just half a day. It supports importing CAD drawings via USB drive and comes with automatic optimization for shared-edge cutting.
How long is the whole machine's warranty period?
The whole machine has a one-year warranty, and the laser generator has a two-year warranty.
