Fiber Laser Pipe Cutter | Industrial Laser Pipe Cutting Equipment
why choose our products

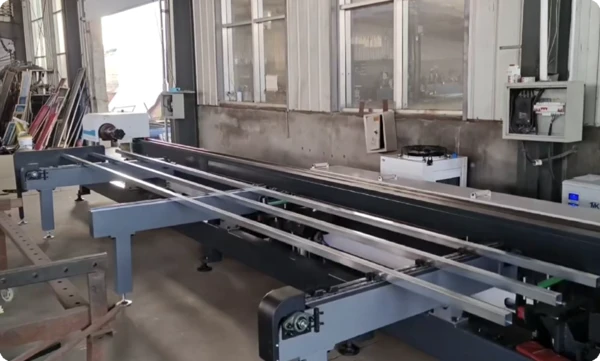

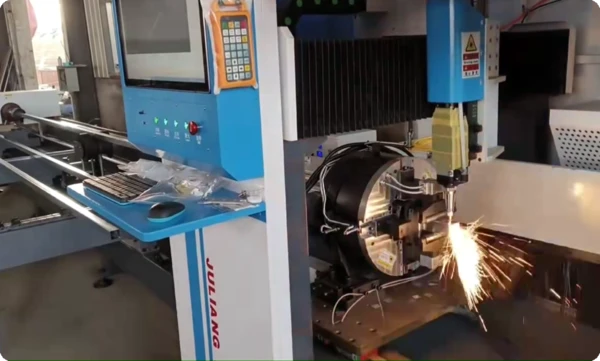

A fiber laser pipe cutter uses a high-power laser beam to cut through metal tubes and profiles with extreme precision. Unlike mechanical saws that require separate tools for different cuts, this machine handles holes, notches, miters, bevels, and complex profiles in a single setup. The system includes a rotary chuck that spins the tube while the laser head moves along the programmed path, following CAD files you feed into the controller. It processes round, square, rectangular, and even custom-shaped profiles without tooling changes.
How This Machine Changes the Shop Floor
Self-Centering Chuck System – The pneumatic chuck grips round, square, and rectangular tubes without manual jaw adjustments. It detects the tube shape and adjusts clamping pressure accordingly. For long tubes, follower supports prevent sagging during high-speed rotation .
Zero-Tail Cutting – The rear chuck extends into the tube to support the workpiece close to the cutting head, reducing the leftover tail to almost nothing. Less waste means more parts per tube-typically saving 10-15% in material costs compared to standard cutters .
Precision You Can Rely On – Positioning accuracy holds at ±0.05mm with repeat positioning at ±0.03mm . The rotary chuck resolves to 0.01 degree-holes on opposite sides of a square tube align perfectly for assembly. Max cutting speed hits 20 m/min on thin walls .

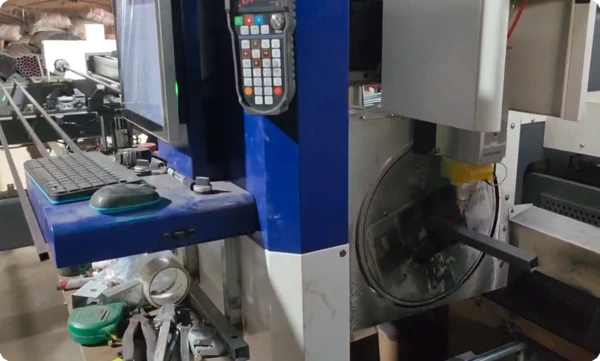

Built-in Nesting Software – The control system imports DXF or SolidWorks files directly. The nesting software arranges cut profiles across the tube length to minimize waste and avoid collisions. A simulation mode lets you preview the cut path before the laser fires .
Dual-Chuck Design – Two chucks work together to hold the tube during cutting. The rear chuck can extend into the tube to support the workpiece close to the cutting head, reducing vibration and enabling minimal tailing length. This means less material waste per tube.
Hebei Juliang Technology Co., Ltd. is a high-tech enterprise specializing in R&D, production, and sales of fiber laser cutting machines, laser welding machines, and NC cutting equipment . The company was formally established in 2018 and registered in Shijiazhuang, Hebei Province, with a registered capital of 20 million RMB . The Juliang team entered the CNC cutting field in 2014, working on portable cutting machines before developing gantry systems and pipe cutting equipment .

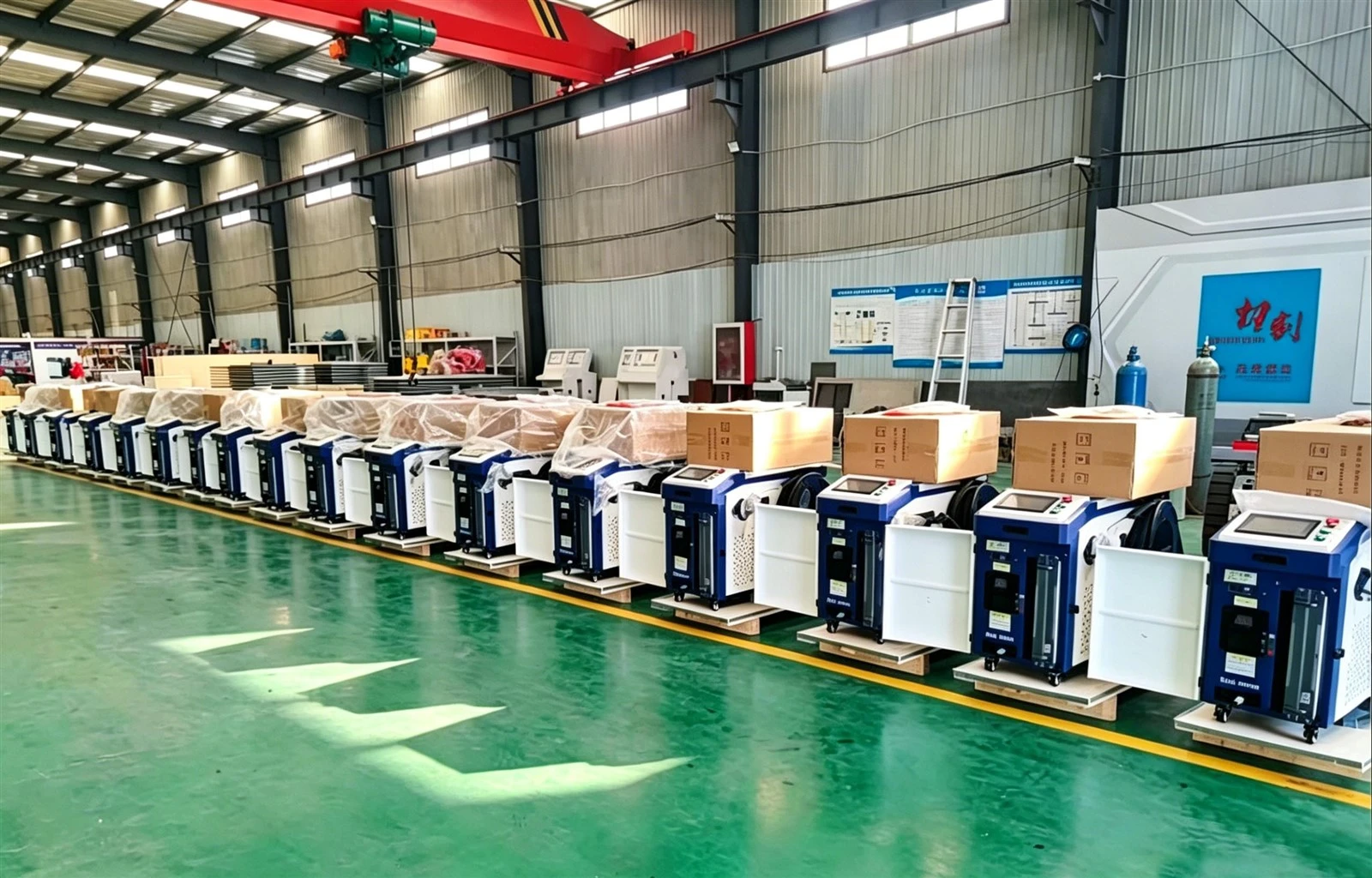

The company operates from a 4,000 sqm facility with annual revenue between 20 and 30 million RMB. Key production equipment includes large laser cutting machines, gantry milling machines, and high-precision collimators . Juliang has a 12-engineer R&D team and holds CE certification. Products are exported to Southeast Asia, Russia, Africa, and Europe .
Use Scenarios
| Scenario | Why It Fits |
|---|---|
| Home furniture manufacturing | High-volume cutting of square and round tube for bed frames, shelving, chairs -3-8 |
| Fitness equipment production | Consistent saddle cuts for welded frames, minimal rework |
| Kitchen equipment and appliances | Bevel cuts for weld prep, clean edges requiring no secondary deburring |
| Automotive chassis components | Complex profiles, miters, holes in a single setup |
| Bicycle and motorcycle frames | Precise bevel cuts and consistent fit-up for welding |
FAQ
1. Can the machine cut both round and square tubes without manual adjustment?
Yes. The self-centering chuck automatically adjusts to different tube shapes. You simply select the profile in the software-no manual tooling changes required.
2. How long does it take to set up a new cutting job?
Typically 10-20 minutes: load the CAD file, select the tube profile and material from the preset library, run the simulation. Once the first cut is verified, the machine runs the batch automatically.
3. Does laser cutting eliminate the need for deburring?
Yes. The laser leaves a clean, square edge with minimal burr. Most tubes go directly from cutting to welding without intermediate processing.
4. What happens if the tube is slightly bent or deformed?
The variable-diameter support system and self-centering chucks can handle minor tube deformation. For severely bent tubes, the centering sensors detect alignment problems and pause the process for operator intervention.
5. How does the machine handle long tubes without sagging?
A variable-diameter support system with roller stands follows the tube as it feeds, preventing sagging and vibration during high-speed rotation.
