What if your laser cutter didn't take over half the workshop?

Step into most fabrication shops, and you'll notice the same story: huge machines occupy floor space that could be dedicated to material storage, extra workbenches, or just better circulation. A typical laser cutting system requires its own dedicated area, complete with reinforced flooring, sufficient ceiling height for maintenance, and ample room for material handling. This is all well and good for large-scale manufacturing. However, for smaller businesses where space is at a premium, a compact fiber laser cutting machine is the ideal choice. It offers the same cutting capabilities – precise edges, high speed, and broad material compatibility – but in a significantly smaller footprint, giving you back valuable room for other uses.

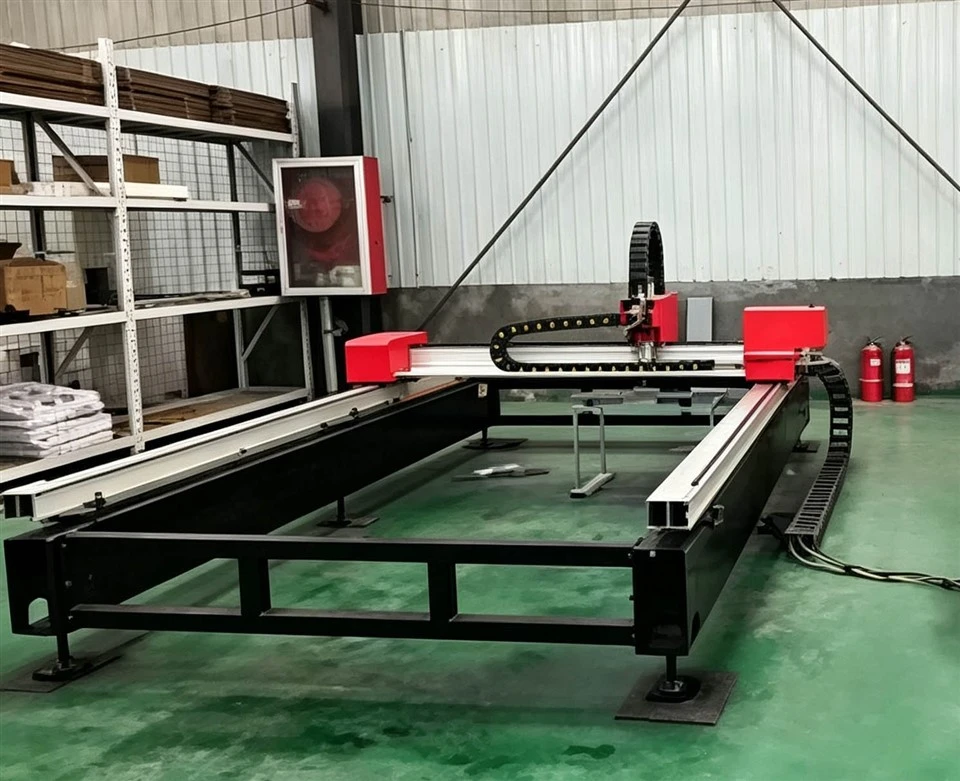

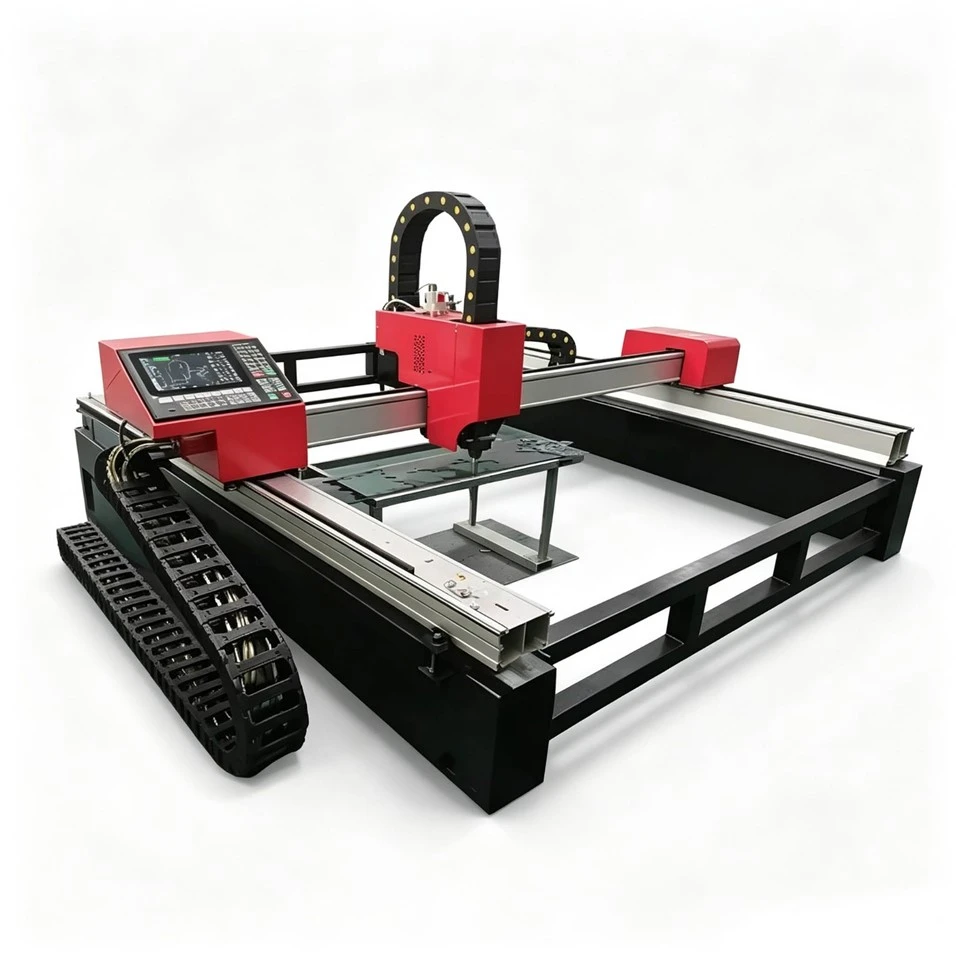

How a Space-Saving Machine Still Cuts Full-Size Sheets

Even though this machine has a smaller footprint, it doesn't sacrifice cutting area. It features a compact gantry design, which keeps the overall size down while still offering a complete working envelope. The bed size is standard (1500×3000mm or 1300×2500mm), but the surrounding structure has been significantly reduced.

Here's how that's achieved:

We've mounted the laser source more efficiently, using shorter fiber connections and built-in cooling that eliminates the need for extra external units. The motion system employs a lightweight gantry with smart travel paths, requiring less overhead space for operation. Plus, the control cabinet is integrated directly into the machine frame, ditching the separate floor unit. This means the machine can fit into workshops where a typical laser cutter wouldn't.

The actual cutting performance is identical. The ytterbium-doped fiber laser, emitting 1070nm wavelength light, provides the same power and beam quality. The assist gas, CNC controls, and water cooling all function just like they do on bigger machines. The only change is in how it's all packaged, and that packaging makes a big difference in a tight workshop.

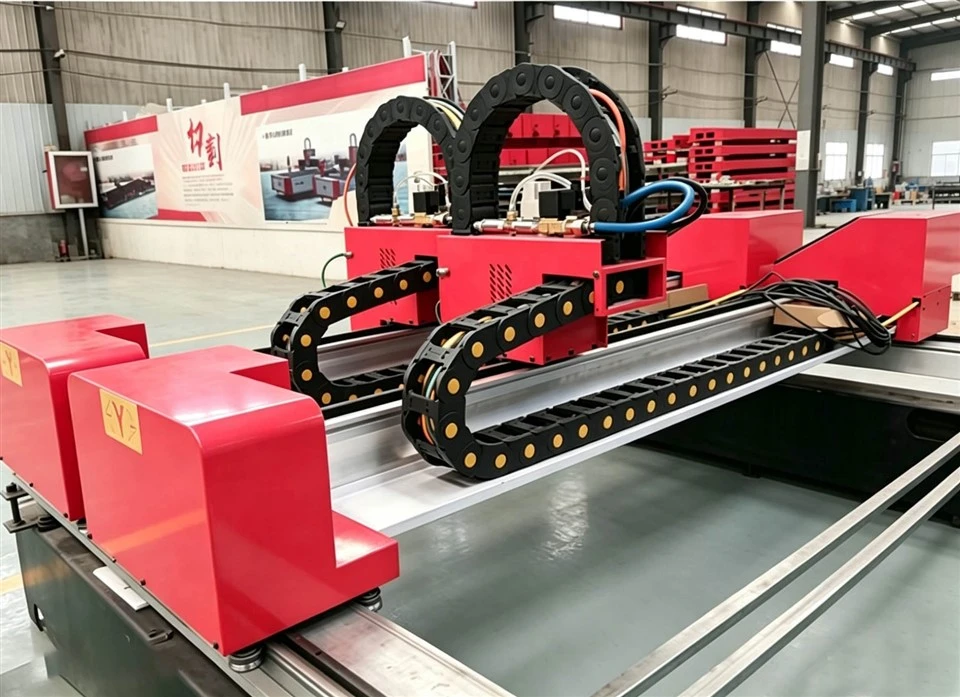

Why the Gantry Design Is the Secret to Saving Space

Traditional laser cutters feature large, bulky gantries that extend far beyond the cutting area, which adds stability but also significant mass. In contrast, our compact design utilizes a dimensionally efficient gantry that spans only the necessary space. This means the machine width is reduced as the gantry drive system is housed within the frame instead of protruding. The height is also lower due to optimized Z-axis travel for common sheet thicknesses. Overall, the machine footprint is about 20–30% smaller than conventional cutters with the same cutting area.

This efficiency is a result of meticulous engineering, not compromised structural integrity. We've eliminated unnecessary overhang. The aerospace aluminum gantry ensures the stiffness-to-weight ratio required for high-speed precision, while the stress-relieved welded steel frame offers the stability for accurate cuts. We've simply optimized the packaging.

The benefit to you is clear: you can position the machine closer to walls and other equipment, fit it into workshops with lower ceilings, and even place it in multi-purpose areas where space is shared.

Who Actually Needs a Space-Saving Machine?

Customer Case – Adding Laser Capability Without Adding Space

We recently partnered with a Malaysian metal furniture maker who had a well-organized workshop. They had all the necessary equipment like shears, brakes, welders, grinders, and material racks, with everything neatly in its place. Their goal was to integrate laser cutting but faced a building size limitation.

The core challenge was that they had been outsourcing their laser cutting for ages. This led to unpredictable turnaround times, ranging from five to ten days, with rush jobs costing extra. Meanwhile, rivals were bringing cutting in-house, gaining an edge in both speed and price. They needed a laser cutter but couldn't find space for a standard one.

After assessing their workshop and standard laser cutters, they realized a conventional machine would necessitate relocating several workstations, thereby decreasing their capacity elsewhere. Then they discovered our compact, space-saving model. It offered the same cutting area as a traditional machine but with a footprint roughly 25% smaller, allowing it to fit in a corner without disrupting their current setup.

In the end, they purchased a 1500W machine featuring a 1500×3000mm bed. Its compact design integrated seamlessly into their existing layout with only minor adjustments. By bringing cutting in-house, their lead time plummeted to same-day service. The cost per part dropped significantly, not only by cutting out the subcontractor's fee but also through material savings achieved by improved nesting. The machine was actively used for production within a week of installation.

The quantifiable outcome: they reduced their overall production lead time from two weeks to just five days, enabling them to accept orders they previously couldn't. The investment paid for itself in 14 months.

A point worth mentioning: initially, they were worried about material handling due to the compact nature of the machine. However, the side-loading design actually complemented their existing workflow. They load sheets from the front and unload parts from the rear, just as they'd envisioned. The smaller footprint didn't create new issues; it simply solved the existing one.

Frequently Asked Questions

Does a smaller footprint mean I lose cutting area?
No. The space-saving design reduces the machine's overall dimensions while maintaining the full working area – typically 1500×3000mm or 1300×2500mm. The reduction is in the frame, not the bed.

Can the machine be placed against a wall?
Most maintenance access is from the front and sides. The space-saving design allows closer placement to walls than conventional machines, but you'll still need access for material loading and general servicing. We can provide specific clearance requirements for your layout.

What's the difference between this and a regular machine?
The core technology is identical – same laser source, same optics, same CNC controls. The difference is in the mechanical packaging: integrated cooling, compact gantry, reduced overall dimensions. The cutting performance is unchanged.

Is installation more complex because of the compact design?
Installation is actually easier – the machine arrives in fewer pieces, requires less assembly, and has lower power requirements for the auxiliary systems. The compact design means simpler positioning and alignment.

What maintenance is required to keep the machine operating at its best?
Regular maintenance includes inspecting the protective lens for contamination every 8 operating hours, checking coolant levels monthly, and periodic cleaning of the assist gas filter. The compact design makes these components more accessible, not less.
