Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of industrial single table laser cutter in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

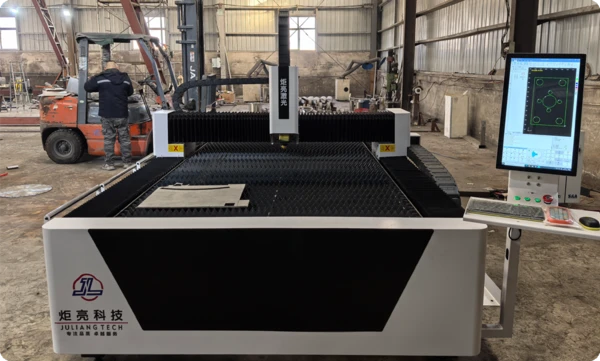

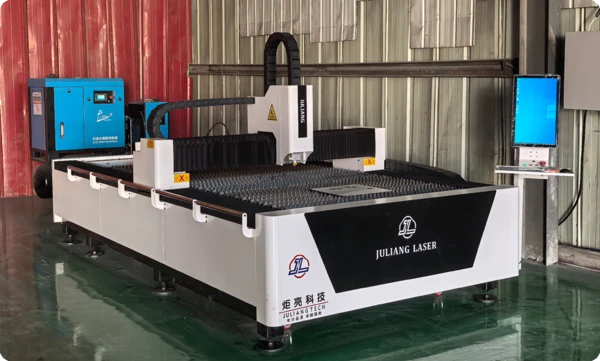

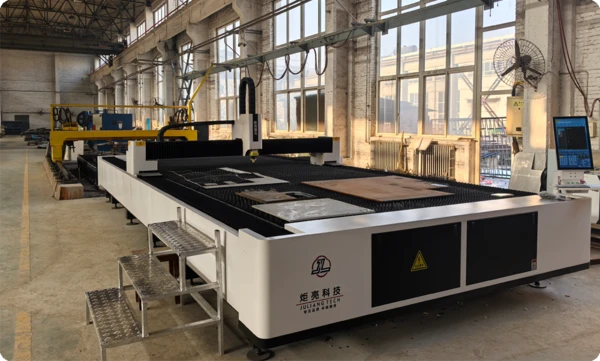

If you run a fab shop, you understand that the process involves receiving sheets and producing parts, so the machine in between needs to be dependable. This industrial single-table laser cutter is designed for straightforward operation. It features one stationary cutting table, a gantry that moves with high accuracy above, and a fiber laser capable of precise metal cutting. It omits features like pallet changers and rotating tables, thus avoiding added cost and maintenance issues associated with complexity. Having manufactured laser equipment since 2014, we've incorporated our knowledge of essential production cutting requirements into this machine.

A fiber laser generates a beam that's focused through a cutting head onto the sheet. The beam melts the metal, and assist gas blows the molten material out of the kerf. The result is a clean cut edge with minimal dross, ready for welding or further processing. The single table design means you load material, cut, then unload-straightforward and predictable. Motion control is precise enough for complex profiles, rigid enough for heavy plate.

Where This Industrial Single Table Laser Cutter Goes to Work

We specialize in sheet metal fabrication for carbon steel, stainless steel, and aluminum, handling moderate thicknesses.

We also work with structural steel, cutting components like base plates, gussets, and brackets from plate.

For agricultural equipment, we produce parts for harvesters, tillers, and grain handling systems.

Our services extend to construction machinery, including excavator parts, boom sections, and frame components.

We are a key supplier to the automotive industry, fabricating brackets, mounts, and reinforcement plates.

For general job shops, we offer services for one-off parts, short production runs, and prototyping.

A Hebei-based customer with a general fabrication shop recently upgraded their plasma table to our single-table laser. They primarily cut 6-20mm carbon steel. The improvements were noticeable: cut quality increased, edge cleanup was significantly reduced, and they eliminated most post-cut grinding. They shared, "We now approach job bidding in a whole new way."

Industrial Single Table Laser Cutter Features

Single fixed table – Simple design, lower cost, easier maintenance. No pallet mechanism to fail, no alignment issues between tables.

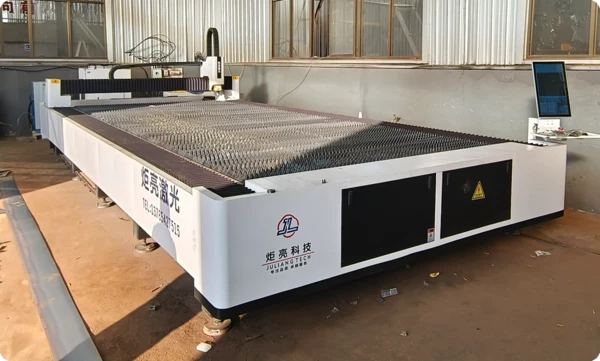

Work area up to 6m x 2.5m – Accommodates standard sheet sizes and larger plates. Multiple options available.

Available power from 1000W to 6000W – Choose based on the material thickness you cut most often.

Precision drive system – Ground rack-and-pinion or ball screw drives with low backlash for accurate contours.

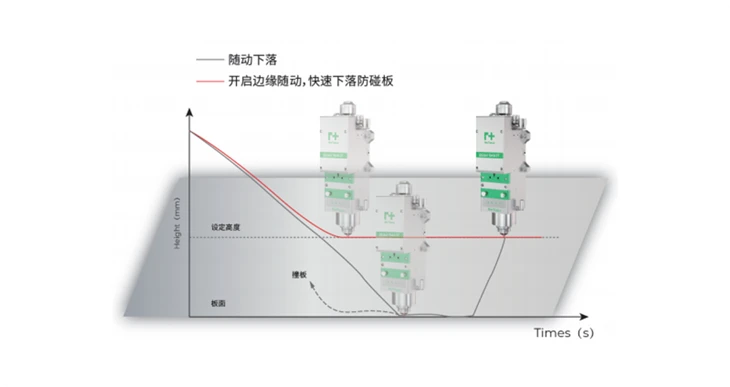

Height sensing – Capacitive or inductive sensor maintains focus over varying material surfaces.

Simple operation – Standard CNC control interface. Most operators transition easily from plasma or oxy-fuel.

Customer Cases

Case 1 – General fabrication shop, Hebei

They were cutting 6–20mm steel on a plasma table. Edge quality required secondary grinding on many parts. They switched to a single table laser. Dross nearly disappeared on most thicknesses. Edge cleanup time dropped by 80%. Shop throughput increased without adding staff.

Case 2 – Agricultural equipment manufacturer, Shandong

They cut hundreds of small brackets and mounts per day. Previous process used punching and shearing, limited in complexity. The laser let them cut nested parts from full sheets, reducing material waste by about 15% and eliminating tooling changeover time.

Case 3 – Structural steel fabricator, Jiangsu

They cut base plates and gussets from 16mm plate. The laser produced accurate edges with consistent kerf, making fit-up faster on the assembly floor. They reduced grinding time per part from 12 minutes to under 2.

FAQ

Q: What's the difference between a single table laser and a dual pallet system?

Single table: lower cost, simpler design, no pallet mechanism to maintain. You load and unload on the same surface. Dual pallet: one table stays in cutting position while the other loads/unloads, reducing downtime between cycles. If you run high-volume production, dual may pay off. For job shop work, single table is often sufficient.

Q: What thickness can this industrial single table laser cutter handle?

Depends on power. 1000W cuts mild steel up to about 8mm cleanly. 3000W handles up to 16mm. 6000W reaches 25mm in mild steel, less in stainless. We can recommend power based on your typical material thickness.

Q: What's the difference between cutting mild steel, stainless, and aluminum?

Mild steel uses oxygen assist for faster cutting. Stainless and aluminum use nitrogen to prevent oxidation. Aluminum requires higher power relative to thickness due to reflectivity. The machine handles all three with appropriate gas settings and parameter tables.

Q: What kind of maintenance does it need?

Regular lens cleaning, nozzle replacement, rail cleaning, and lubrication of linear guides. We provide a maintenance schedule. Consumables like nozzles and lens protectors are standard-we supply replacements. Most maintenance is 15 minutes per shift.

Q: What's the lead time for delivery?

Typically 30–45 days depending on configuration. Larger custom tables may take longer. We ship via container or bulk cargo depending on destination and machine size.

Q: What's the warranty?

Whole machine: 1 year. Laser source: 2 years. Engineers available for 24-hour remote support. Service begins at delivery, not after warranty expires.

Q: What are the power requirements and floor space needed for installation?

We require 380V, 50Hz three-phase power for most models-specific amperage depends on the laser source you choose. Floor space should allow at least 1.5 meters of clearance around the machine for material handling and maintenance access. We send a site layout guide with the order confirmation, and our engineers review your workshop layout remotely before delivery.

Q: Can this single table laser cutter handle perforated or expanded metal sheets?

Yes, but with some limitations. The height sensing system works on expanded metal, though you may need to adjust cut parameters for the open areas. Perforated sheets cut well as long as the holes don't create excessive reflections or inconsistent heat dissipation. We recommend lower power settings and higher feed rates for these materials.

Q: What assist gas do you recommend, and what's the typical consumption rate?

For mild steel up to 12mm, oxygen is the standard choice for speed and edge quality. For stainless and aluminum, nitrogen produces a clean, oxide-free edge. Consumption depends on nozzle size and pressure-typically 10–20 m³/hour for nitrogen, less for oxygen. We provide gas flow tables for each material thickness in the operation manual.

Q: Can I cut round or irregularly shaped sheets, or does it require square edges?

The machine cuts any shape you can fit on the table within the workpiece limits. You can set the cut start point anywhere on the sheet, and the software handles irregular edges automatically. We recommend securing sheets with clamping or magnetic hold-downs to prevent movement during high-speed cutting of small parts.

Q: How long does it typically take for a new operator to become productive?

Most operators with previous CNC experience-plasma, router, or milling-can run basic cutting within a day or two. Full proficiency, including nesting optimization, parameter adjustment for different materials, and troubleshooting common issues, usually takes about one to two weeks of regular use. We include hands-on training during commissioning.
