Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of small light gantry cnc cutting machine for carbon steel processing in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

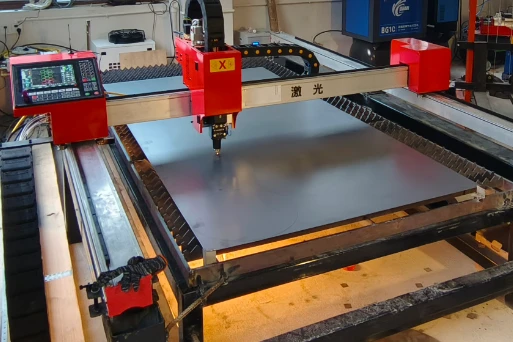

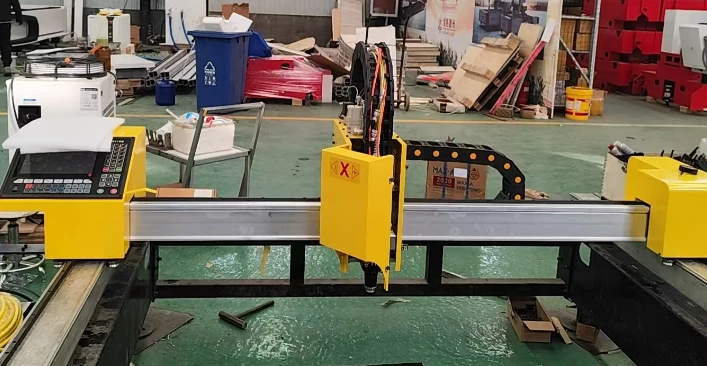

A small light gantry CNC cutting machine is a computer-controlled system that moves a cutting torch along a compact beam to slice through carbon steel plate based on digital designs. The core function is straightforward-you draw it, the machine cuts it. But the real value lies in how this particular size and weight class changes what a shop can do without dedicating a large section of floor space to a heavy industrial unit.

The machine handles carbon steel using either plasma or oxy-fuel. Plasma is the go-to for thicknesses up to about 35mm-it's fast, clean, and runs on compressed air with the right setup. Oxy-fuel takes over for thicker plate, cutting up to 200mm, though at a slower pace. For most fabrication shops working with structural steel, plate processing, or general carbon steel cutting, this combination covers the majority of what comes through the door.

The gantry beam is constructed from structural steel sections that are welded and then stress-relieved. That stress relief step is essential-without it, the welding process leaves internal stresses that slowly pull the beam out of alignment as it cycles through temperature changes during a day's work. On a machine that's meant to be moved or repositioned, maintaining straightness is even more critical because setup conditions vary.

The rails use rack-and-pinion drive with hardened steel racks. Why hardened? Because soft racks wear unevenly, and that wear shows up as positioning errors. On carbon steel cutting, where tolerances for fit-up are typically ±0.5mm, you can't afford racks that develop inconsistent tooth engagement. The choice of hardened material here isn't about theoretical durability-it's about maintaining accuracy over years of use.

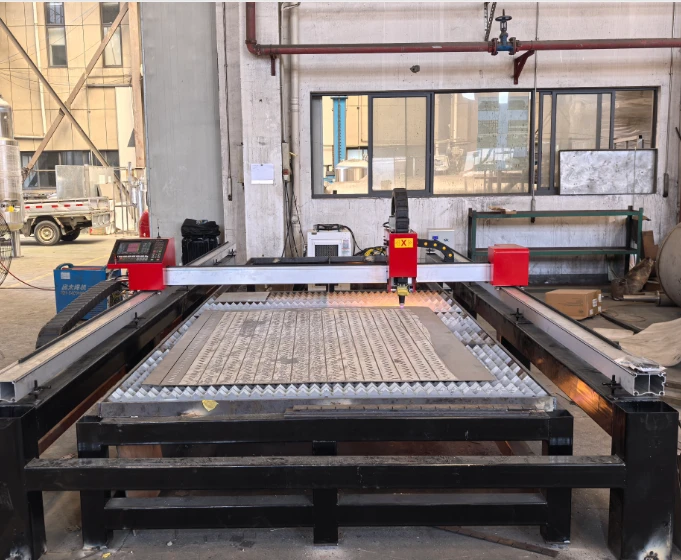

The base rails are laid on a fabricated steel bed that sits directly on the workshop floor. For a small light gantry machine, the bed doesn't need to be bolted down; it just needs a reasonably flat surface. The design is meant to be practical for shops that don't have the luxury of a dedicated cutting bay.

Bilateral drive with precise motor control. Motors on both sides of the gantry keep the beam square to the rails during acceleration and deceleration. On shorter cuts this might not matter, but on full-width traverses, the difference is visible-parts come out straight, and fit-up is consistent.

Automatic torch height control. The system uses arc voltage feedback to adjust torch height as the plate surface varies. This is particularly useful with carbon steel plate, which often comes with mill scale and minor warpage. Without THC, you'd be manually adjusting torch height every few cuts. With it, the machine compensates automatically and maintains consistent standoff distance.

Dual cutting processes in one machine. Plasma for speed up to 35mm, flame for heavy plate up to 200mm. Switching between processes takes minutes. This means one machine covers the range of carbon steel thicknesses that most shops handle, without needing separate equipment.

On-board shape library. The control system holds common shapes-squares, circles, slots, flanges, gussets, and various structural profiles. For routine parts, you simply select the shape, input dimensions, and the machine generates the cutting path. No need for CAD software on quick jobs.

Nesting software for material efficiency. The included software takes DXF drawings and arranges parts on the plate to minimise scrap. On carbon steel, where plate cost is significant, a 5–8% improvement in material use adds up quickly over a month of production.

What a shop actually saved

A fabrication shop that builds conveyor systems for mining had been cutting carbon steel gussets and brackets with a portable magnetic drill and hand torch. Layout took 15 minutes per plate; cutting and cleanup added another 20. They switched to this small gantry machine. Layout time disappeared-the nesting software handled it. Cutting time dropped to 8 minutes per plate. More importantly, the parts were consistent. One operator went from cutting 6 plates per shift to 18, with fewer reworks. The material saving from nesting paid for the machine within about 18 months of part-time use.

Factory quality control process

Each unit runs through a standard test sequence:

Frame alignment and squareness verification

Full-axis motion test at operating speed

Drive torque and backlash check

Torch height control calibration across the table

Functional cut test on sample carbon steel plate

Burn-in period of several hours continuous operation

Test data is logged per serial number and retained. If an issue shows up in the field, we can trace back to the test results.

Frequently Asked Questions

What types of carbon steel can this machine cut, and what's the maximum thickness?
It cuts mild steel, structural steel grades, and low-alloy carbon steel. Plasma handles up to about 35mm with the right power source, while oxy-fuel cuts up to 200mm. For thin sheet under 2mm, plasma cutting becomes less precise due to distortion-consider laser cutting for very thin material.

How long does it take to set up the machine after delivery?
First setup takes a few hours-unpacking, laying out rails, mounting the gantry, and calibration. The machine comes with a detailed manual and we provide remote video guidance. Once set up, you can be cutting on the same day. Subsequent repositioning takes about an hour.

What's the difference between plasma and flame cutting on this machine?
Plasma uses ionised gas and an electrical arc-it's faster on materials up to 35mm, with a narrower kerf and less preheat time. Flame uses oxygen and a fuel gas, cutting slower but handling thicker material up to 200mm. The machine supports both, so you switch based on the job.

Do I need to bolt the machine to the floor, or can it be moved?
The machine is designed to be portable-it sits on the floor using rails and doesn't require bolting down. As long as the floor is reasonably flat and stable, the machine operates accurately. This makes it suitable for shops with limited space or where the cutting area needs to be rearranged.

What support is available if something goes wrong?
We provide remote video support through our engineering team. For common issues like consumable wear or basic fault codes, our engineers can guide you through diagnostics over a video call. For more complex issues, we can arrange spare parts dispatch or, for larger orders, on-site commissioning support.
