Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of portable lightduty gantry cnc cutter steel plate cutting equipment in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

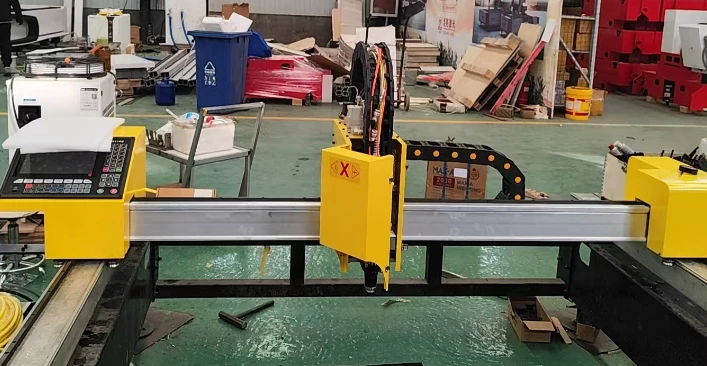

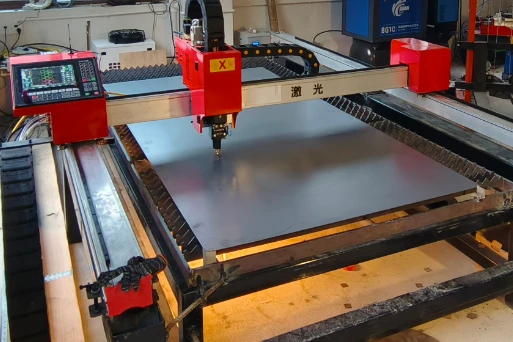

A portable light-duty gantry CNC cutter is like a smaller, more mobile version of the big gantry systems found in large fabrication shops. The basic concept is straightforward: it guides a cutting torch (either plasma or flame) along set paths to cut shapes from steel plate, and the entire machine can be moved around a workshop or even to a job site. This portability is why shops lacking space for a dedicated cutting bay can still achieve accurate, consistent cuts without relying on hand-held torches.

Essentially, it fills the gap between a fixed industrial cutting table and manual torch cutting. You get the accuracy of CNC – the ability to repeatedly cut the same part with reliable edge quality – without requiring a permanent foundation or a large 20-foot table. It's a handy option for shops involved in structural steel, maintenance, or custom metal fabrication where the cutting location isn't always the same.

The hardware and material story

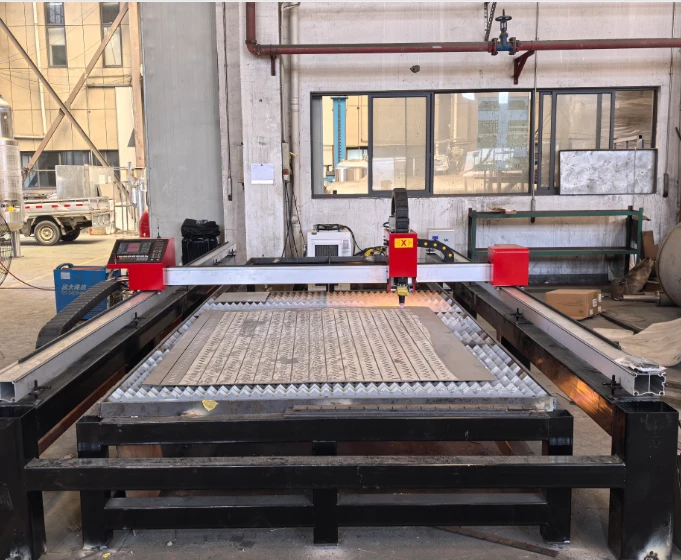

The machine is built on a modular rail system that you lay out on a flat surface. The gantry beam rides on those rails, driven by motors on both sides-what's called bilateral drive . This matters because it prevents the beam from skewing during acceleration, which keeps cuts accurate across the full width of the table. The beam itself is fabricated from structural steel sections, welded and stress‑relieved to maintain stability over time.

Why the material selection matters: The gantry beam and rail components are typically made from mild steel sections that strike a balance between rigidity and weight. You don't want it so heavy that portability becomes impractical, but it needs to be stiff enough to maintain torch position within about ±0.5mm across the cutting area . That's the tolerance range you need for most structural fabrication work-good enough for fit‑up, not meant for micromachining.

The cutting torch rides on a lift mechanism that uses arc voltage height control. This is worth understanding: as the torch moves across the plate, the control system monitors the arc voltage and adjusts the torch height automatically to compensate for plate warpage or surface variations -1-4. It's not perfect-it won't compensate for major bumps-but for typical steel plate with minor surface variations, it prevents the torch from crashing and keeps the cut consistent.

What features actually make a difference in daily use

Bilateral drive with stepper motors. The dual‑drive system keeps the gantry square to the rails as it moves. On a 1500mm‑wide table, skew from single‑side drive might be small, but it adds up across the length of a cut. Stepper motors provide reliable positioning without the cost of servos-adequate for most fabrication work

Integrated height control. The automatic torch height controller uses the arc voltage signal. As the plate surface rises or falls, the torch lifts or drops to maintain a consistent standoff distance. This extends consumable life and improves cut quality-especially noticeable when cutting across a plate with surface rust or mill scale

On‑board shape library. The control system stores common shapes-squares, circles, slots, flanges . For routine parts, you select the shape, enter dimensions, and cut. It saves the time of CAD drawing for simple jobs

Nesting software included. The software takes your CAD or DXF drawings and arranges them on the plate to minimise scrap. It's not as sophisticated as high‑end industrial nesting packages, but for standard fabrication work, it's functional and saves material over manual layout

Where this machine fits-and where it doesn't

This is the right machine for:

Shops cutting mild steel plate up to about 25mm thick with plasma (thicker with flame-up to 200mm, but that's slow) -1-4-6

Job sites where material is staged outside a fixed workshop

Fabrication shops with limited floor space-the rails can be set up and broken down as needed

Maintenance departments cutting replacement parts from plate stock

It's not the answer for:

High‑volume production where you're cutting 8 hours a day-you'd want a heavier, fixed table for that kind of duty cycle

Precision work requiring better than ±0.5mm tolerance-look at laser or waterjet

Stainless or aluminium cutting where plasma dross becomes a major cleanup issue (it cuts them, but expect more edge clean‑up)

What wears out and how often

The plasma consumables-nozzle, electrode, and shield-are the main wear items. How often they need replacing depends on the material thickness and cutting hours. A shop cutting 12mm mild steel all day might change consumables once per shift; a lighter‑duty shop might go a couple of days. You'll know it's time when cut quality degrades-wider kerf, more dross, or inconsistent edge finish.

The drive components-rails and rack gears-need periodic cleaning and lubrication. Weekly maintenance is typical for a production environment. The drag chains that carry cables should be visually inspected for cracks-they're designed for millions of cycles, but they do eventually fatigue.

The cooling system on the plasma power source, if water‑cooled, needs fluid checks. Ignoring this leads to overtemperature trips-always at the worst time.

What kind of floor surface do I need to set this machine up?
You don't need a polished concrete floor-just a reasonably flat surface. A variation of ±3mm across the rail length is acceptable. The machine doesn't require anchor bolts, so you can reposition it as needed. For outdoor use, lay down steel plates or compacted gravel to create a stable base.

How do I transfer cutting files from my computer to the machine?
The control system accepts files via USB flash drive. You create your cutting path in the included nesting software on your office PC, save it as a DXF or standard cutting format, plug the USB into the console, and load the file. No network connection required-simple and reliable.

Can I cut multiple parts from one sheet automatically?
Yes. The nesting software arranges your parts on the plate to minimise scrap, and the machine cuts them in sequence automatically. The torch returns to the start position between cuts. For common shapes, you can use the built‑in shape library instead of drawing each one from scratch.

Do you provide training, and how long does it take to get comfortable?
We offer remote video training for operators-typically two to three sessions covering setup, software, and cutting parameters. Most operators can handle basic cutting within a week of light use. The shape library and straightforward interface reduce the learning curve significantly.

What does the shipping and packaging look like for overseas orders?
The machine is packed in wooden crates, with the rail sections, gantry beam, and control console separately secured. The crate is designed for sea freight. Delivery time varies by destination-typically 4–6 weeks to major ports. We provide a checklist for unpacking and assembly to keep the process organised.
