Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of economic light gantry cnc cutter sheet metal plasma cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

So what is this machine, and why consider it for your shop?

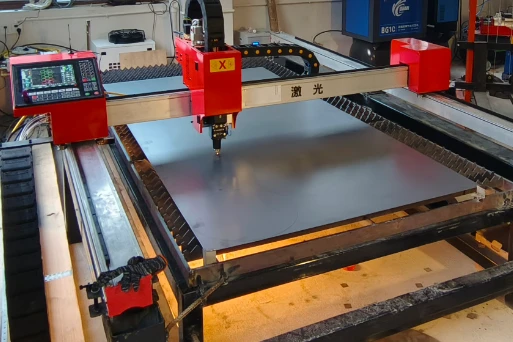

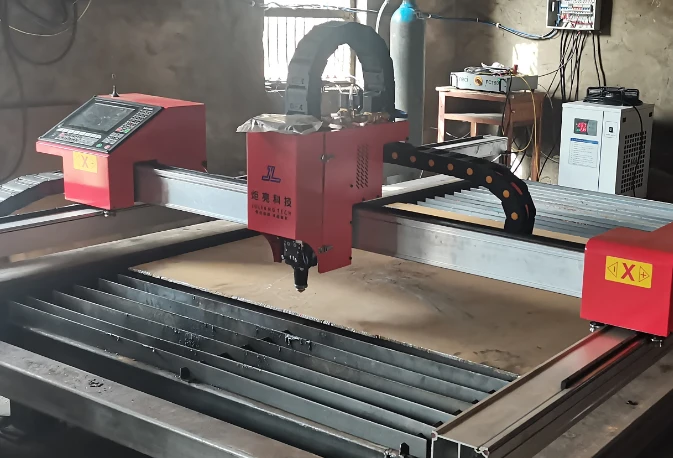

Essentially, an economic light gantry CNC cutter is a computer-guided plasma cutting setup. It uses a simple beam structure to precisely cut sheet metal and plate based on digital designs. The concept is straightforward: load your design, and the machine traces the path while plasma cuts through. What sets it apart from expensive, industrial machines is its 'economic' and 'light' design, meaning it doesn't require a massive foundation or a huge budget.

This machine is perfect for sheet metal ranging from 2mm to 35mm thick, which is ideal for most fabrication shops, HVAC businesses, and general metalworkers. It's not meant for cutting massive plates or running 24/7, but rather for shops needing accurate, consistent cuts without the hefty investment of a large industrial system.

.

Our gantry beams are made from structural steel, welded, and then stress-relieved. This stress relief is more important than many customers know. Without it, internal stresses from welding can cause the beam to warp as the machine heats up during use. While you might not see it at first, this warping leads to cutting inaccuracies after about a year. Stress relief stops this, ensuring long-term precision – it's a crucial detail that doesn't make it into sales materials but significantly impacts how well your machine maintains accuracy over time.

The rails use rack-and-pinion drive with hardened steel racks. The material selection here isn't arbitrary. Soft racks wear unevenly, which creates inconsistent tooth engagement and shows up as positioning errors. On a machine with a ±0.5mm positioning tolerance, uneven rack wear will push you outside that spec within a year of regular use. Hardened racks hold their profile longer, which means the machine stays accurate.

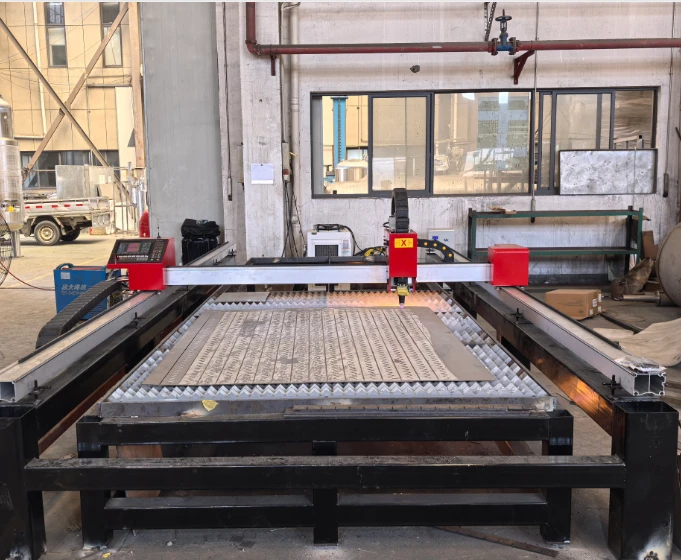

The lightweight gantry construction also means the machine can be set up on a reasonably flat floor without requiring anchor bolts or a reinforced foundation. That's a practical consideration for shops with limited space or businesses that might need to move the cutting area around.

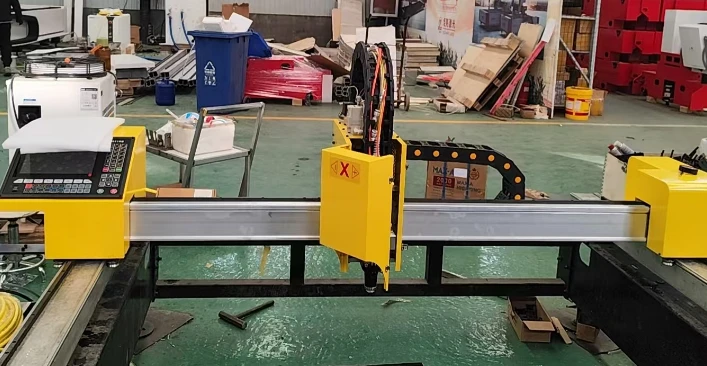

Dual-side drive for consistent movement. Motors on both sides of the gantry pull the beam along the rails. This prevents skewing-especially noticeable on cuts that run across the full table width. Without this, you'd see the beam twist slightly during acceleration, which adds a taper to long parts.

Automatic torch height control that actually works. The system reads arc voltage and adjusts torch height to maintain a consistent standoff distance as the plate surface varies. Sheet metal isn't perfectly flat-it has warpage, mill scale, and minor variations. THC compensates for that automatically, which means you're not manually tweaking height between cuts and you get cleaner edges.

Built-in shape library for quick jobs. The control system stores common shapes-circles, squares, slots, flanges, and basic structural profiles. For routine parts, you don't need CAD software; just pull up the shape, enter dimensions, and cut.

Nesting software included. The software arranges parts on the sheet to minimise waste. On sheet metal work, where material cost is significant, even a 5% improvement in utilisation pays for the software quickly.

Fan-free control cabinet. The drive system is designed without cooling fans in the control cabinet, which means less dust intake in a workshop environment. Fans pull in debris, and debris causes connection problems over time. Simple design choice that reduces maintenance.

What materials can this machine cut, and which ones work best?
It handles mild steel, stainless steel, aluminium, and copper. Best results are on mild steel-clean cuts, minimal dross, and good edge quality. Stainless and aluminium cut well but produce harder dross that's more difficult to remove. Galvanised steel is possible but the zinc coating vaporises and produces fumes-adequate ventilation is essential.

What power supply requirements does the machine have?
The control system runs on single-phase 220V. The plasma power source typically requires 380V three-phase with adequate amperage for the power rating. Check your shop's available supply-most industrial workshops have this, but if not, a phase converter may be needed.

How long does it take to learn to operate this machine?
Most operators are functional within a week. The control system is menu-driven, and the shape library means you don't need CAD for simple parts. Learning nesting software takes a bit longer-a couple of weeks to become efficient-but the included software is designed for ease of use.

Does the machine produce fumes and noise during cutting?
Plasma cutting produces visible fumes and noticeable noise. A water table or downdraft system reduces fume exposure significantly. Proper ventilation is necessary. Hearing protection is recommended for extended use, and operators should wear safety glasses with appropriate shading.

What's the warranty coverage and how does support work?
The machine comes with a one-year warranty covering manufacturing defects and component failures under normal use. Support includes remote video diagnosis, spare parts dispatch, and commissioning assistance for overseas installations. The warranty does not cover consumables like nozzles and electrodes.

A real-world example from a sheet metal shop

A small fabrication shop that builds custom ductwork and fittings for HVAC contractors was cutting all their sheet metal parts with a handheld plasma torch and templates. Every part was different, layout took time, and cutting quality varied depending on the operator. They put in this machine. Cutting time per sheet dropped from about 25 minutes to under 10. The fit-up quality improved because parts were consistent-no more grinding edges to get duct sections to line up. They went from cutting 4 sheets per day to 10, and the rework rate dropped by about 70%. The machine paid for itself in the first 14 months.
