Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of metal cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

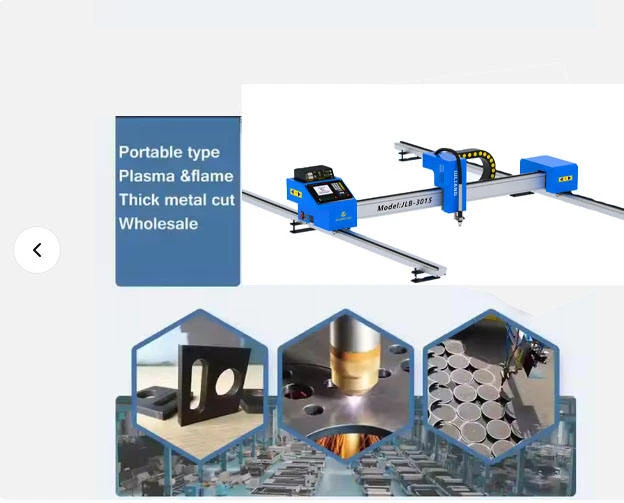

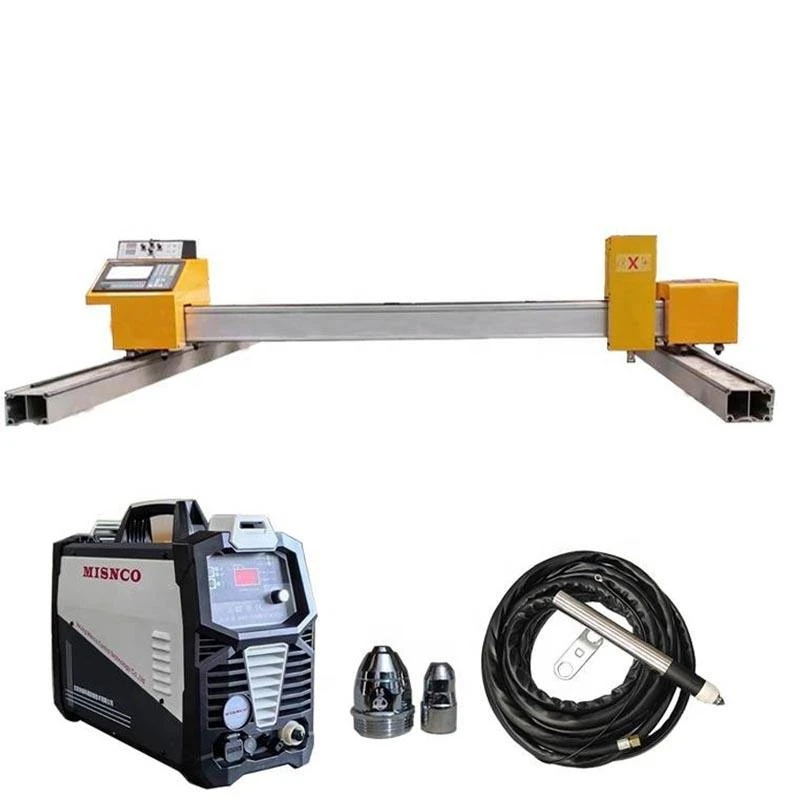

What Is a Metal Cutting Machine?

A metal cutting machine is a computer-controlled system that uses heat to shape flat steel plates into finished parts. Usually, it has plasma or oxy-fuel torches on a gantry that stretches across the steel. A CNC controller directs the torch's movement, melting through the material to create parts ready for fabrication with little to no extra finishing needed.

application scenarios

Structural steel processing - We process the steel plates required for building frames, bridges and structural components.
Shipbuilding - The hull plates and structural components are cut by this machine.
Heavy equipment manufacturing - Mining, construction and agricultural machinery all require thick plate components.
Steel service center - Provides plate processing services for customers.
Pressure vessels and boilers manufacturing - Use thick-walled carbon steel plates, with chamfered edges for welding preparation.
Custom workshop - Provides personalized metal processing services for various industries.

Product Features

Dual-process capability – The machine supports both plasma and oxy-fuel torches. Operators can switch between processes without repositioning the material.

Heavy-duty gantry construction – The gantry uses a reinforced welded beam design with bilateral drive. The structure maintains accuracy across the full travel length.

Bilateral rack-and-pinion drive – Motors on both sides of the gantry move it simultaneously, keeping the gantry square to the bed.

Precision linear guide rails – The gantry travels on hardened and ground rails mounted on machined surfaces. The rails provide smooth, accurate movement.

Automatic torch height control – The THC maintains consistent standoff distance during cutting, compensating for plate warping in real time.

CNC control with nesting software – The controller manages motion, torch firing, gas flow, and height control. Nesting software optimizes part placement to minimize material waste.

Multiple torch capability – The machine can be equipped with multiple torches, allowing simultaneous cutting of multiple parts from the same sheet.

Certificate Display

Other problems

1.How does the machine maintain cut quality on material that is not perfectly flat?

The automatic torch height control (THC) uses arc voltage feedback. When the plate warps, the arc voltage changes. The THC adjusts the torch height in real time to maintain consistent standoff distance. This is standard on industrial metal cutting machines and compensates for material variations.

2.Can a metal cutting machine cut stainless steel and aluminum?

Yes, with the plasma torch. Plasma cuts all electrically conductive metals, including stainless steel and aluminum. For stainless and aluminum, nitrogen is typically used as the assist gas instead of compressed air. Oxy-fuel is only for carbon steel.

3.What is the advantage of bilateral drive on the gantry?

Bilateral drive means motors on both sides of the gantry move it simultaneously. This keeps the gantry square to the bed. On a wide gantry, single-side drive causes the trailing side to lag, which shows up as cut errors across the plate.

4.How long does installation take?

3 to 5 working days from delivery. The machine requires a prepared foundation. Mechanical assembly takes about 2 days, electrical and gas connections take another day, and test cutting takes the remainder.

5.What are the signs that the guide rails need maintenance?

Listen for unusual noise during gantry movement. Check for visible debris on the rails. If the gantry movement feels rough or jerky, clean and lubricate the rails and rack. If the problem persists, inspect the rails for wear or damage. Regular maintenance extends rail life and maintains cutting accuracy.
