Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of handheld laser cleaning machine for heavy rust removal on metal workpieces in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

The Real Issue with Thick Corrosion

If you work with structural steel or heavy machinery, you know the frustration. Rust isn't just surface discoloration-it's a thick, crusted layer that locks onto the metal. Traditional methods like needle scalers and flap discs take forever. You spend an hour hammering and grinding, and you still end up with pits in the steel.

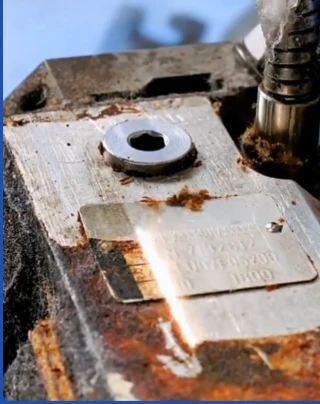

We built this Handheld Laser Cleaning Machine for Heavy Rust Removal on Metal Workpieces to give you a faster, safer alternative. It uses a concentrated pulse of light energy. When that energy hits the thick, dark rust layer, the rust absorbs it and literally sublimates-it turns from solid to gas in milliseconds. The shiny metal underneath reflects the remaining energy, which means you strip the corrosion without harming the original surface. It's not magic; it's just precise physics.

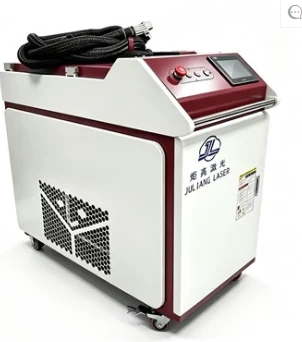

This white and red machine houses a powerful fiber laser. Its energy is sent through a robust, shielded fiber optic cable to the handheld gun. You can adjust the pulse frequency on the top control panel. For tough rust, increase the frequency and move your hand slower, allowing the beam to better break down the thick oxidation.

It's built on the same foundation as our Compact Air-Cooled Laser Welding Machine. The small red unit on top is its chiller, keeping the laser source cool during extended, intensive cleaning. This continuous cooling means you can tackle large, rusted areas without interruption.

Our Material Selection Logic

Designing a machine for heavy rust means you can't cut corners on materials.

The Main Chassis: We fabricated the housing from heavy-gauge, cold-rolled steel. Aluminum is lighter, but steel offers superior vibration damping. When the laser pulses at high power, the recoil is minimal, but the machine can still vibrate. The steel frame keeps the internal optical bench stable, ensuring the beam focus remains consistent throughout your shift. We gave the steel a double-layer powder coating to prevent corrosion from the humid environments where heavy rust is common.

The Handheld Gun: The gun housing is a glass-fiber reinforced polyamide. This polymer handles impacts much better than cheap ABS plastic. During our internal drop tests, the gun was dropped from 1.8 meters onto concrete twice without the lens mount shifting. It also has a non-conductive thermal barrier, so even when you're running the machine at maximum output for an hour, the handle stays cool enough for a bare hand.

The Armored Fiber Cable: The fiber cable is the weak point on most handheld lasers. We use a 10-meter cable encased in a spiral steel wrap and covered with a high-tensile nylon braid. We stress-tested this by dragging it with a 30kg weight over rough concrete for 500 meters. The optical signal didn't degrade. This ensures you're not suddenly losing power midway through a heavy rust removal job because of a cracked fiber.

Each machine undergoes a 24-hour burn-in test at 85% of its maximum power. We continuously monitor the chiller's inlet and outlet temperatures. If the coolant temperature rises more than 3°C above ambient, the unit fails, and its heat exchanger is replaced.

Additionally, we inspect the beam profile with a high-resolution CCD camera. A perfectly round beam guarantees consistent rust removal. An oval beam would lead to uneven, streaky cleaning. We fine-tune the optical alignment until the spot is ideal before shipping.

1. Can this machine remove heavily rusted bolts without damaging their threads?
Yes, it can, but it requires careful operation. The operator needs to angle the laser beam to target the rust without hitting the bolt's threads directly. It's also best to use a lower power setting and make several passes rather than one intense pass, especially for bolts.

2. Does 'heavy rust' mean I need a 2000W machine instead of a 1500W one?
For severely pitted rust, a 2000W machine will be about 30% faster. However, a 1500W machine can still do the job effectively if you're willing to work a bit slower. If you're dealing with a lot of heavy rust in a production setting, the 2000W is a better choice. For less frequent use, the 1500W is more economical.

3. What happens to the rust after it's removed? Does it produce toxic fumes?
The laser converts iron oxide (rust) into fine, dry dust and a bit of vapor. Unlike chemical stripping, it doesn't create toxic gases. However, it's a good idea to wear an N95 mask to avoid breathing in the fine dust and to use a nearby exhaust fan for proper ventilation in your workshop.
