Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of factory direct handheld laser rust removal machine, ce certified in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

Why We Cut Out the Middleman

When you're running a fabrication shop or a maintenance crew, the last thing you want is a sales agent inflating the price of equipment just because they added a logo to it. We've been manufacturing laser equipment since 2014. Over that time, we've learned that buyers prefer honesty over fancy marketing presentations.

That's why we offer this Factory Direct Handheld Laser Rust Removal Machine, CE Certified directly from our production line to your workshop. There is no distributor markup. When you get a quote from us, it includes the manufacturing cost, the logistics, and the support-nothing else. It also comes with CE certification, so you know it meets the safety standards required for import into most regions.

What This Machine Really Does

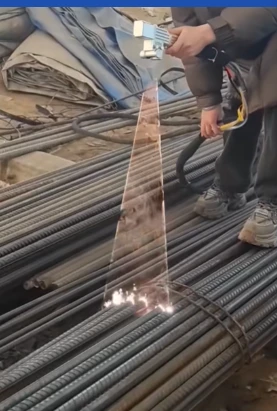

The fundamental purpose of this tool is simple: it removes rust, oxidation, and paint from metal surfaces without using abrasives or chemicals. It generates a focused laser beam that travels through a flexible fiber optic cable to a handheld gun. The energy is absorbed by the dark rust layer, which turns to gas instantly. The shiny metal underneath reflects the beam, so the base material stays untouched.

Inside the chassis, this is essentially a Compact Air-Cooled Laser Welding Machine adapted for surface preparation. The small red box next to it is an air-cooled chiller unit. It pulls heat away from the laser diode during continuous operation, ensuring the optics don't overheat. The control panel on the top allows you to adjust the power and pulse frequency based on the thickness of the rust you're dealing with

Our Material Selection Logic

Since we sell factory-direct, we can't afford to send out a machine that breaks within a year. That means we have to be careful with the materials we select.

The Frame: We use heavy-gauge cold-rolled steel for the main housing. It's coated with a double-layer powder finish to resist corrosion in humid workshops. Steel is heavier than aluminum, but it provides better thermal stability. When the laser is running at high power for long stretches, the frame doesn't warp or shift, which keeps the optical alignment spot-on.

The Gun Handle: The handheld gun is made from a glass-fiber reinforced polyamide. This polymer doesn't transfer heat to your palm, so your hand stays comfortable during long shifts. We also reinforced it to survive accidental drops. Our internal drop test showed no damage after a 1.8-meter fall onto concrete.

The Fiber Cable: The cable is the weakest link in most portable lasers. We use a 10-meter armored cable with an inner steel spring and a tough nylon outer jacket. In our durability test, we dragged it over rough metal edges for 500 meters while pulling a 25kg load. The signal remained stable.

Installation and Commissioning

We keep the direct-to-factory support process simple.

Unbox and Position: Place the main unit and the red chiller on a level floor. Use the casters to move it around.

Connect Coolant Hoses: Attach the two quick-release hoses from the chiller to the main unit.

Fill the Chiller: Add the recommended mixture of distilled water and coolant additive.

Power and Ground: Plug into a 220V grounded outlet.

Remote Calibration: We provide a 30-minute remote setup session. Our engineer guides you through the focus adjustment on the gun until you see a clean, circular spot on a test piece.

Burn-In Test: Every machine runs continuously for 24 hours at 80% of its rated output. We monitor the internal temperature throughout. If the temp rises beyond safe limits, we reject it and replace the cooling components.

Beam Profile Verification: We use a CCD camera to ensure the beam spot is perfectly circular. An oval spot results in uneven cleaning streaks, so we adjust the optics until it's correct.

CE Compliance Check: We verify the electrical safety grounding and EMC shielding on every unit before shipment.

1. What does "Factory Direct" mean for warranty and support?
It means you communicate directly with our engineering team. We do not use third-party agents. If you have a technical issue, you contact our factory support line, and we handle the diagnosis and parts shipment immediately.

2. What is the advantage of having a CE certification?
CE certification ensures the machine meets EU safety standards. It is often required for customs clearance in Europe and many other regions. It also validates that the machine has proper grounding and radiation shielding.

3. Are the 1500W and 2000W models both CE certified?
Yes, both output options are built on the same certified production line and pass the same safety testing procedure. The certification covers the complete electrical and optical systems.

4. How quickly can I start using the machine after receiving it?
Usually within one hour of unpacking. The setup requires connecting the chiller and power. We offer a remote video session on the same day you receive it to guide you through the focus calibration.

5. Can I buy replacement parts separately without going through a distributor?
Yes. As a factory-direct supplier, we stock all parts for our models-including the protective glass, cables, and the laser source. You can order them directly from our customer service team, and we ship them via international express.
