Cut Any Tube Shape. Load It. Forget It.

If your shop cuts round tubes, square tubes, rectangular tubes, waist-shaped tubes, hexagonal tubes, D-shaped tubes, or odd profiles, you already know the common pain points: constant clamping adjustments, slipping heavy tubes, and inconsistent accuracy.

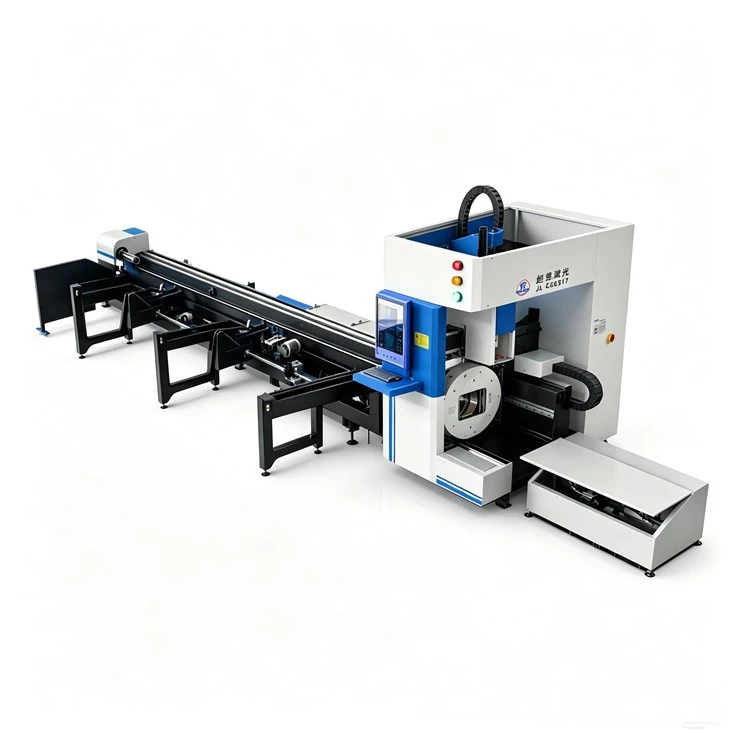

This laser tube cutter for round and square solves those problems. It handles a wide range of hollow sections - straight from the rack to finished cuts - with automatic or semi-automatic feeding and fully controlled precision.

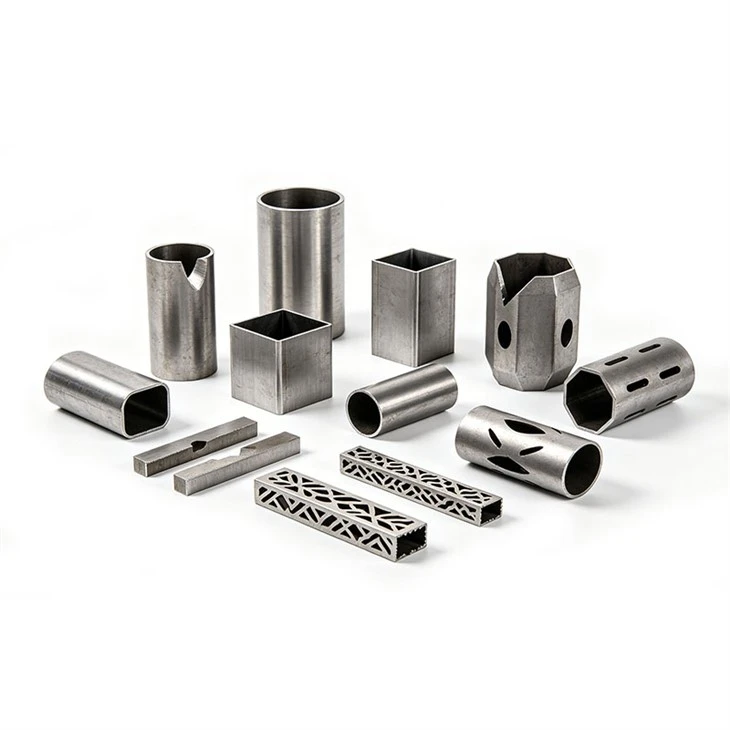

What This Machine Cuts

Round tubes
Square tubes
Rectangular tubes
Waist-shaped tubes
Hexagonal tubes
D-shaped tubes
Irregular / special-shaped tubes
If it is a hollow section, this laser tube cutting machine handles it.

Technical Specifications

No.	Parameter	Unit	Value
1	Processing range	mm	Round tube: φ12–φ220 / Square tube: □12–□150
2	Chuck clamping range (one-time)	mm	Gear 1: φ12–φ118 / Gear 2: φ116–φ222 (gear change within 10 min)
3	Y / Z / W travel	mm	6600 / 250 / 350
4	XY positioning accuracy	mm	±0.03
5	X-axis repeatability	mm	±0.03
6	B-axis repeatability	arc min	≤5
7	Max B-axis speed	RPM	120
8	Max XY acceleration	G	1.2
9	Max X idle speed	m/min	100
10	Max Y idle speed	m/min	120
11	Manual loading length	mm	≤6600
12	Automatic loading length	mm	5600–6400
13	Loading cycle (first / subsequent)	s	≤50 / ≤20
14	Max single tube weight (manual load)	kg	120

Full-length cutting accuracy: Positional deviation within 0.15mm across the entire 6+ meter tube length - reliable and repeatable.

Core Features - Designed for Heavy Tubes and Long Production Runs

1. Pneumatic Chuck + Follow-Up Support - Secure Clamping
The pneumatic chuck provides consistent clamping force. The follow-up support travels with the tube to reduce sagging. Heavy pipes stay stable during cutting.

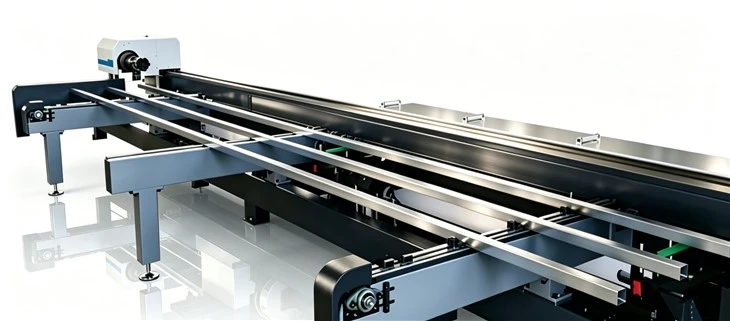

2. Automatic or Semi-Automatic Feeding - Less Waiting
First loading takes ≤50 seconds. Subsequent cycles take ≤20 seconds. Operators can load the next bundle while the laser tube cutter continues working.
3. Fast Gear Change - One Set of Jaws, Two Ranges
Switch from small round tubes (φ12) to large square sections (□150) in about ten minutes. One set of jaws covers two gear ranges - no need to search for extra parts.
4. High-Speed Rapid Traverses - Shorter Idle Time
X-axis: 100 m/min
Y-axis: 120 m/min
B-axis rotation: 120 RPM

Applications

Industry	Typical Parts
Steel structure	Railing posts, pipe trusses, square tube frames
Construction machinery	Roll cages, hydraulic tube supports, chassis tubes
Furniture & home appliances	Chair frames, table legs, display racks
Automotive manufacturing	Roll bars, seat frames, exhaust tube sections
Fitness equipment	Gym machine frames, handlebars
HVAC	Round duct sections, square plenum connectors

Customer Success Stories

Case 1: Mexico - From Cold Saw to Laser
Background:
A structural steel fabricator in Mexico produced railings and trusses using round and square tubes. Their cold saw was slow, left burrs, and required secondary drilling for intersecting cuts.
Solution:
One laser tube cutter for round and square with automatic feeding and pneumatic chuck.
Results (within 6 months):
Cutting speed increased by 3x
No secondary processing needed for intersecting cuts
Material utilization improved by 18%
One operator now runs two machines

Case 2: Thailand - Higher Output with Faster Changeovers
Background:
A fitness equipment manufacturer used hexagonal, square, and D-shaped tubes. Frequent clamp changes (8 minutes each) and tube slipping affected productivity.
Solution:
Laser tube cutting machine with pneumatic chuck and follow-up support, supporting odd shapes and quick changeovers.
Results (within 3 months):
Changeover time reduced to 10 minutes (from 45 minutes)
Monthly output increased by 2.2x
Scrap rate reduced by 22%
Accuracy stable at ±0.15mm over full tube length

Case 3: Poland - One Machine Replaces Three Processes
Background:
An HVAC contractor cut round and square tubes for ducts and connectors. The original workflow required sawing, drilling, and deburring - three separate machines and steps.
Solution:
One automated laser tube cutter with high-speed B-axis (120 RPM), integrating cutting, hole-making, and parting-off.
Results (within 4 months):
Three processes merged into one
Cycle time per part reduced by 55%
Shop floor space reduced by 30%
Lead time shortened from 10 days to 4 days

Company Strength - Built on Real Manufacturing Experience

Hebei Juliang Technology Co., Ltd. entered the CNC cutting field in 2014. Three factory expansions later (2014 → 2018 → 2025), we operate a super factory with production equipment that proves our capability:

Large laser cutting machines (we cut our own parts)
Gantry milling machines
Swivel arm drilling machines
Laser welding machines
High-precision collimators

Certifications & recognition:

High-tech enterprise
Hebei Province science & tech SME
Specialized, refined, characteristic & innovative enterprise
Multiple invention patents and utility model patents
CE certified

Service That Starts at Purchase - Not When Something Breaks

Service	How It Works
Free sample cutting	Send a tube profile drawing. We cut it on a showroom machine and provide a video of the result.
24/7 remote video support	Multiple engineers available - no phone tree.
1-year warranty	Whole machine: 1 year. Laser generator: 2 years.
Spare parts dispatch	Within 48 hours after fault confirmation.
Return-to-factory repair	Free repair under warranty or quoted repair out of warranty.
