What This Machine Is

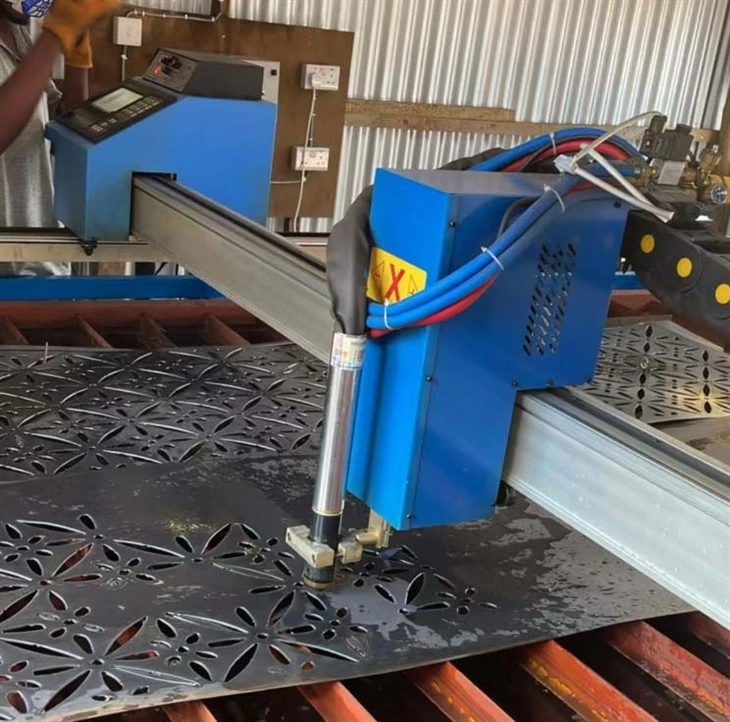

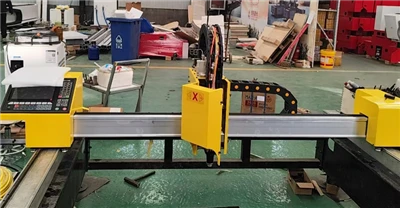

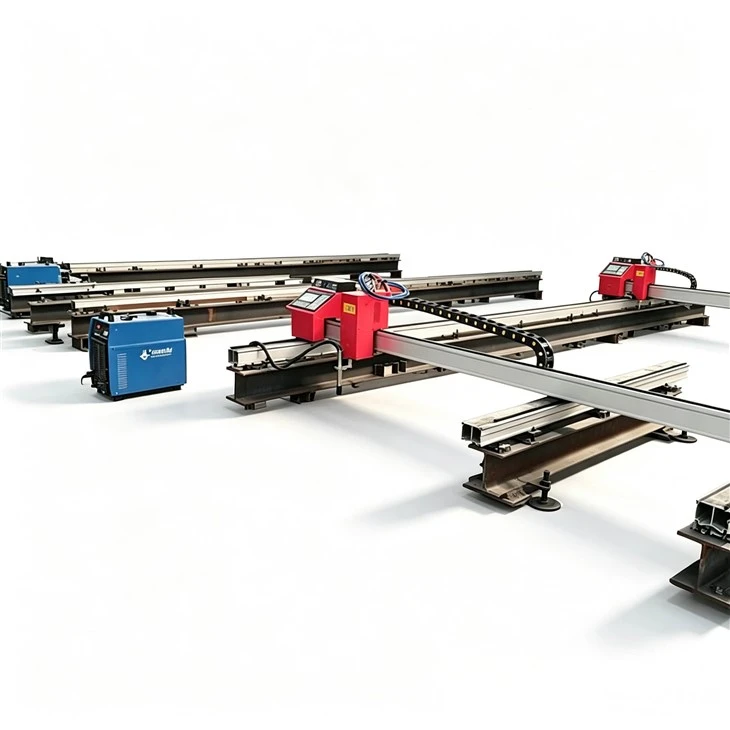

A compact gantry CNC cutter is a computer-controlled thermal cutting system with a reduced footprint, designed for workshops where floor space is limited but the need for full-size plate processing still exists. The machine features an overhead bridge-the gantry-that moves across a cutting table, carrying one or more cutting torches along programmed paths. Unlike full-size gantry systems that can take up 20 square meters or more, a compact gantry machine typically occupies about half that space while still handling standard 1500×3000mm (5×10 foot) steel sheets.

What makes this machine different from smaller table-type systems is the gantry design itself. Instead of moving the cutting table, the gantry moves over the stationary table. This means you can process full sheets without repositioning the material. You load the plate once, the machine cuts all the parts, and you unload. No repositioning, no wasted material from scraps that don't fit the table.

Here's what "compact" truly signifies for this machine: it's not just a buzzword, but a result of deliberate engineering to shrink its size without compromising its ability to handle standard sheet sizes.

First, the bed design is different. Large gantry systems often have beds that stretch beyond the cutting zone to support robust construction. A compact system features a more streamlined bed design. While the frame remains sturdy, any overhang is kept to a minimum. This leads to a machine that's roughly 30–40% smaller in overall footprint than a standard gantry system with an identical cutting area.

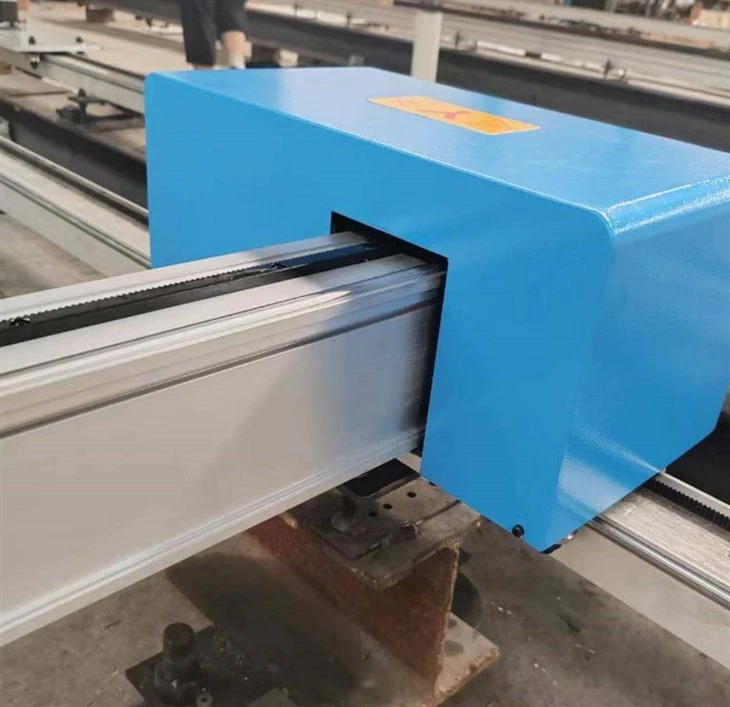

The gantry is also lighter. Instead of bulky steel beams, compact gantries commonly utilize aluminum or lighter steel sections reinforced with ribs. This reduced weight means smaller motors, lighter rails, and less need for extensive structural support – all contributing to a smaller machine footprint.

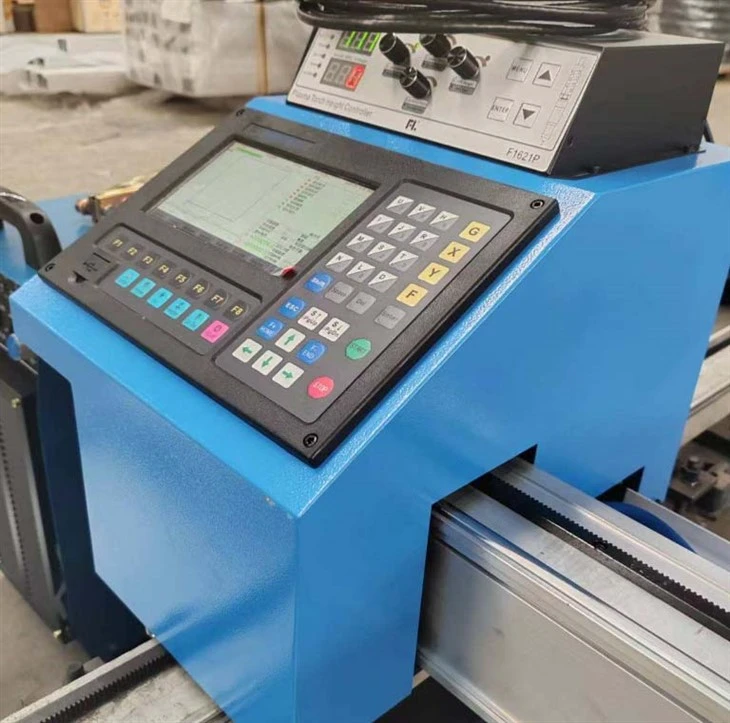

Furthermore, the electrical cabinet is integrated differently. Rather than a separate cabinet consuming extra floor space, compact systems typically mount the control unit onto the machine frame or use a more compact, built-in unit.

This means you get a machine that can fit into workshops where a full-sized gantry system simply wouldn't. You still have the same 1500×3000mm cutting area, but the machine occupies about 4–6 square meters instead of 8–12.

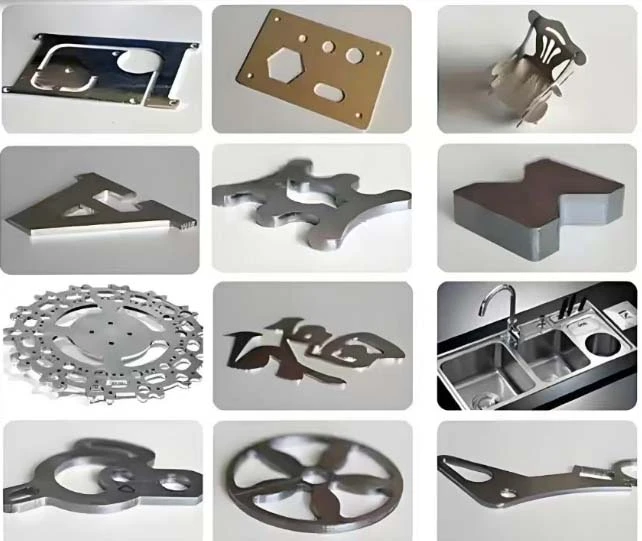

A compact gantry CNC cutter can handle the same materials as bigger machines

Carbon steel

This is the most frequently used material. Plasma cutting achieves clean cuts up to approximately 25mm, while oxy-fuel can cut from 5mm all the way up to 150mm or more.

Stainless steel

Plasma cutting works well for stainless steel, especially with nitrogen or argon-hydrogen gas mixtures. It cuts slightly thinner materials compared to mild steel.
Aluminum

Plasma is also used for aluminum. Because aluminum dissipates heat quickly, you'll need to use higher gas flow rates.
Other metals

Conductive metals like copper and brass can also be cut with plasma.

This machine is suitable for plate and sheet metal and can include bevel cutting options for weld preparation.

Our Certificate

FAQ

01/

How compact is the compact version compared to a standard gantry system?

A compact gantry system typically occupies 30–40% less floor space than a standard gantry system with the same 1500×3000mm cutting area. The reduced footprint comes from optimized bed design, lighter gantry construction, and integrated control cabinets. The trade-off is lower rigidity and duty cycle, but for small to medium shops, the space savings are worth it.

02/

Does the machine require a special foundation?

Compact systems are lighter than full-size gantry systems, so the foundation requirements are less demanding. However, the machine still needs a level concrete floor. The manufacturer provides foundation drawings. Uneven floors cause alignment issues that affect cut accuracy.

03/

Can I cut full 5×10 foot sheets without repositioning?

Yes. The 1500×3000mm cutting area matches the standard 5×10 foot steel sheet. You load the sheet once, the machine cuts all your parts, and you unload. No repositioning means less handling time and fewer errors.

04/

To keep the machine running smoothly, here's what needs to be done:

Each day: look over torch consumables, verify gas pressure, and remove slag.

Each week: give the torch body a clean, inspect gas connections, and oil the rails.

Each month: swap out any worn-out consumables, check the drive motors, and confirm the machine's positioning is accurate.

Consistent maintenance is really important for maintaining great cut quality and making sure your machine lasts a long time.
