Product Overview

A fiber laser cutter uses a solid-state laser source where the beam is generated in a doped optical fiber and delivered through a flexible cable to the cutting head. The wavelength is about 1.06 microns-roughly one-tenth of a CO₂ laser's wavelength. That shorter wavelength is absorbed more efficiently by metals. The beam doesn't bounce off the surface. It goes in.

What Can Go Wrong or Wear Out

Fiber lasers generally need less upkeep than CO₂ lasers, but they still require attention.

Protective lenses are the most delicate part. Located at the base of the cutting head, directly in the path of the laser, they can get coated with spatter and dust. A dirty lens absorbs laser energy and might crack-replacing a cracked lens can cost thousands. Clean yours daily with lens paper and alcohol. If you notice persistent spots, it's time for a replacement. A new lens is far cheaper than fixing a bad cut.

Nozzles are responsible for directing the assist gas. Their orifices can wear down over time, becoming larger or misshapen. This wear leads to uneven gas flow, resulting in jagged edges or excessive dross. Nozzles are inexpensive, so it's wise to keep spares handy.

Ceramic rings are designed to be replaced. If the cutting head collides with the workpiece, the ceramic ring will break first, protecting the costly cutting head. Always have extras available.

The cooling system is a frequent culprit for breakdowns, especially in summer. Over 60% of equipment malfunctions during warm weather stem from cooling system problems or moisture damage. Regularly check your chiller's water level and keep its filters clean. If your machine starts cutting erratically during a heatwave, inspect the coolant before assuming the settings are off.

Guide rails need consistent cleaning and lubrication. Metal dust and cutting residue can act like an abrasive, damaging the rails. Clean them every day and lubricate them weekly.

What Makes a Laser Cutter a Good Investment

The machine's operation is simple: the beam cuts metal, but the precision lies in the finer points.

The frame is crucial for keeping the gantry perfectly aligned with the bed. A robust frame resists flexing, which on a 3-meter bed, can lead to errors even from tiny movements. Frames that have undergone stress relief maintain their straightness for longer.

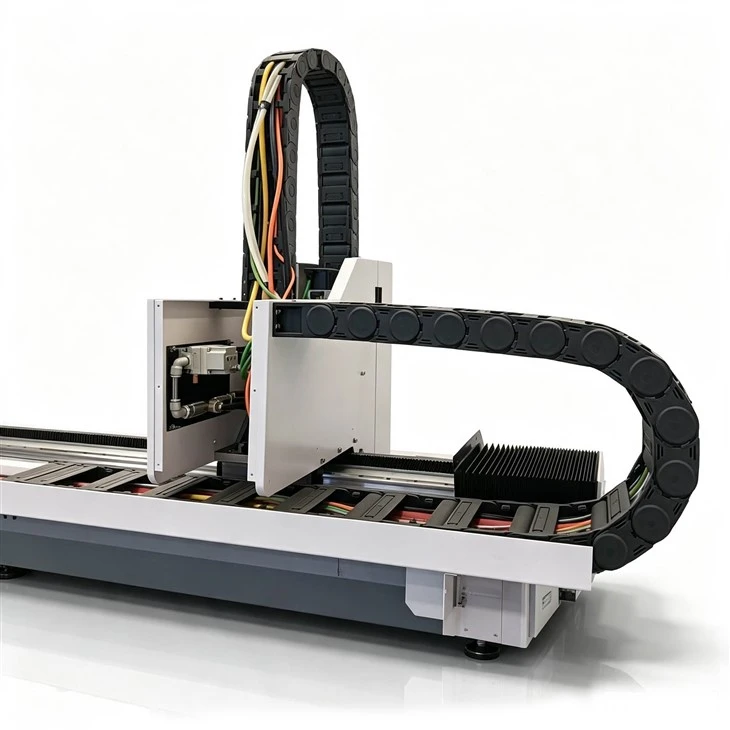

The drive system ensures the gantry moves smoothly and stops precisely. Rack-and-pinion systems paired with servo motors are common. Accuracy hinges on minimizing backlash, or play in the gears; less backlash means better precision.

The cutting head houses the focusing lens and a protective window. This window can get dirty, affecting beam transmission. A clean window allows the beam to pass through effectively, while a dirty one absorbs energy and risks cracking. The head should be designed for easy cleaning.

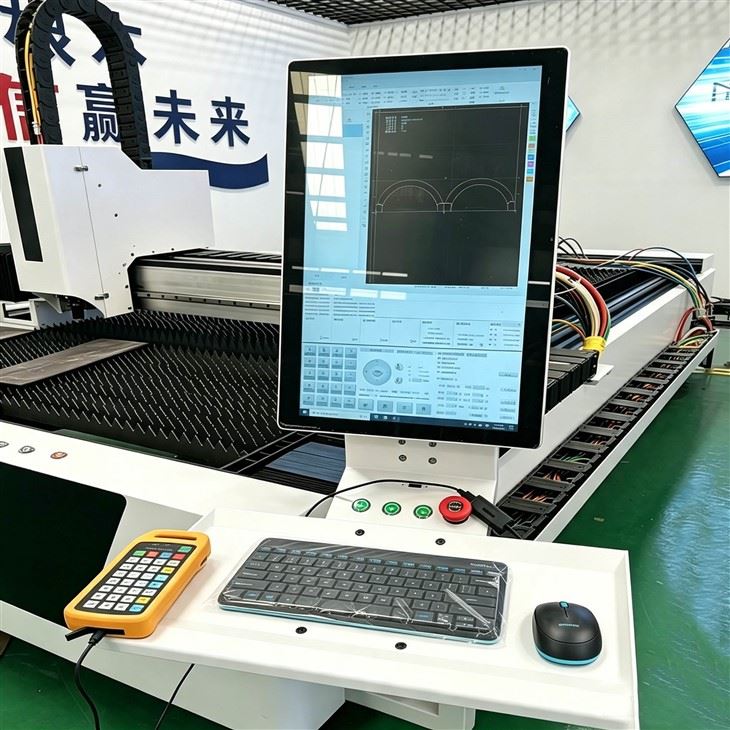

The control system is the operator's interface. An intuitive system is key. One shop saw their setup time decrease from 15 minutes to just 30 seconds with an improved control system. This leap in efficiency isn't just about ease of use; it directly boosts productivity.

case

A Guangdong-based manufacturer specializes in commercial kitchen equipment, crafting items like stainless steel countertops, shelving, and bespoke fabrications. Previously, they relied on an external service for cutting, which resulted in lead times of 3-5 days and variable quality. After we installed a 6kW fiber laser cutter, specifically set up for stainless steel with nitrogen assist, they now handle all their cutting internally. This has slashed lead times from days to mere hours. As the shop manager put it, 'We went from waiting days for parts to cutting them in minutes.'

FAQ

1. What's the difference between a fiber laser and a CO₂ laser?

Fiber lasers are more energy-efficient-about 30-40% efficiency compared to about 10% for CO₂. They require no laser gas and almost no maintenance. The beam is delivered through a fiber optic cable, so there are no mirrors to align. Fiber lasers are also 2-3 times faster on thin to medium materials.

2. Why does the same cutting parameter work differently on different batches of material?

Steel chemistry varies between shipments. A 0.05% difference in carbon content or trace elements like silicon affects how the laser cuts. The machine can't adjust for this automatically. If you notice sudden changes in cut quality, your material supplier changed something. Adjust feed rate by 5-10% rather than changing power or gas.

3. What's the single biggest cause of poor cut quality on stainless steel?

Focus position drift. Stainless reflects the beam more than carbon steel. The reflected heat causes the focus lens to expand and drift. The operator blames the gas or the material. The real problem is the lens heating up. If you see inconsistent cuts on stainless, check the focus position first.

4. How long does it take to learn to operate a fiber laser cutter?

About 1-2 weeks. The CNC controller is straightforward-load the CAD file, select the material and thickness, and start the cut. The main skill is understanding how different materials behave and adjusting parameters accordingly. The machine stores parameters, but the operator needs to know when to adjust them.
