Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of precision gantry fiber laser cutter in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.
Why Precision Matters in Your Daily Work

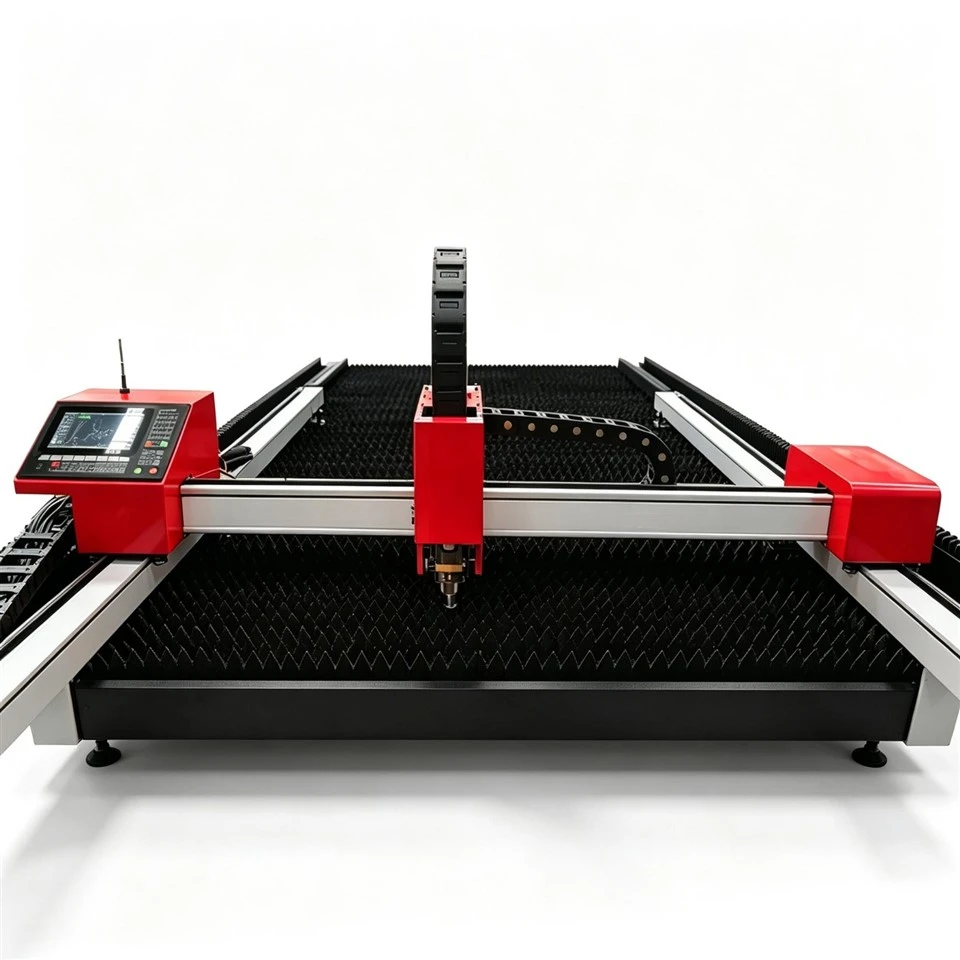

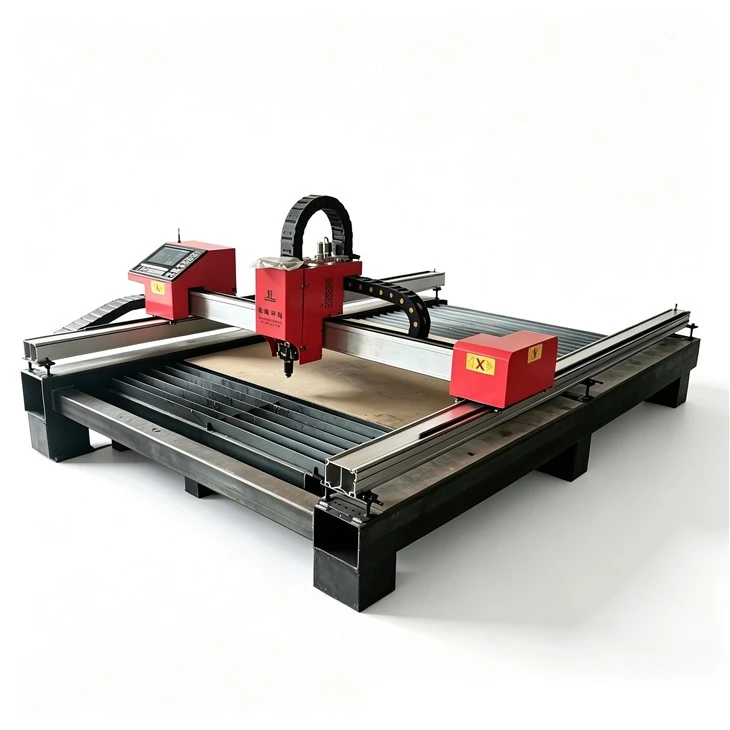

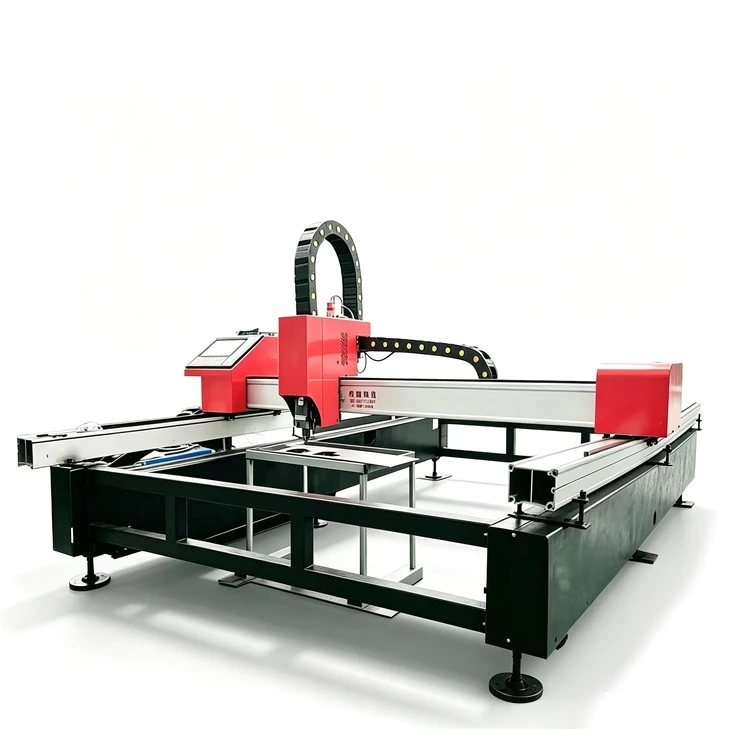

A Precision Gantry Fiber Laser Cutter is a CNC system that uses a fiber laser beam to cut sheet metal with incredible accuracy, down to hundredths of a millimeter. The laser travels via fiber optic cable to the cutting head, melting the metal, while compressed gas blows away the molten material. But, if you're here, you likely already know the basics of how laser cutters work. The real question is about precision – how accurate are they, and can they maintain that accuracy throughout a full shift?
Based on our experience with shops using these machines day in and day out, here's what we've found.
Even with top-notch machines, material quality significantly impacts results. We've had customers report their machines were failing, only to find the issue was a change in steel composition from a different supplier. Identical settings and thickness didn't account for a subtle 0.05% variation in carbon content, which affects laser cutting. If your cut quality suddenly drops, try adjusting the feed rate by 5-10% first. This often fixes the problem before you need to tweak power or gas settings.
Surface condition also matters. Rust, mill scale, and oil all affect how the laser beam is absorbed. We've seen shops with the same machines get very different results because one had steel exposed to weather longer than the other. Clean material cuts consistently; dirty material doesn't.
Finally, material flatness is key. Your sheet's height sensor can handle minor bends, but severe bowing can cause nozzle crashes or unstable focus. We've seen operators blame their equipment when the real problem was poor material storage.
How we build these machines is key to how they'll work for you
Frame welding: Critical joints get full penetration welds. If we used partial welds, they'd flex under pressure. Our veteran welding team knows just how much heat each part needs.
Stress relief: Once welded, the frame is thermally stress-relieved to stop warping over time. Skipping this means your machine would slowly become less accurate.
Precision machining: We use large gantry mills to machine rail mounting surfaces to exact tolerances, making sure the rails are perfectly parallel and on the same plane. If rails aren't aligned, the gantry sticks, and the machine loses precision.
Sub-assembly: We build the gantry, drive systems, and electrical cabinet as separate units. This allows us to thoroughly test each piece before putting it all together.
Burn-in testing: Every Precision Gantry Fiber Laser Cutter makes real production cuts on sample material. We check accuracy, speed, and edge quality. A machine isn't sent out until it's proven on actual metal.
faq
How do I know when it's time to replace the laser source?
Fiber sources don't just die suddenly. They lose power gradually. When you notice you're reducing feed rates or increasing power to maintain the same cut quality, it's time to evaluate replacement. Most users get 8-10 years.
Do you offer technical support in languages other than English?
Our engineering team communicates in English and Chinese. For other languages, we work through translators or use written documentation.

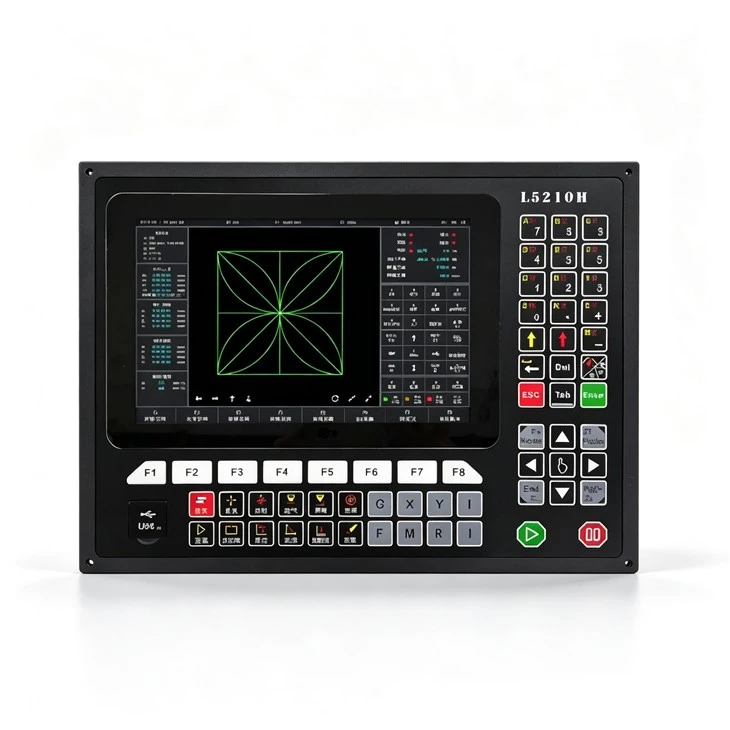

What's the difference between CypCut and Fangling control systems?
CypCut is common in export markets and has an intuitive interface. Fangling is widely used in China and offers more advanced nesting options. Both support DXF and DWG files. We can help you choose based on operator experience.
What should I check when the machine arrives at my workshop?
Inspect all crates for damage before signing the delivery receipt. Take photos of any visible damage. When unpacking, check the gantry rails for scratches and verify that all electrical connectors are intact-shipping vibration sometimes loosens things.
