Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of mini gantry laser cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

Product Overview

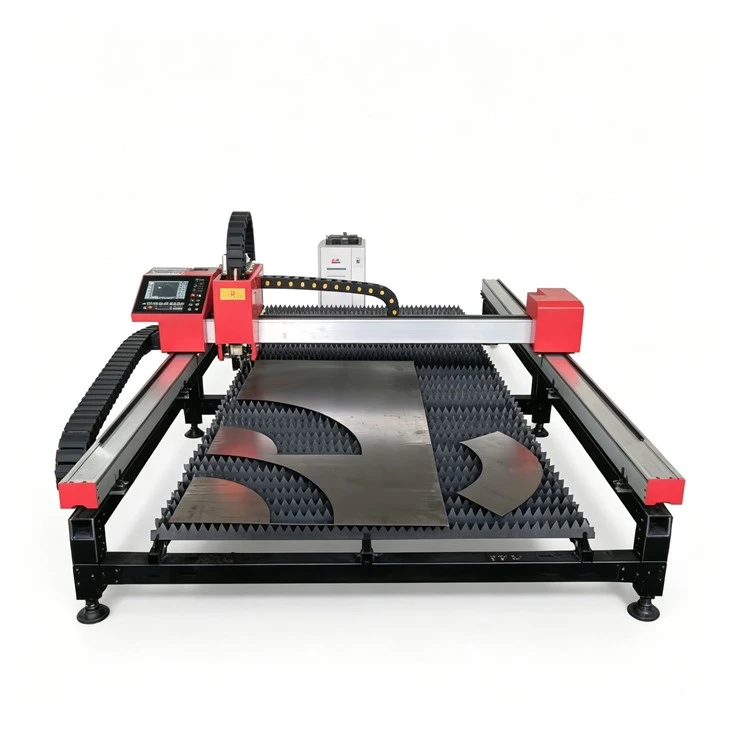

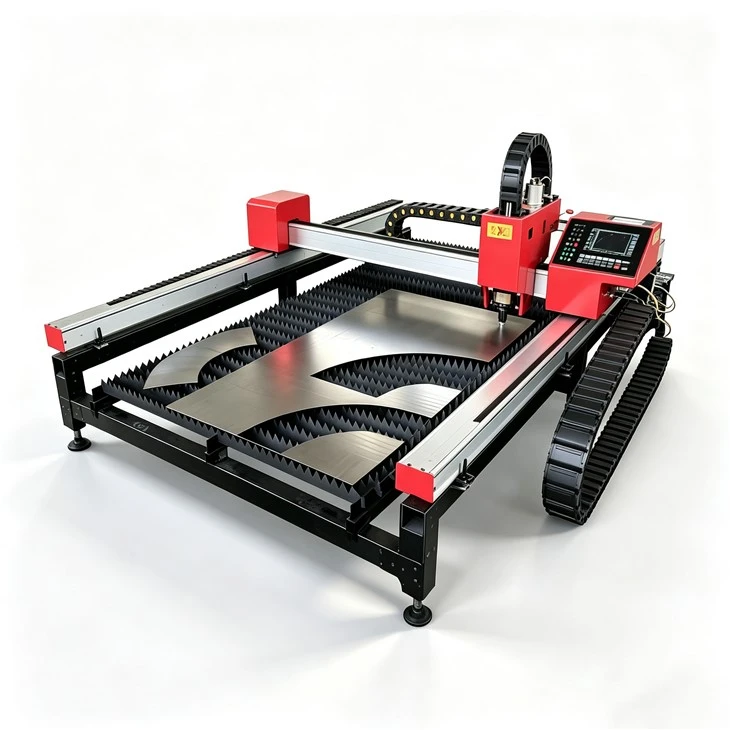

A Mini Gantry Laser Cutting Machine changes that. It's a compact CNC-controlled fiber laser system that gives you the same cut quality as a full-size machine-positioning accuracy of ±0.3mm and repeatability around ±0.1mm-but in a fraction of the floor space. Some models fit in just 4.3 square meters, small enough to roll into a corner when you're not using it.

The gantry is made from aviation-grade aluminum alloy-the same stuff used in aircraft-which makes it light enough for smaller motors and faster acceleration, but still rigid enough to hold tight tolerances. You can run it on standard power, no foundation work required.

Who Actually Buys a Mini Gantry

I've noticed these machines typically end up in three kinds of workshops.

1.Small fabrication shops:This is the most frequent buyer. They work with sheet metal for custom parts, brackets, and enclosures. They lack the space for a full-sized gantry and don't require massive power (like 6000W). A Mini Gantry Laser Cutting Machine offers the same high-quality cuts as a larger unit but uses significantly less floor space.
2.Job shops and prototype shops:These places handle shorter production runs, often between 10 and 100 parts. The machine is great for rapid changeovers and working with various materials with minimal setup.
3.Garage workshops and maker spaces:Hobbyists and small manufacturers who are after professional cut quality without needing industrial-sized gear. Some mini gantries are even portable, making them easy to move around.

Assembly and Requirements

Your machine will arrive in separate parts for on-site assembly.

Foundation:

The machine requires a level concrete floor. Since mini systems are lighter, a reinforced foundation isn't necessary; a standard workshop floor will work. Use the adjustable feet to level the machine.

Power:

A 1000W system, including the chiller, uses approximately 5–10kW. A 3000W system requires 15–20kW. Higher-power machines need 380V three-phase power, while smaller units can operate on 220V single-phase.

Gas:

Oxygen is needed for cutting steel, and nitrogen for stainless steel and aluminum. It's crucial that both gases are clean and dry, as moisture can harm the optics.

Timeline:

Expect to go from delivery to your first cut within 2–4 business days.

certificate

Frequently Asked Questions

Can I use a mini gantry for production work or is it just for prototypes?

Yes, it's used for production work. Small fabrication shops, job shops, and even some larger manufacturers use mini gantries for production runs. The machine handles both prototypes and production batches. The limitation is duty cycle and maximum thickness, not cut quality.

How long does the laser source last?

Fiber laser diodes are rated for 50,000 to 100,000 hours of operation. At one shift, 8 hours a day, 5 days a week, that's 24–48 years. The diodes degrade gradually-you'll notice a slow reduction in power over time. Most users replace the source when output drops below 80% of rated power.

Can the machine be customized for specific production needs?

Yes-working area, laser power, and automation options are all customizable. Send us typical part drawings and production volume estimates. Our engineers will suggest a configuration that fits your operation.

What's the typical delivery time?

Standard configurations ship in 30–45 days. Custom configurations may take 45–60 days. Installation and commissioning add 2–4 business days after delivery.
