Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of hc series industrial handheld laser rust removal machine factory in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

If you're tired of messy sandblasting, toxic chemical cleaners and slow manual grinding for metal surface refurbishment, our HC handheld laser cleaning unit is a practical upgrade for metal processing plants. It strips rust, old paint, welding oxide and surface grease without scratching base workpieces. Speaking of laser processing gear, Compact Air-Cooled Laser Welding Machine is one of our mature product lines, and this HC cleaner shares the same strict component screening standards we use for all laser equipment. We built three power variants (1500W, 2000W, 3000W) to match light touch-up and heavy-duty continuous cleaning jobs for steel frames, farm machinery, molds and auto spare parts.

Industry Solutions

Choose the plan that suits you best.

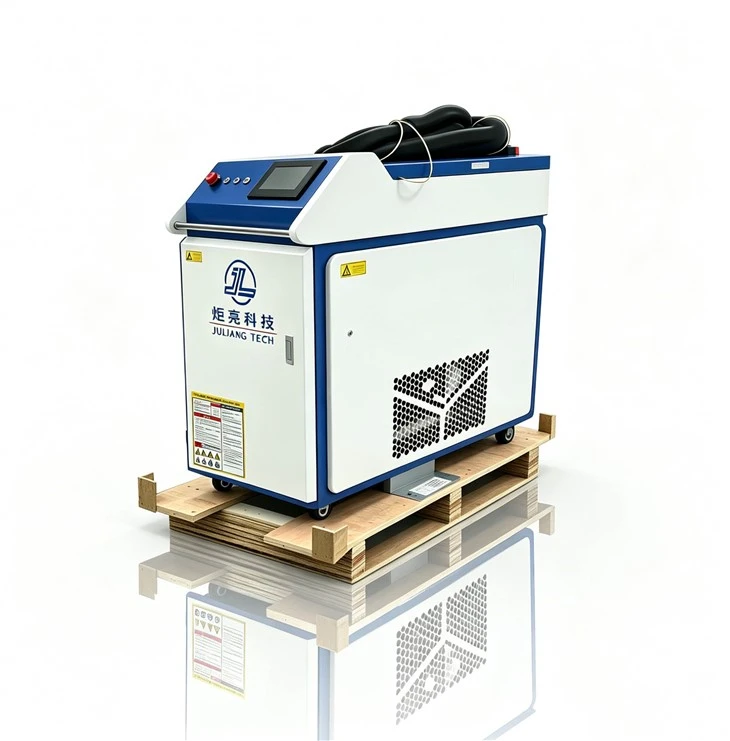

We cut redundant cabinet structures without weakening rigidity. The all-in-one body sits around 900×700mm, so small repair shops with limited floor space can slot it beside existing cutting gear easily. We abandoned bulky separate chillers and embedded the cooling system inside the cabinet; this cuts extra pipeline installation work and avoids liquid leakage risks that often trouble split-type cleaning machines.

Only the gun's protective lens counts as a regular wear part, no sand media, chemical solvents or grinding discs needed for daily work. Based on feedback from clients running 8-hour daily shifts, lens replacement is only required every 3–6 months, slashing recurring consumable spending by over 60% compared with sandblasting equipment.

We source Raycus or MAX fiber lasers as standard, two mainstream reliable brands widely used in global metal fabrication. The 1070nm pulsed beam concentrates energy on surface contaminants only; carbon steel, stainless steel and aluminum alloy substrates stay intact with no thermal deformation, even for thin precision mold components.

Cleaning gun weight ranges from 1.3kg to 1.5kg depending on power. The standard 10-meter fiber cable lets operators move freely around large workpieces like ship components or long steel beams, no need to shift heavy machinery back and forth. Adjustable scanning width from 200–300mm balances efficiency for small fittings and wide structural parts.

Material Selection Logic

Every metal plate for the machine frame is medium-thick carbon steel that goes through full stress relief after welding. We skip thin low-cost iron sheets prone to vibration deformation during long-term scanning work. Internal cooling pipelines adopt seamless stainless steel to resist rust from circulating coolant; internal wiring uses high-temperature resistant silicone cables to avoid aging under long working heat. The gun shell uses aviation-grade aluminum alloy, balancing light weight and impact resistance for frequent site moving. When developing supporting welding equipment like the Compact Air-Cooled Laser Welding Machine, we stick to identical raw material screening rules to guarantee consistent service life across all our laser product lines.

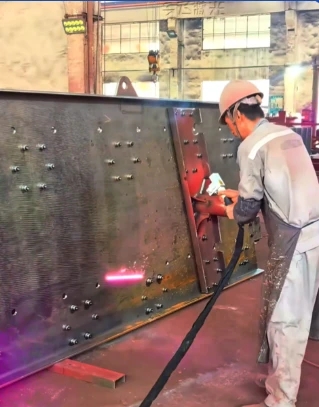

Real Customer Case: Steel Structure Factory in Southeast Asia

This client previously ran two sandblasting booths for rust removal on bridge steel beams. Sand waste polluted their workshop, and finished parts needed secondary cleaning before painting, wasting 3 extra hours per batch. They purchased our 2000W HC laser cleaner last year. Now one operator handles the same daily workload without sand waste, and cleaned beams go straight to the painting station. Their monthly labor and consumable costs dropped by nearly $900. They mentioned they plan to add a second HC unit and pair it with our fiber cutting machines to form a full metal pretreatment production line.

Item	1500W Model	2000W Model	3000W Model	Brief Explanation
Laser Power	1500W	2000W	3000W	Choose low power for small molds, high power for heavy steel rust stripping
Laser Wavelength	1070±10nm	1070±10nm	1070±10nm	Standard fiber laser wavelength for metal surface cleaning
Pulse Width	100–300ns adjustable	100–300ns adjustable	100–300ns adjustable	Narrow pulse avoids heat damage to thin metal substrates
Frequency Range	10–200kHz	10–200kHz	10–200kHz	Higher frequency speeds up light coating removal
Max Cleaning Width	200mm	250mm	300mm	Wider coverage boosts efficiency for large flat workpieces
Scanning Speed	Up to 60mm/s	Up to 70mm/s	Up to 80mm/s	Speed can be slowed for thick, stubborn rust layers
Cooling Method	Built-in Water Cooling	Built-in Water Cooling	Built-in Water Cooling	Embedded chiller supports uninterrupted daily shift work
Cleaning Gun Weight	1.3kg	1.3kg	1.5kg	Lighter gun reduces arm fatigue during long shifts
Standard Fiber Length	10m	10m	10m	15m extended fiber available as optional accessory
Overall Machine Weight	185kg	225kg	265kg	Integrated structure with internal cooling unit
Power Supply	3-Phase 380V/50Hz	3-Phase 380V/50Hz	3-Phase 380V/50Hz	Industrial standard power for factory workshops

What's the core working principle of HC laser cleaning machines? The pulsed fiber laser beam transfers high concentrated energy to surface contaminants. Rust, paint and oxide layers absorb laser energy and peel off instantly, while the metal base reflects most laser light to stay undamaged. It works purely physically with no chemical additives.

Can this laser cleaner replace sandblasting for all metal materials? It works great for carbon steel, stainless steel and aluminum alloy. But it's not fit for ultra-thin metal sheets under 0.8mm; high laser energy may warp thin substrates, for these we still suggest light sandblasting or chemical wiping.

How long does routine maintenance take each week? Only 10–15 minutes weekly: wipe the gun lens, check coolant liquid level and clean the cabinet heat dissipation vents. No complicated disassembly work is needed, and our engineers share detailed maintenance checklists after delivery.

Can we install the HC cleaner on automated production lines? Yes. We offer optional robotic arm mounting interfaces to link the gun with industrial manipulators. Our technical team can send parameter matching guides to help your automation engineer complete integration, and remote debugging support is included.

What delivery and after-sales service do you provide for overseas orders? Standard production cycle is 7–12 working days. We arrange sea freight to major global ports, provide full CE certification documents for customs clearance. After delivery, 24-hour remote video support covers all operation faults, and we ship spare wear parts at discounted factory cost.
