Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of large area large area fiber laser cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

What Is a Large Area Fiber Laser Cutting Machine?

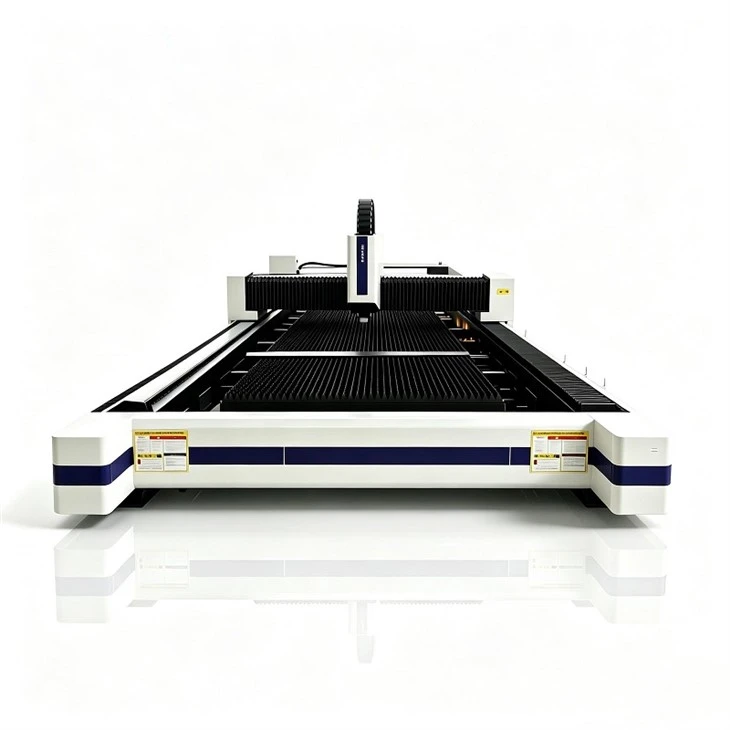

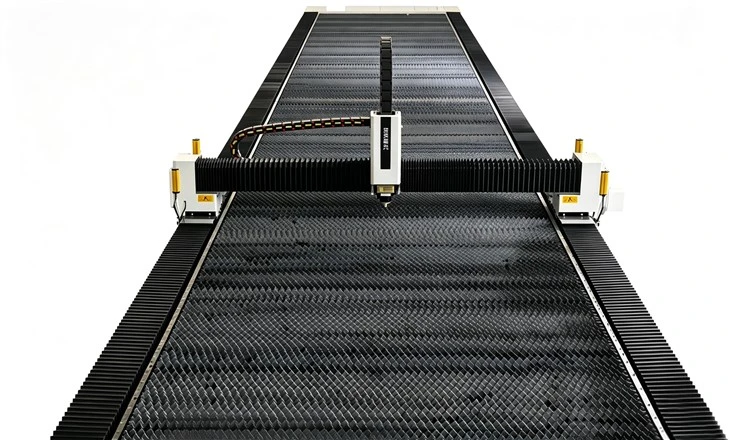

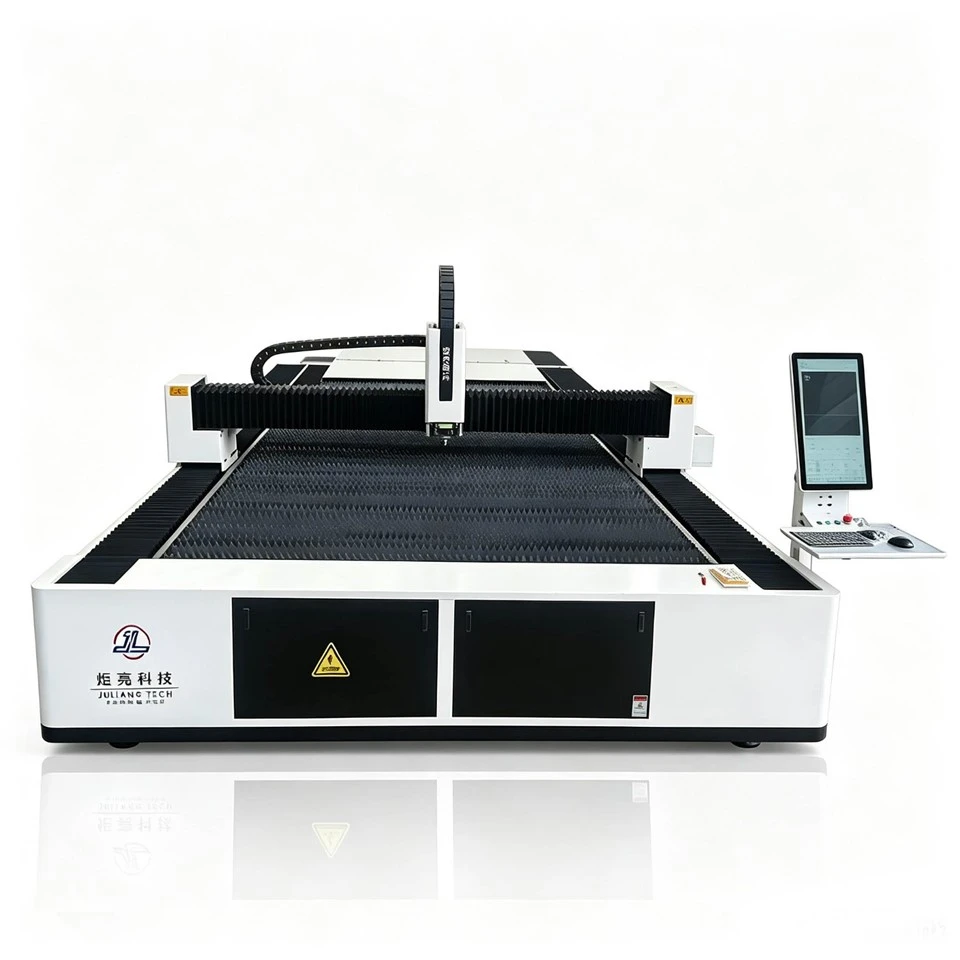

A large area fiber laser cutting machine is a gantry-style CNC system built for processing oversized metal plates - typically 3 to 5 meters wide and 6 to 30 meters long, with some configurations reaching 40 meters or more-. The machine uses a fiber laser source delivered through a fiber optic cable to a cutting head that moves along a gantry spanning the workpiece. The CNC controller manages motion, laser power, assist gas, and focus position automatically.

The term "large area" reflects both the machine's physical scale and its intended application. Unlike standard flatbed lasers with 3,000×1,500mm working areas, large area machines are built around a segmented frame with a modular workbench design-. The frame is welded from structural steel and stress-relieved through heat treatment - heated to about 600°C and cooled slowly over time to remove residual stress from welding.

What "Large Area" Actually Changes on the Shop Floor

The difference between a 3-meter bed and a 30-meter bed is not just the size. It changes how you work.

A standard 3×1.5m machine forces you to process large plates in sections. You cut what you can reach, then reposition the plate, realign, and cut the next section. Each reposition takes time - about 5 to 10 minutes on a typical shop floor. On a 30-meter plate, you might reposition nine or ten times. That is 45 to 100 minutes of non-cutting time per plate.

A large area machine eliminates repositioning entirely. The operator loads the plate once, aligns it once, and runs the program. On a 30-meter plate with multiple parts nested across the sheet, the machine may run for several hours without operator intervention.

The material handling is also different. A 30-meter plate weighs several tons. Handling that material manually is not practical - shops use overhead cranes or forklifts. The large area machine is designed for that workflow. The open bed configuration allows crane access from above, and the modular workbench is built to support heavy loads without deflection.

application scenarios

01/

Shipbuilding - Cutting hull plate sections and structural components. The machine handles plates up to 30 meters long and 3.5 meters wide. Some configurations extend to 110 meters in length and 7 meters in width. The bevel cutting capability eliminates a separate beveling operation.

02/

Structural steel fabrication - Cutting plates for building frames, bridges, and structural components. The machine cuts bevels for weld preparation directly on plate edges.

03/

Steel service centers - Processing plate for customers. The machine runs batches of parts, cutting multiple shapes from each sheet. Material savings compared to plasma add up quickly on high-volume production.

04/

Heavy equipment manufacturing - Cutting components for mining equipment, construction machinery, and agricultural implements. The machine handles the range of thicknesses - from 6mm to 60mm - on the same job.

05/

Pressure vessel and boiler fabrication - Cutting thick-walled carbon steel plate, often with beveled edges for welding preparation.

Here's a quick rundown of upkee

Every Day: Give the protective lens and nozzle a look and clean them with lens paper and alcohol if needed.

Once a Week: Top off the coolant, give the air filters some attention, and clear any gunk from the guide rails.

Once a Month: Check the guide rails and drive systems for wear and tear, and make sure the gantry is lined up correctly.

Parts that tend to wear out: Nozzles, protective lenses, and ceramic rings. The ceramic ring is key, as it's meant to break during a collision to protect the cutting head.

What causes the most trouble: The quality of your assist gas. If it's wet or contaminated, it can damage the optics and mess up your cuts. You'll definitely need a refrigerated air dryer for this.

FAQ

01.What is the difference between a large area machine and a standard bed machine?

Large area machines have beds typically 6 meters or longer and 2.5 meters or wider. Some configurations reach 30 meters or more. Standard machines are typically 3×1.5m. The large area eliminates the need to reposition plates longer than 3 meters.

02.What industries use large area fiber laser cutting machines?

Shipbuilding is the largest application - about 70% of hull structure is large-format steel plate. Other industries include steel service centers, heavy equipment manufacturing, structural steel fabrication, and pressure vessel shops.

03.How does large area fiber laser compare to plasma cutting?

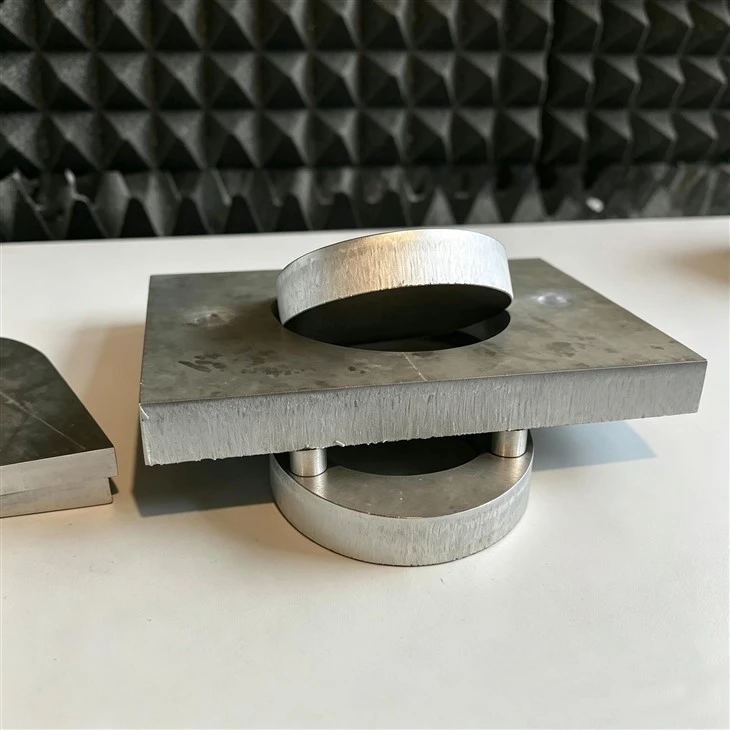

Laser kerf is 0.3–2.0mm versus 3–5mm for plasma - saving 5–8% of material. Laser produces a clean edge requiring little to no grinding. Plasma requires extensive secondary finishing. Laser is faster on material up to about 30mm; plasma may be more economical on very thick sections beyond 60mm.

04.What is the learning curve for operators on a large area machine?

Most operators become comfortable within 1-2 weeks. The CNC controller is similar to standard machines - the difference is the scale of the plate and the nesting software. The main skill is understanding how to nest parts efficiently on large sheets. We provide training during installation and commissioning.

05.How do you handle plate warping on a 20-meter long bed?

The automatic height control system uses capacitive or inductive sensors to measure the distance between the nozzle and the plate surface in real time. It adjusts the Z-axis height continuously during cutting. On a long bed, this compensates for local warping and thermal distortion, maintaining consistent focus position across the entire plate.
