Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of high power fiber laser cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.
Product presentation

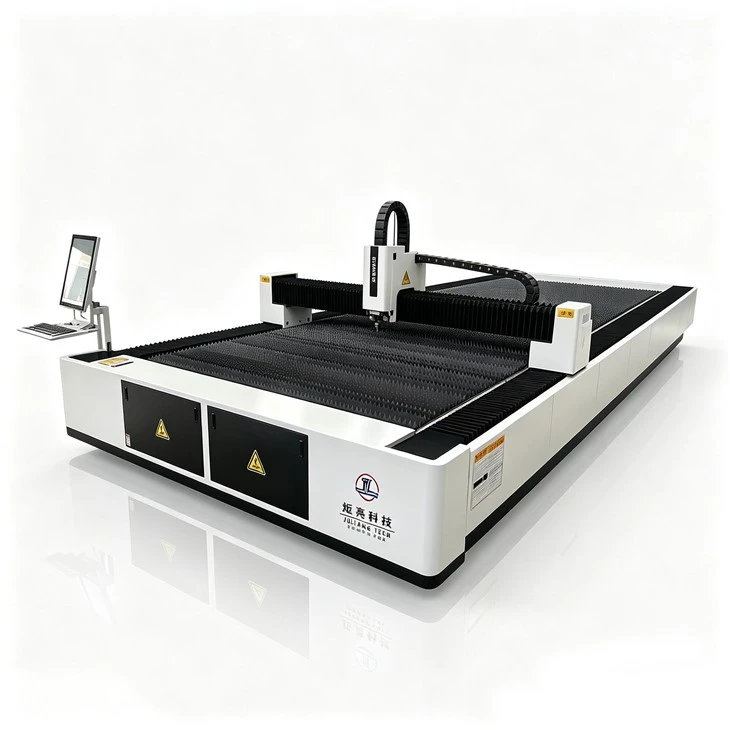

A high power fiber laser cutting machine is a CNC system equipped with a laser source typically ranging from 10kW to 30kW and beyond, designed for processing medium to thick metal plates. The machine uses a fiber laser beam delivered through a fiber optic cable to a cutting head that moves along a gantry spanning the workpiece. The CNC controller manages motion, laser power, assist gas, and focus position automatically.
Why High Power Is Not Just About Thickness
You might think high power is only for cutting thick stuff, but there's another angle. When it comes to thinner materials, more power means faster cutting. A 12kW machine, for example, can slice through 3mm carbon steel roughly twice as quickly as a 6kW model. This boost in speed is substantial if you're processing a lot of thin stock. It translates to quicker cycle times for each piece, allowing your machine to take on more parts each hour and drive down the cost per part. Even though a high-power laser consumes more energy overall, it uses less energy *per part* due to the shorter cut times. Actually, for materials up to 20mm thick, a 12kW setup can be 20-30% cheaper per cutting meter than a 6kW one. Just be prepared for the considerable initial investment that comes with a higher-power machine.
The Structural Challenges of High Power
High power lasers generate significant heat. The machine structure must handle it.
The frame, crafted from structural steel and stress-relieved via heat treatment, ensures stable geometry under the thermal stress of high-power cutting. Frame flex directly leads to cutting inaccuracies.
The cooling system is crucial for high-power lasers. The chiller needs to manage the heat effectively, maintaining precise coolant flow and temperature. As a general rule, a 12kW system usually needs a chiller with roughly 3-5kW of cooling capacity for every 1kW of laser power.
For the optics, both the protective and focusing lenses must withstand high power density. Their material and coatings need to be rated for the power level, and keeping them cool is paramount. The cutting head usually has built-in cooling to ensure the lens stays at the optimal operating temperature.
High-power cutting also demands higher gas pressure and flow. The gas supply system must provide sufficient volume at the correct pressure. Oxygen is used for steel, while nitrogen is for stainless steel. It's important that the gas is clean and dry, as moisture or contaminants can harm the optics.
Where High Power Fiber Laser Cutting Machine Is Used
Shipbuilding: Cutting hull plate sections and structural components.
Heavy equipment manufacturing: Cutting components for mining, construction, and agricultural machinery.
Steel service centers: Processing plate for clients; higher power boosts output.
Structural steel fabrication: Cutting plates for building frames and bridges, with the machine beveling plate edges for welding.
About the Company
Hebei Juliang Technology Co., Ltd. started in 2014 with portable cutting machines. In 2015, the company built its first gantry cutting machine.
The product line now includes laser cutting machines, laser welding machines, plasma cutting equipment, and flame cutting systems. The engineering team handles installation, commissioning, and training. Remote video support is available 24 hours.
What is the real advantage of 12kW over 6kW?
On 10mm carbon steel, a 12kW machine cuts about 2.3 times faster than a 6kW machine. The per-part energy cost is about 20-25% lower with 12kW on materials up to 20mm. The trade-off is the initial investment and power supply requirements.
How much power does a high power laser consume?
A 12kW laser consumes about 40-50kW of electrical power at full output. A 30kW laser consumes about 100-120kW. The power consumption scales roughly linearly with output power.
When does high power make sense economically?
The breakeven point is typically around 8 hours of cutting per day on material over 12mm. At lower utilization or thinner material, a 6kW system is more cost-effective.
What maintenance does the High Power Fiber Laser Cutting Machine require?
Daily lens and nozzle checks. Weekly coolant and filter checks. Monthly rail and drive inspections. Gas quality is the most common source of problems.
