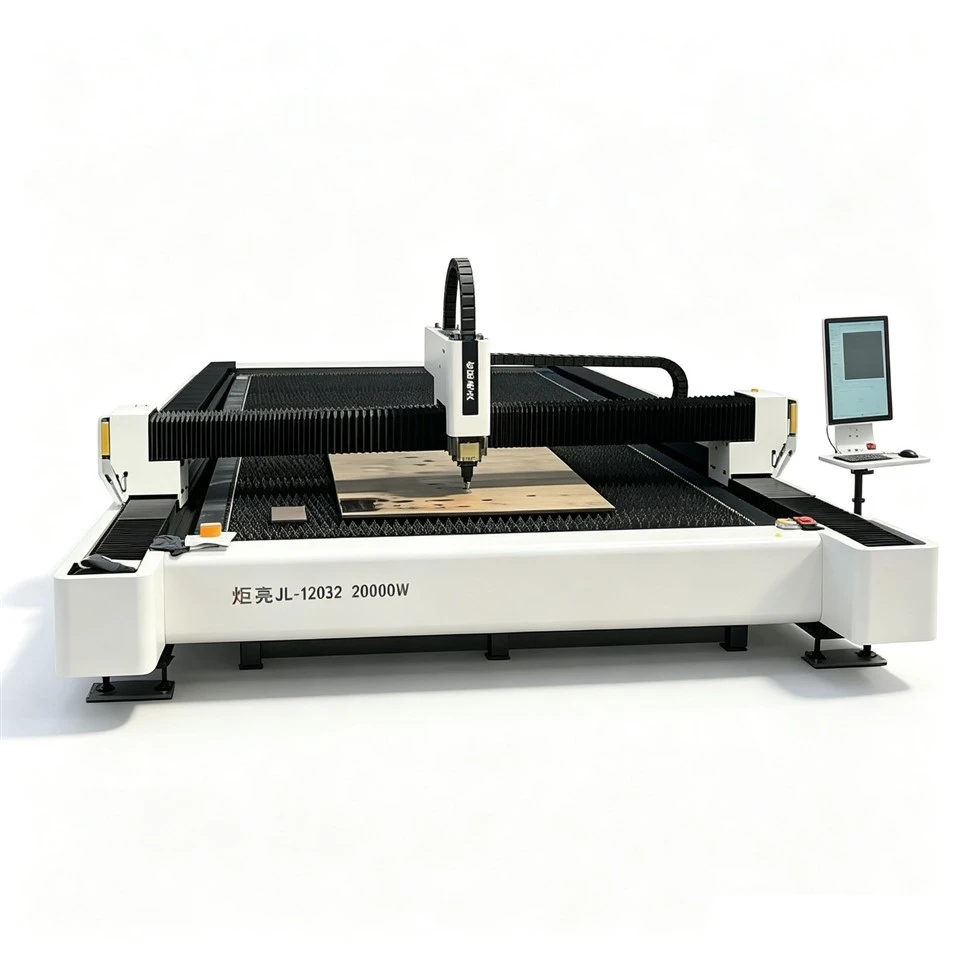

Ground Mount Fiber Laser Cutter

Product brief introduction

Imagine a Ground Mount Fiber Laser Cutter as a large CNC laser system. Its gantry travels on rails fixed straight to the shop floor, unlike those on a raised table. The key difference is that the entire gantry moves along these floor rails, with the workpiece resting on its own sturdy bed, instead of the cutting head moving above a static table.

How It Works

Much like a standard CNC laser cutter, a gantry moves the cutting head over the material. However, the construction differs significantly.

The key to this machine's uniqueness is its ground rail design. Unlike gantries that ride on rails atop a raised table, these rails are secured directly to the factory floor. The workpiece sits on its own sturdy, fixed foundation. This separation of the gantry beam and the worktable prevents heat distortion.

The gantry moves along heavy-duty, floor-mounted rails. Constructed from robust, welded steel with a solid frame, it's built for steady movement over long spans. The use of substantial castings and precision-ground rails ensures no vibration or bending.

The segmented bed features a modular build, with each part independently supported. Each section can be fitted with its own smoke exhaust system. Need a longer bed? Simply add another module. This modularity also lets customers create custom table sizes locally, cutting down on shipping expenses.

A dual servo motor drive system, one on each side of the gantry, keeps the bridge perfectly aligned with the table. If one side gains an advantage, pieces will be cut inaccurately. These ground-mounted machines employ high-torque servo drives and precise racks with very little play.

The laser source offers power from 6000W all the way up to 20000W or more. A fiber optic cable directs the beam to an autofocus cutting head, which automatically adjusts for various materials and thicknesses.

Effective dust collection is vital for this type of equipment. Each bed section is equipped with its own smoke exhaust, ensuring fume extraction across the entire working area.
