What This Machine Is Built For

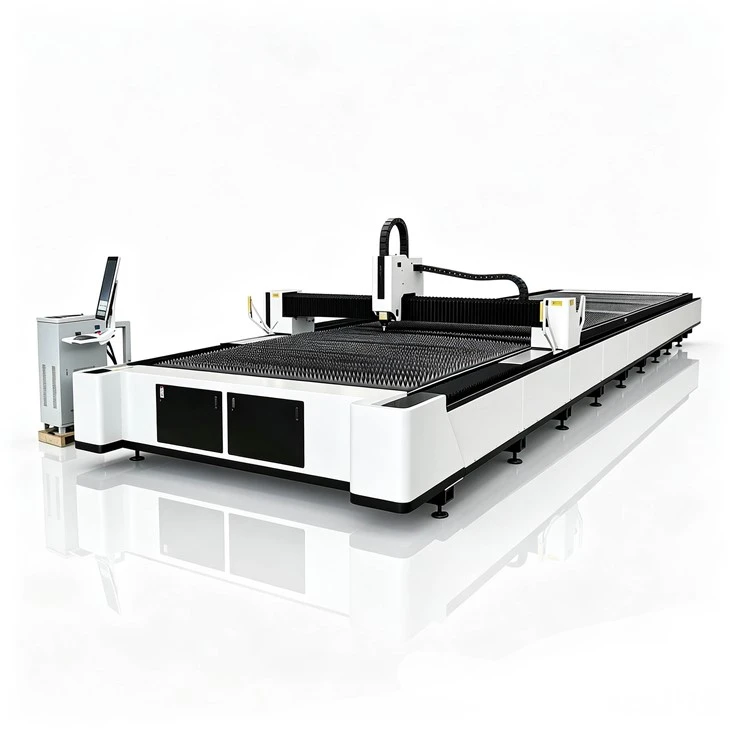

An industrial ground‑mounted gantry fiber laser cutter is exactly what it sounds like – a laser cutting system that sits directly on the shop floor, with a gantry that moves across a fixed cutting bed. No complicated foundation work, no raised platforms. Just a stable base that handles full sheets without vibration or flex.
What that means in practice: you roll in a sheet, set your parameters, and let the machine do the work. It handles carbon steel, stainless, aluminum, and galvanized – switching between them takes no hardware changes. The gantry design keeps the cutting head stable across the entire 3000mm length, so you get consistent edge quality from the first cut to the last. This particular model runs 1500W to 3000W – the sweet spot for shops that cut medium‑thickness material without overpaying for power they don't need.
Key Specifications
| Parameter | Specification |
|---|---|
| Rail Length | 3500mm |
| Rail Center Distance | 2000mm |
| Effective Cutting Area | 1500mm × 3000mm |
| Z‑axis Stroke | 90mm |
| Maximum Speed | 7000mm/min |
| Repeatability | ±0.1mm |
| Position Accuracy | ±0.3mm |
| Laser Power Options | 1500W / 2000W / 3000W |
| Packaging Dimensions (L×W×H) | 3600mm × 600mm × 700mm |
| Machine Weight | 350kg |
Specifications based on factory testing. Actual performance may vary with material quality and assist gas selection.

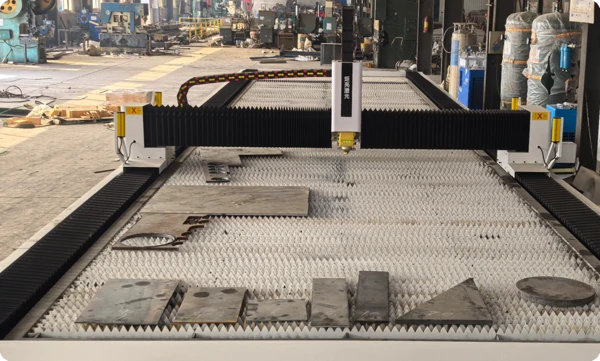

Rigid Gantry That Holds Line Over Full Travel – Compared with smaller cantilever‑style machines, the ground‑mounted gantry maintains alignment across the entire cutting area. We've seen too many machines with deflection at the far end of travel – this one doesn't have that problem. The rail length is 3500mm with a 2000mm center distance, which translates to stable cutting across the full 1500mm × 3000mm working area.
Precision You Can Count On – Position accuracy of ±0.3mm and repeatability of ±0.1mm means nested parts fit together without filing or grinding. On a production run of 100 identical parts, the first and the last are interchangeable. That's what keeps assembly lines moving.
Low Maintenance – No Optical Tuning – Fiber lasers don't need mirror alignments or gas refills like CO₂ systems. The only regular consumables are the protective lens and nozzle – both quick and cheap to replace. Weekly cleaning takes about 15 minutes. That's it.
Energy‑Efficient Operation – Fiber lasers convert roughly 30‑35% of input power to cutting energy, compared to about 10% for older CO₂ technology. With a 3000W setup, the savings show up on your utility bill every month.
Simple Installation – No Special Foundation – Industrial Ground‑Mounted Gantry Fiber Laser Cutter sits on adjustable feet on a standard industrial concrete floor. No reinforced foundation, no vibration isolation pit. We've had customers cutting parts within a day of delivery.
Full‑Sheet Capability in a Manageable Package – The effective cutting area of 1500mm × 3000mm handles standard sheet sizes without repositioning. Packaging dimensions are 3600mm × 600mm × 700mm – compact enough to ship in a standard container.
Continuous Operation for Production Shifts – The cooling system handles sustained runs. No thermal shutdown on 24‑hour cycles with 6mm carbon steel.
Lightweight But Stable – The machine weighs 350kg – heavy enough to stay planted during high‑speed traverses, light enough to move with a forklift if you need to rearrange your shop layout
ABOUT US
Since 2014, Hebei Juliang Technology Co., Ltd. has evolved from a CNC cutting technology startup with a simple portable cutter to a major industry player. We've significantly grown our operations, undertaking three factory expansions, the most recent in 2025, driven by strong international demand. Today, our product line boasts over 20 machine models, encompassing everything from 1500W fiber laser cutters to powerful 30,000W systems and specialized pipe cutters. Our advanced manufacturing facility houses equipment like large laser cutters, gantry milling machines, swing-arm drills, and precision collimators for exact alignment.
The gantry machine sits on the floor and handles full sheets without repositioning. Table‑top machines are smaller – they require material handling and often need partial cuts that later get moved. If you're processing standard 3000mm × 1500mm sheets, the gantry design saves handling time.
Carbon steel, stainless, galvanized, aluminum, and copper. Carbon steel cuts fastest with oxygen assist. Stainless and aluminum cut cleaner with nitrogen. Copper works but needs tighter process control – it's best for thinner gauges.
This is a real concern with ground-mounted systems. We recommend checking rail alignment every 6 months – it's a quick process with a laser interferometer. If the floor does shift, the rail mounting bolts and shims allow for realignment. For areas with known soil settlement issues, we sometimes recommend a steel base frame instead of direct floor mounting – it's more stable and easier to adjust.
The rack and pinion system is designed for long life – typically 8–10 years with proper lubrication. The wear parts are the pinions (the gears on the motors), not the rack itself. Pinions usually need replacement every 3–5 years depending on usage. You'll know it's time when you see a slight "bump" in the cut quality at the same position on every part – that's where the pinion is worn.
Yes. We work with local engineering partners in most markets for on‑site installation and training. For overseas customers, we provide 24‑hour remote video assistance. Warranty: 1 year on the machine, 2 years on the laser source.
