Product brief introduction

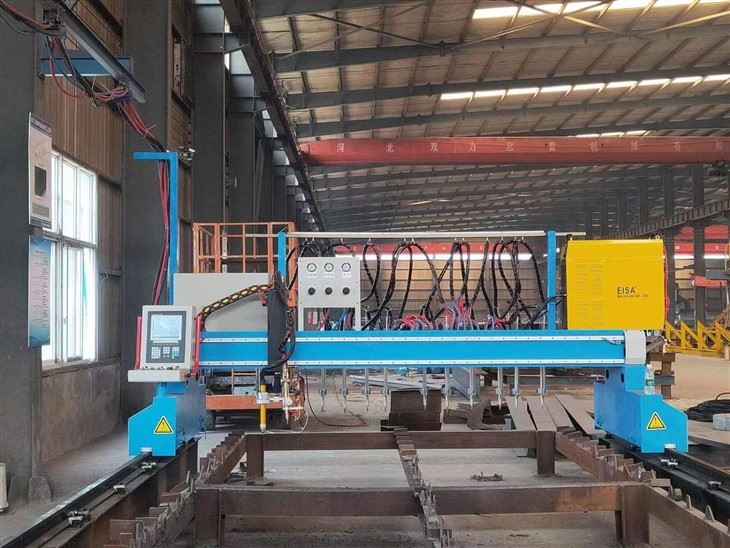

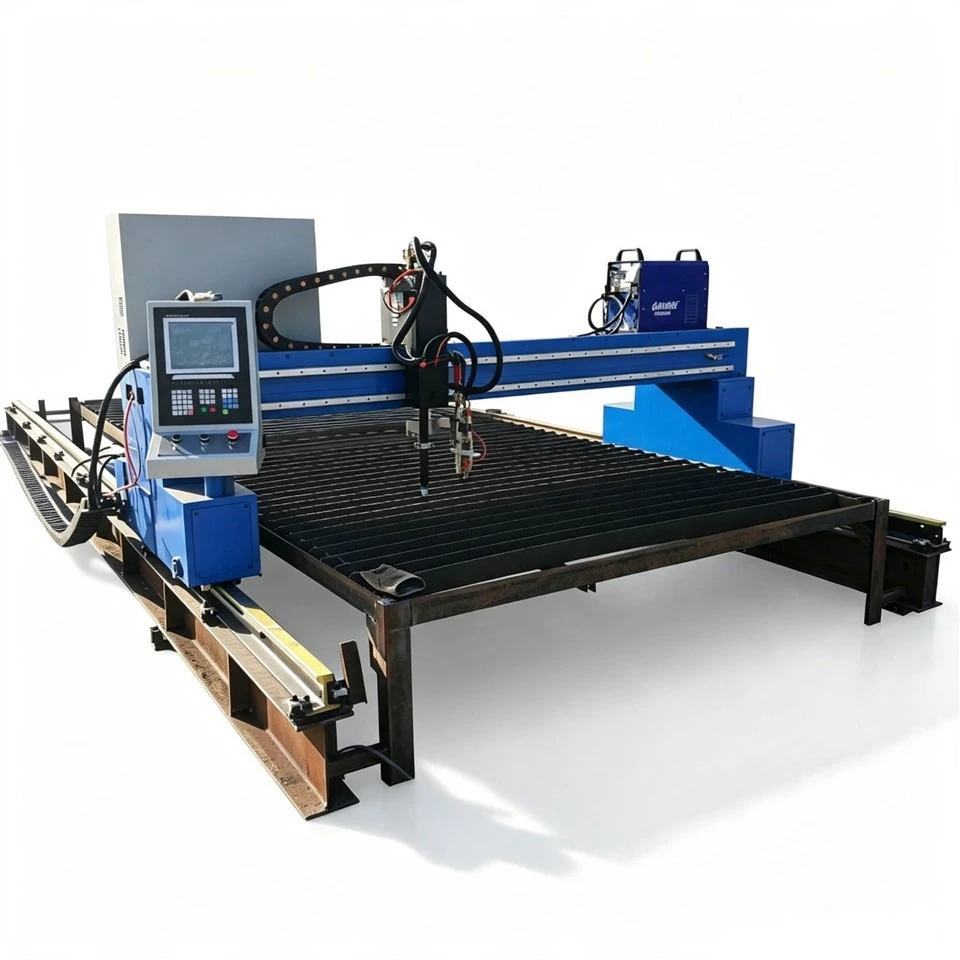

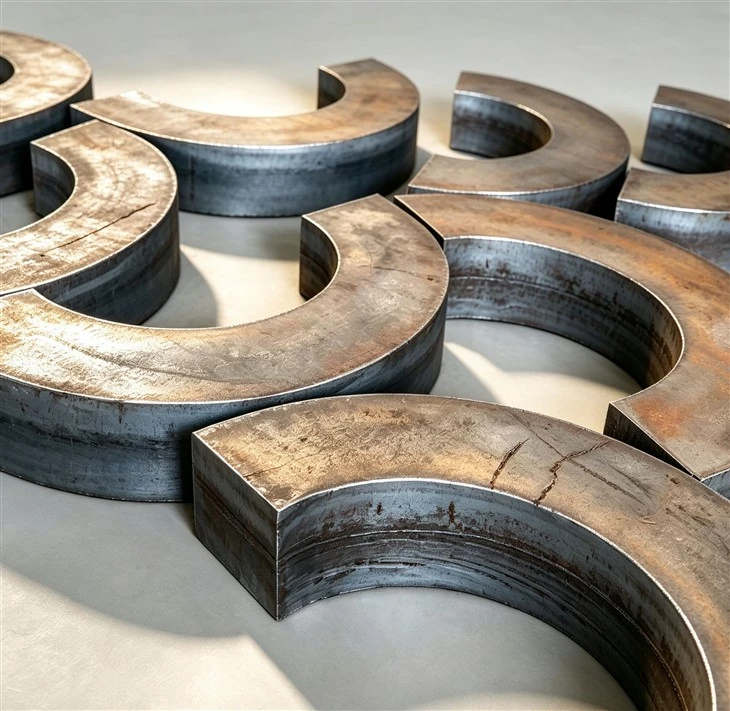

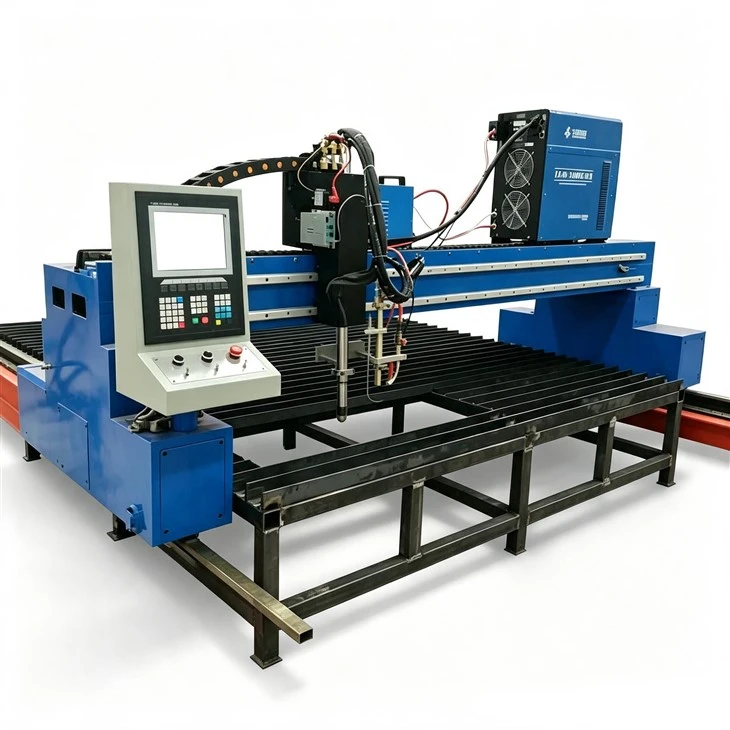

A gantry cutting machine is a thermal cutting system built around a bridge-like structure-the gantry-that spans the width of the workpiece. The gantry travels along rails anchored to the floor or mounted on the bed, while the cutting torch moves across the gantry. The CNC controller manages motion, torch firing, gas flow, and height automatically.
The defining feature is the structure itself. Both ends of the beam are supported and driven simultaneously-bilateral drive keeps the gantry square to the bed. On a 4-meter-wide gantry, single-side drive causes the trailing side to lag. The resulting cut errors show up as parts that don't fit together.
What Makes a Well-Built Gantry
The quality comes down to three things: the frame, the drive, and the control.
The frame-The bed is welded from structural steel and stress-relieved through high-temperature heat treatment. The frame is heated to about 600°C and cooled slowly to remove residual stress from welding. Without this step, the frame slowly warps. On a 6-meter bed, even a fraction of a millimeter of warp translates to cut errors.
The drive system-Bilateral rack-and-pinion drives with servo motors move the gantry. Motors on both sides keep the gantry square to the bed. The rack must be accurately ground and installed to minimize backlash. At cutting speeds of 1,000–2,000 mm/min, any play in the drive system shows up as cut errors.
The torch height control-Automatic torch height control maintains consistent standoff distance during cutting, compensating for plate warping in real time. This is essential for maintaining cut quality on material that is not perfectly flat.

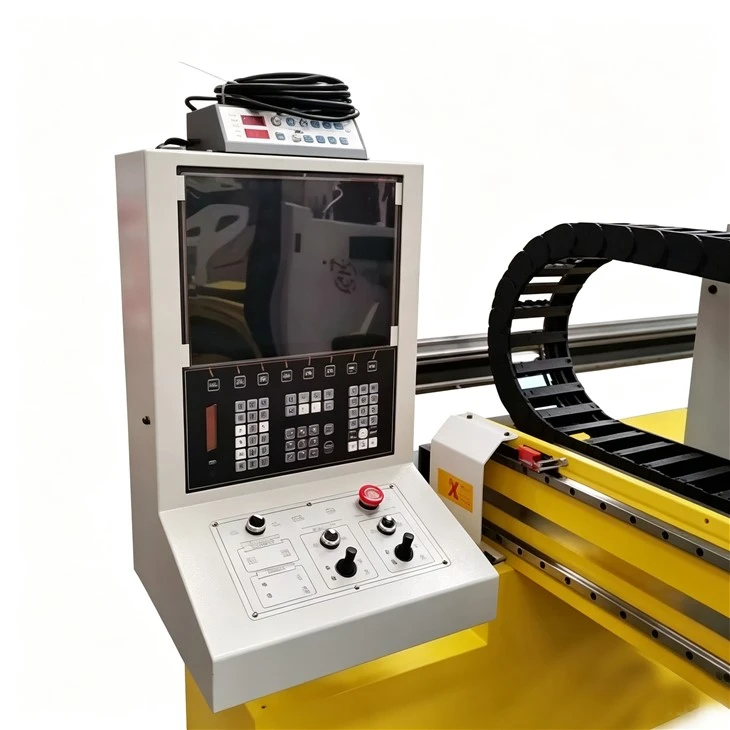

The CNC controller-The controller manages motion, torch firing, gas flow, and height control. Modern systems support one-click drawing import (DWG, DXF), MES connectivity, and real-time equipment monitoring. The system supports nesting software to optimize part placement and reduce material waste.
Case
In Shandong, a steel service center serving local manufacturers faced issues with their old cantilever machine, which struggled with wide plates. Cuts exceeding 2.5 meters caused the unsupported arm to deflect, resulting in tapered edges. We've upgraded them to a gantry machine featuring a 2.5×6m bed and bilateral drive. This new setup ensures the gantry remains square across its entire width, and according to the shop manager, tapered edge rejections have since plummeted to near zero.
Frequently Asked Questions
Wondering about gantry vs. portable cutting machines?
Portable units are compact and easy to transport, great for fieldwork or small shops. Gantry machines are robust and stationary, built for industrial use, especially for plates over 25mm thick and 2 meters wide. These larger machines can handle multiple torches and deliver consistently straight cuts.
What is bilateral drive and why does it matter?
With bilateral drive, motors on both sides of the gantry move it together, ensuring it stays square to the bed. On wide gantries, a single-drive system can cause the trailing side to fall behind, leading to cut errors. Most well-built gantry machines come standard with bilateral drive.
What thickness can a gantry cutting machine handle?
With plasma, thickness depends on the power source. A 200-amp system cuts up to about 35mm carbon steel. With oxy-fuel, the machine handles 6mm to 200mm or more. The machine is suitable for light to heavy plate cutting.
What maintenance does the machine require?
Daily torch and guide rail checks. Weekly drive system cleaning and lubrication. Monthly inspections of guide rails, drive gears, and electrical connections. Gas quality is the most common source of problems-use clean, dry air and check air filters regularly.
