Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of 1530 portable single arm cnc plasma cutter in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

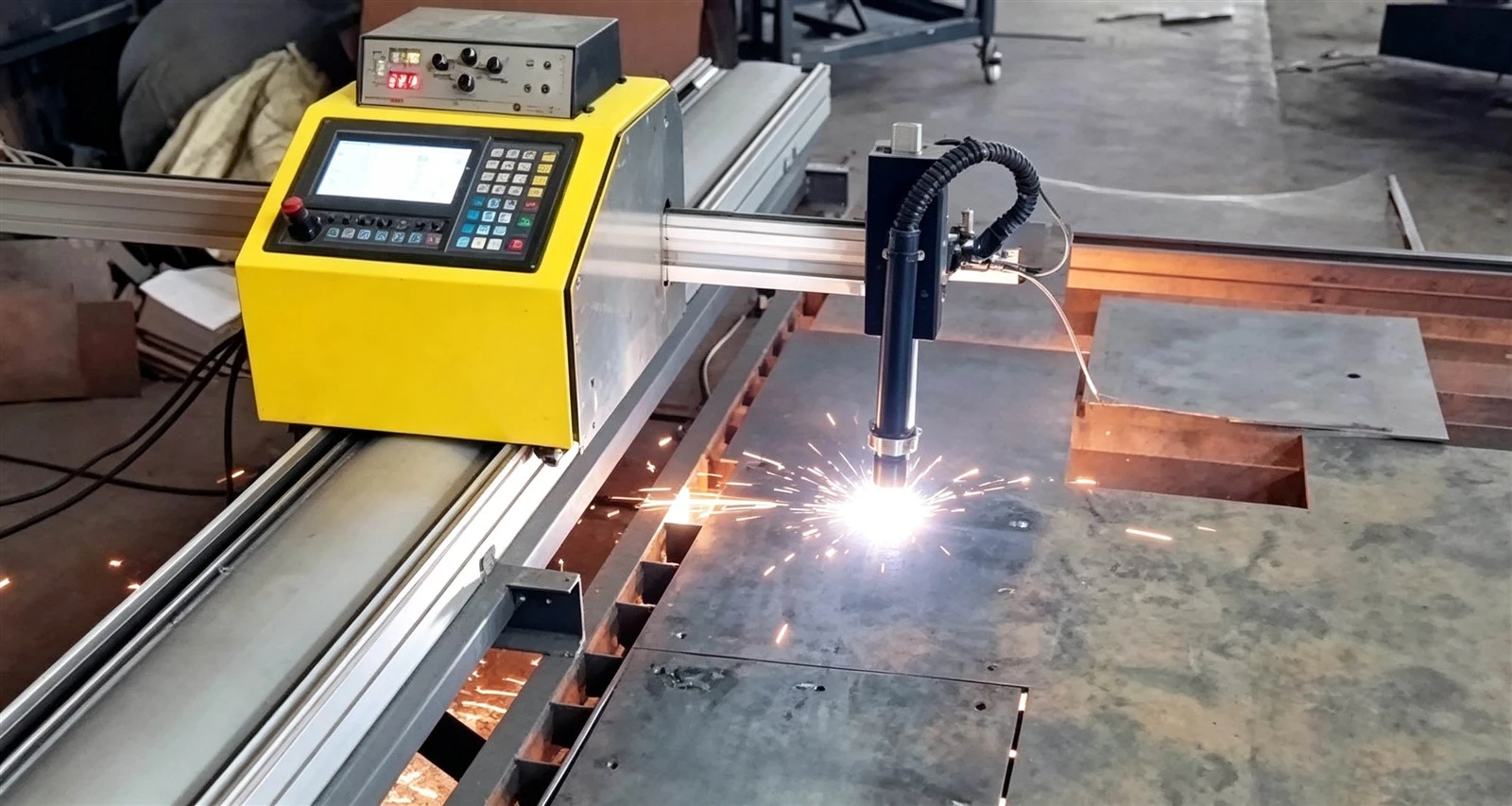

The 1530 Portable Single Arm CNC Plasma Cutter is a compact, one-sided drive cutting system that brings computer-controlled precision to workshops and job sites where space is tight. It runs on standard single-phase power, uses a single-arm cantilever design, and handles both plasma and flame cutting-so you don't need two separate machines for different metal types. The whole thing sits directly on your steel plate, which means you're not stuck hauling heavy sheets to a stationary table
We often see these problems in the field
1.Bad Air Quality:Moisture in air lines harms plasma consumables. Drain your compressor daily and use a filter-dryer.
2.Incorrect Consumables:Nozzles and electrodes must match the material and its thickness.
3.Wrong Gas Pressure:Insufficient oxygen prevents penetration; excessive amounts waste gas.
4.Weak Grounding:A solid ground is essential for plasma. Poor grounding creates an inconsistent arc.
5.Ignoring Torch Height Control:Calibrate the height controller for each material thickness. Failing to do so can lead to equipment damage or arc loss.
Application Range
Frequently Asked Questions

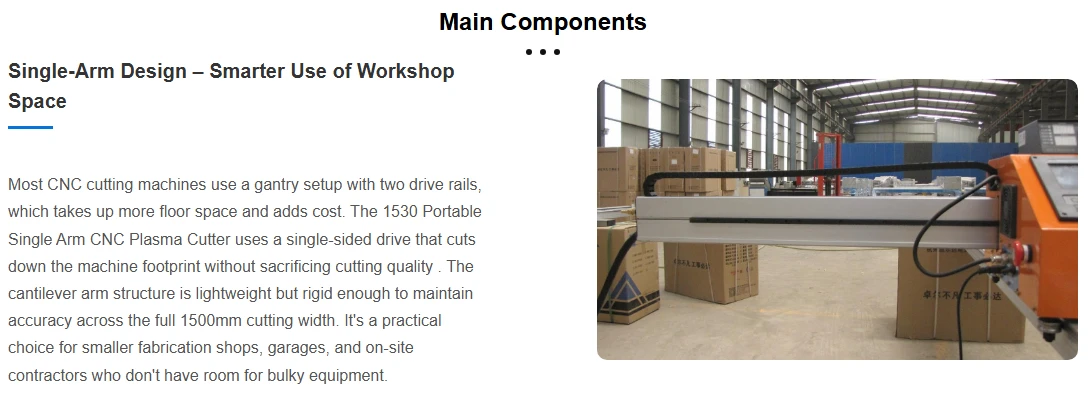

What exactly does "single arm" mean on this CNC plasma cutter?
+
-
It means the machine uses a one-sided drive system instead of the dual-rail gantry setup you see on larger machines. The cutting head hangs from a cantilever arm that moves across the width of the plate. This design saves floor space and reduces cost while still delivering ±0.2mm accuracy for most fabrication work

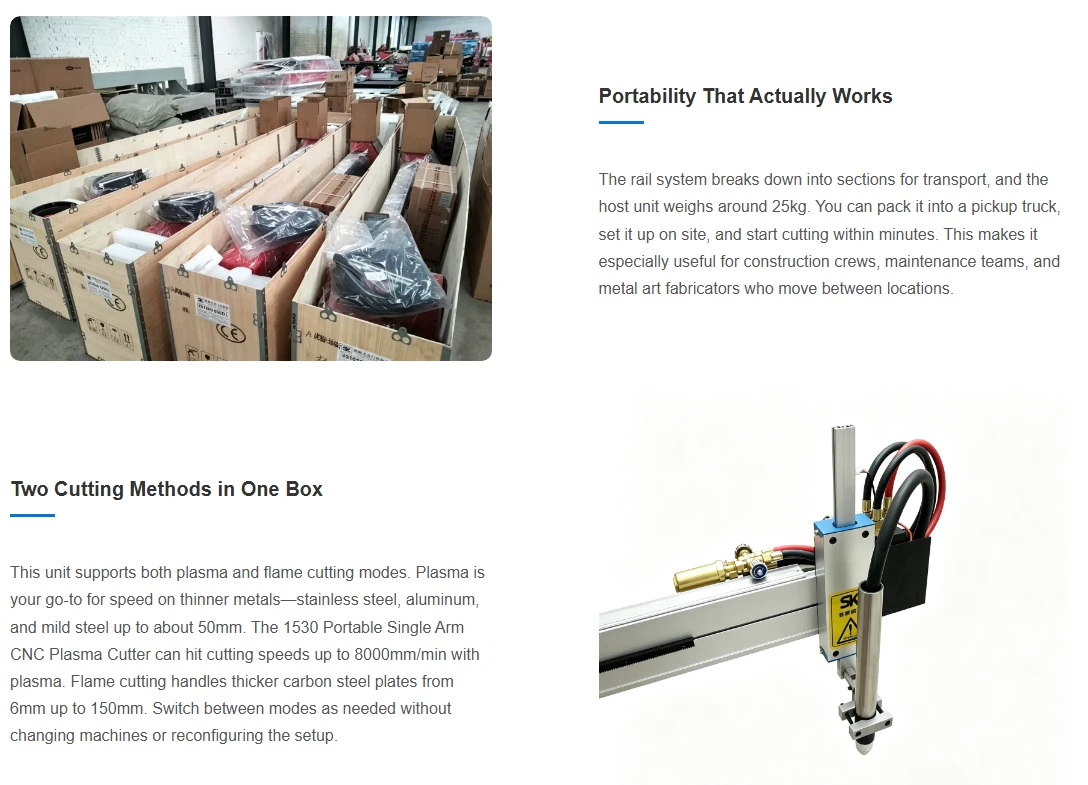

How does plasma cutting compare to flame cutting on this machine?
-
Plasma cutting uses an electrically charged gas to melt through metal-it's much faster on materials under 50mm thick (up to 8000mm/min) and works on stainless steel, aluminum, and other non-ferrous metals. Flame cutting uses oxygen and fuel gas to burn through steel, which is slower but more economical for thick carbon steel plates from 50mm up to 150mm -1. The machine supports both, so you choose based on material and thickness.
What kind of support do you offer after I buy?
-
We provide a 12-month warranty on the CNC controller and drive components. Technical support is available via email, phone, and video call. We stock common spare parts like motors, guide rails, and torch holders for fast shipping. We also help with installation guidance and operation tutorials.
Can I run this machine on 110V power in North America?
-
Yes-the 1530 Portable Single Arm CNC Plasma Cutter supports both 110V and 220V single-phase input. You don't need a transformer or special wiring. Just plug it in and go.
What do I need besides the machine to start cutting?
-
For plasma cutting, you'll need a plasma power source (we offer options from 63A to 200A) and an air compressor. For flame cutting, you'll need oxygen and fuel gas supplies (acetylene or propane). The cutting files come from standard CAD software saved to a USB drive
About Juliang Technology Co., Ltd.

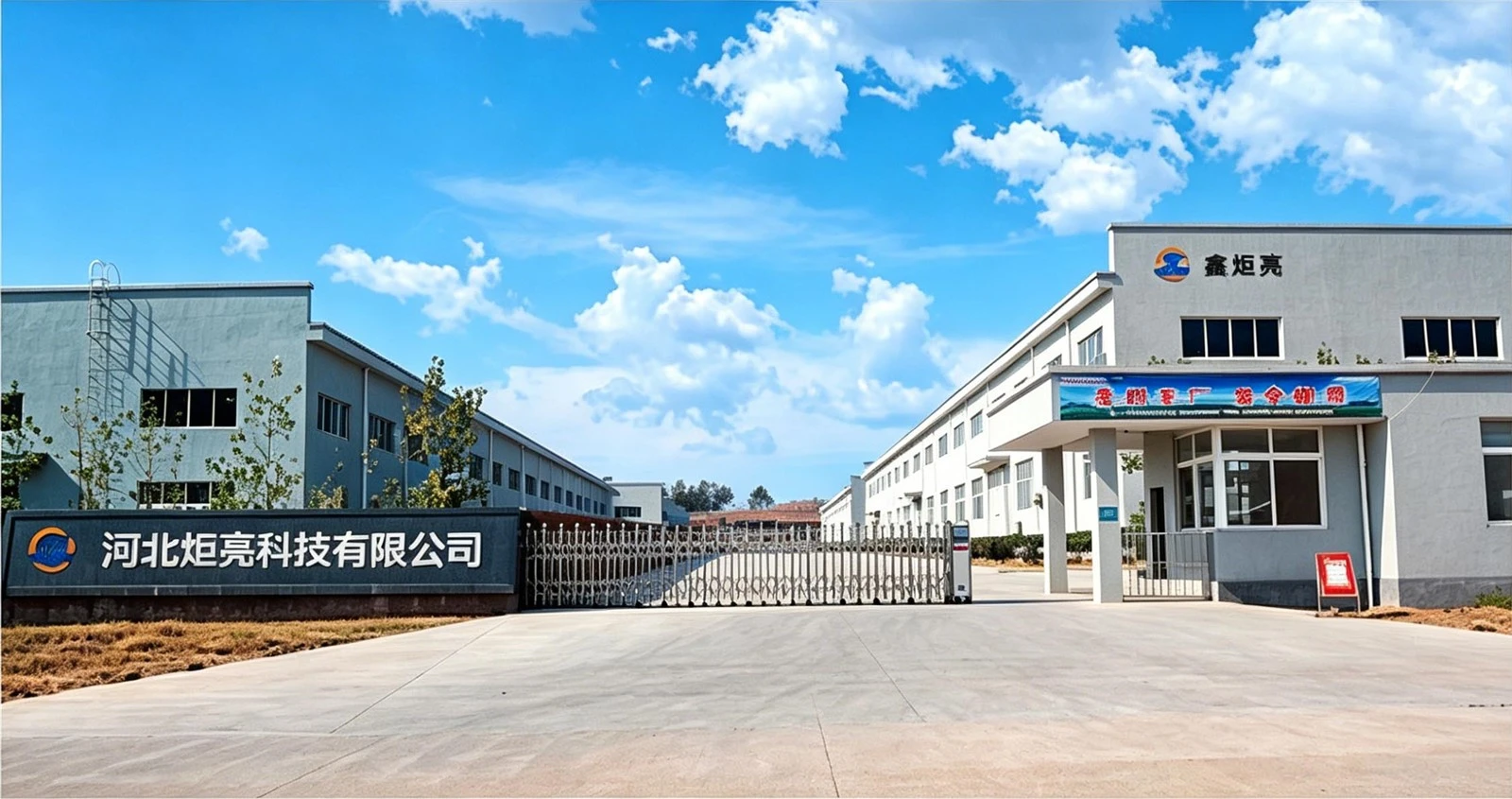

Juliang Technology Co., Ltd. began manufacturing CNC cutting equipment in 2010 and has since focused on portable and space-saving cutting solutions. The company is located in Shijiazhuang City, Hebei Province, and has a complete production line where sheet metal processing, guide rail processing, control system assembly, and final testing are all carried out in the same building.
