How Multi-Functional Laser Tube Cutting Machines Work
Laser cutting is a non-contact process that uses a high-powered laser beam to melt, burn, or vaporize material. For tube cutting, the laser beam is focused on the tube surface while the tube is rotated or moved linearly. The focused beam creates a narrow cut with minimal heat-affected zone.
Factors Affecting Maximum Cutting Diameter
1. Machine Design and Construction
Machines with larger work areas and more robust mechanical components can accommodate larger tubes. A well-engineered structure ensures stable cutting even for large diameters.
For example, our Laser Pipe Cutter is designed to handle a wide range of tube diameters with stable cutting performance. It uses advanced laser technology to cut steel, aluminum, and copper with high precision.
2. Laser Power
Higher laser power allows cutting of thicker and larger-diameter tubes more effectively. Our Fiber Side-Mounted Tube Laser Cutter uses a high-power fiber laser source, enabling relatively large diameter cutting while maintaining speed and quality.
3. Material Type

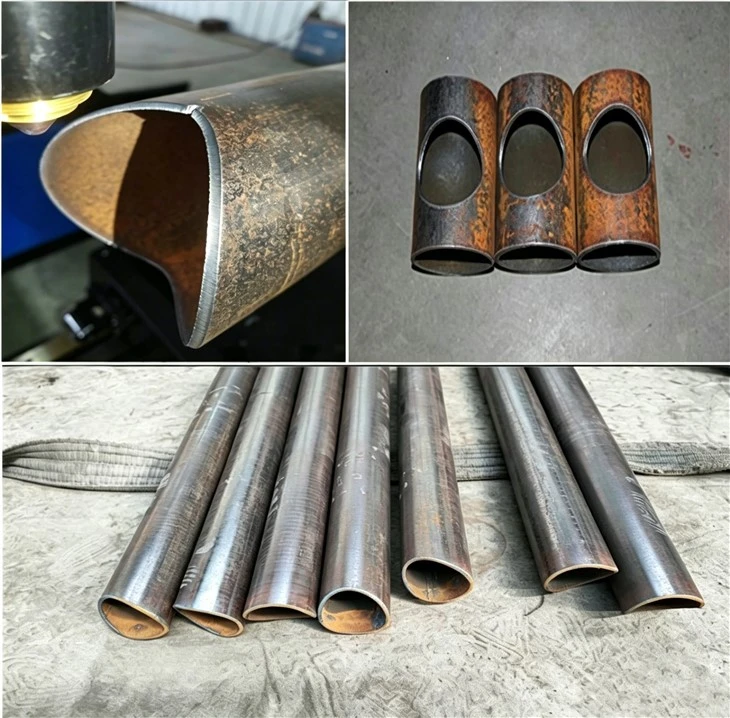

Different materials have different melting points, densities, and thermal conductivities. Cutting a large-diameter steel tube is more challenging than cutting an aluminum tube because steel has a higher melting point and lower thermal conductivity. Our Industrial Side-Mounted Tube Laser Cutting Machine can adjust laser parameters according to the material.
Typical Diameter Ranges
The maximum diameter can range from a few millimeters to several hundred millimeters.
Small-scale applications – Machines can cut tubes with diameters as small as 10–20 mm. These are used for small parts such as jewelry or electronic components.
Industrial applications – Machines such as the Automatic Fiber Laser Tube Cutting Machine can handle tubes with diameters up to 200–300 mm or more. These are commonly used in construction frameworks and pipelines.
When cutting large-diameter tubes, tube stability is critical. If the tube is not properly supported, vibration can cause inaccurate cuts. Our machines are equipped with advanced clamping and support systems to ensure stability during cutting.
Cutting speed and quality can also be affected when cutting large-diameter tubes. A larger tube has more material to cut through, requiring more time and energy. Our Fiber Laser Tube Side-Mounted Cutter is optimized to balance speed and quality for large-diameter tubes.
Choosing the Right Machine
When selecting a multi-functional laser tube cutting machine, consider your specific requirements:
If you regularly cut large-diameter tubes, choose a machine with a high-power laser and robust design.
Ensure the machine includes advanced control systems and support mechanisms for accurate and efficient cutting.
Check the machine specifications for the maximum tube diameter and wall thickness.
Our range of machines offers different cutting diameter capacities to meet various industrial needs. Whether cutting small-diameter tubes for precision parts or large-diameter tubes for construction projects, we can help you find a suitable solution.
Our Multi-Functional Laser Tube Cutting Machines
Hebei Juliang Technology offers a range of multi-functional laser tube cutting machines, including:
Laser Pipe Cutter
Fiber Side-Mounted Tube Laser Cutter
Automatic Fiber Laser Tube Cutting Machine
Fiber Laser Tube Side-Mounted Cutter
Industrial Side-Mounted Tube Laser Cutting Machine
View Multi-Functional Laser Tube Cutting Machines →
FAQ
Q1: What is the maximum tube diameter a multi-functional laser tube cutting machine can cut?
A: It depends on the machine model. Small machines can cut 10–20 mm; industrial machines can handle 50–120 mm or more.
Q2: What factors affect the maximum cutting diameter?
A: Machine design, laser power, material type, and tube support system.
Q3: Can it cut large-diameter steel tubes?
A: Yes, with sufficient laser power and proper support. Steel requires higher power than aluminum due to its higher melting point.
Q4: How does laser power affect cutting diameter?
A: Higher laser power enables cutting of thicker and larger-diameter tubes at higher speeds.
Q5: What materials can be cut?
A: Steel, stainless steel, aluminum, copper, and other metals.
Conclusion
The maximum tube diameter a multi-functional laser tube cutting machine can handle varies by machine design, laser power, and material. Our range of machines offers different cutting capacities to meet various industrial needs. If you have questions about cutting diameters or want to discuss your requirements, please contact us.
