The cutting angle range is an important factor when selecting a portable CNC cutting machine. It determines whether the machine can perform straight cuts, bevel cuts, chamfers, and complex shapes. This article explains the factors that affect the cutting angle range, typical ranges for different machine types, and how to choose the right machine for your needs.
Understanding Portable CNC Cutting Machines

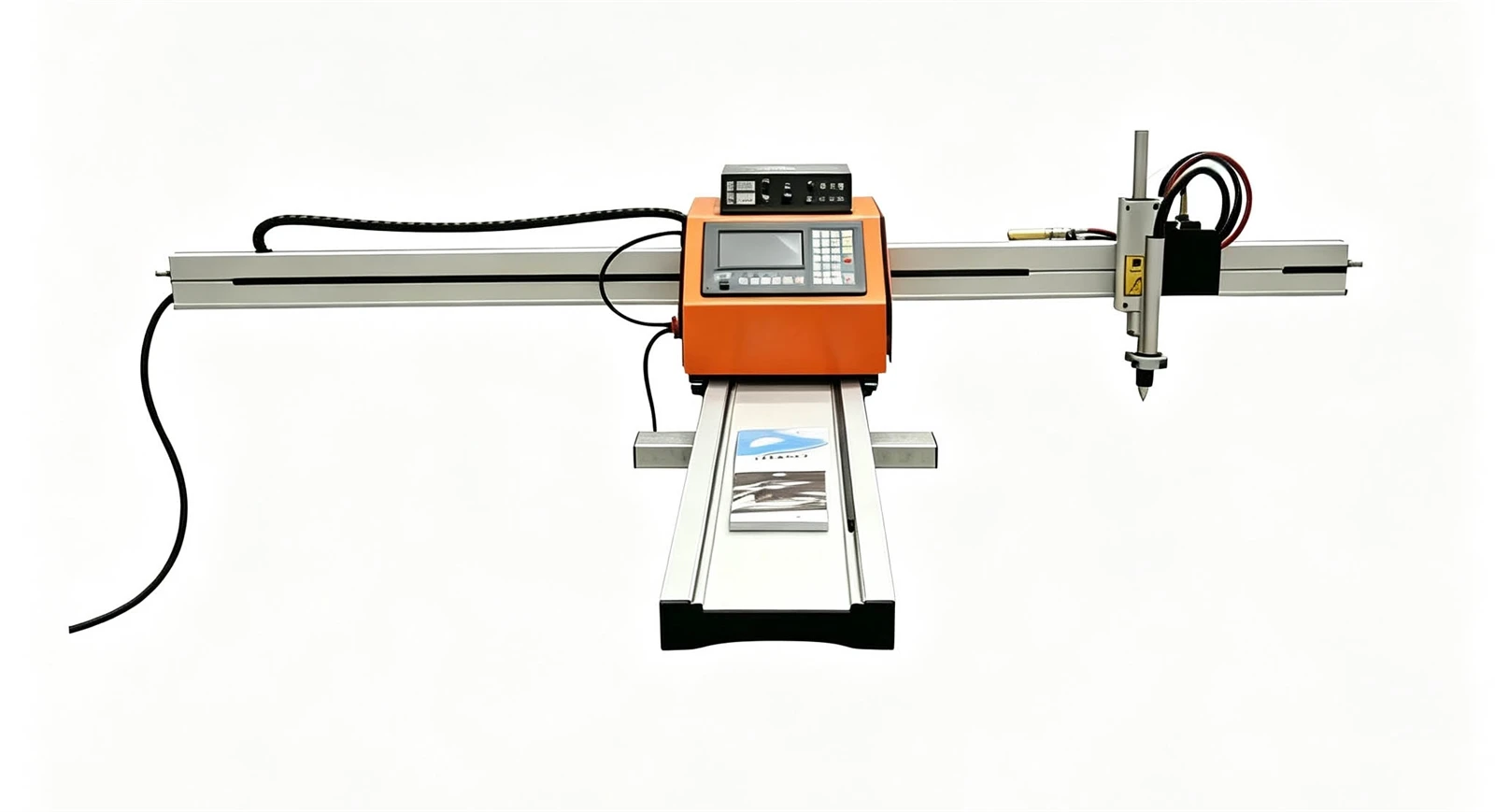

A portable CNC cutting machine is a compact, movable cutting system that uses computer numerical control (CNC) technology to automate the cutting process. It can be programmed to cut materials with precision, saving time and improving consistency.
Common types include:
Portable CNC Flame Cutting Machine
Small CNC Cutting Machine
1530 Light Weight CNC Cutting Machine
Portable CNC Plasma Cutting Machine
1860 Portable CNC Flame & Plasma Cutter
Each type has its own features and cutting capabilities.
Factors Affecting the Cutting Angle Range
Machine Design
The machine design plays a major role. Some machines have a fixed cutting angle, while others are adjustable. Machines with a gantry design often offer a wider range of cutting angles than those with a simpler structure. The way the cutting head is mounted and the movement mechanisms also affect angle adjustment.
Cutting Method
The cutting method affects the available angle range.
Flame Cutting
Flame cutting uses oxygen and a fuel gas (such as acetylene or propane) to generate a high-temperature flame that melts through the material. It is typically used for thick steel plates. The cutting angle range for flame cutting is usually limited, often around 0 to 45 degrees, because the flame must be maintained at a certain angle for a clean cut.

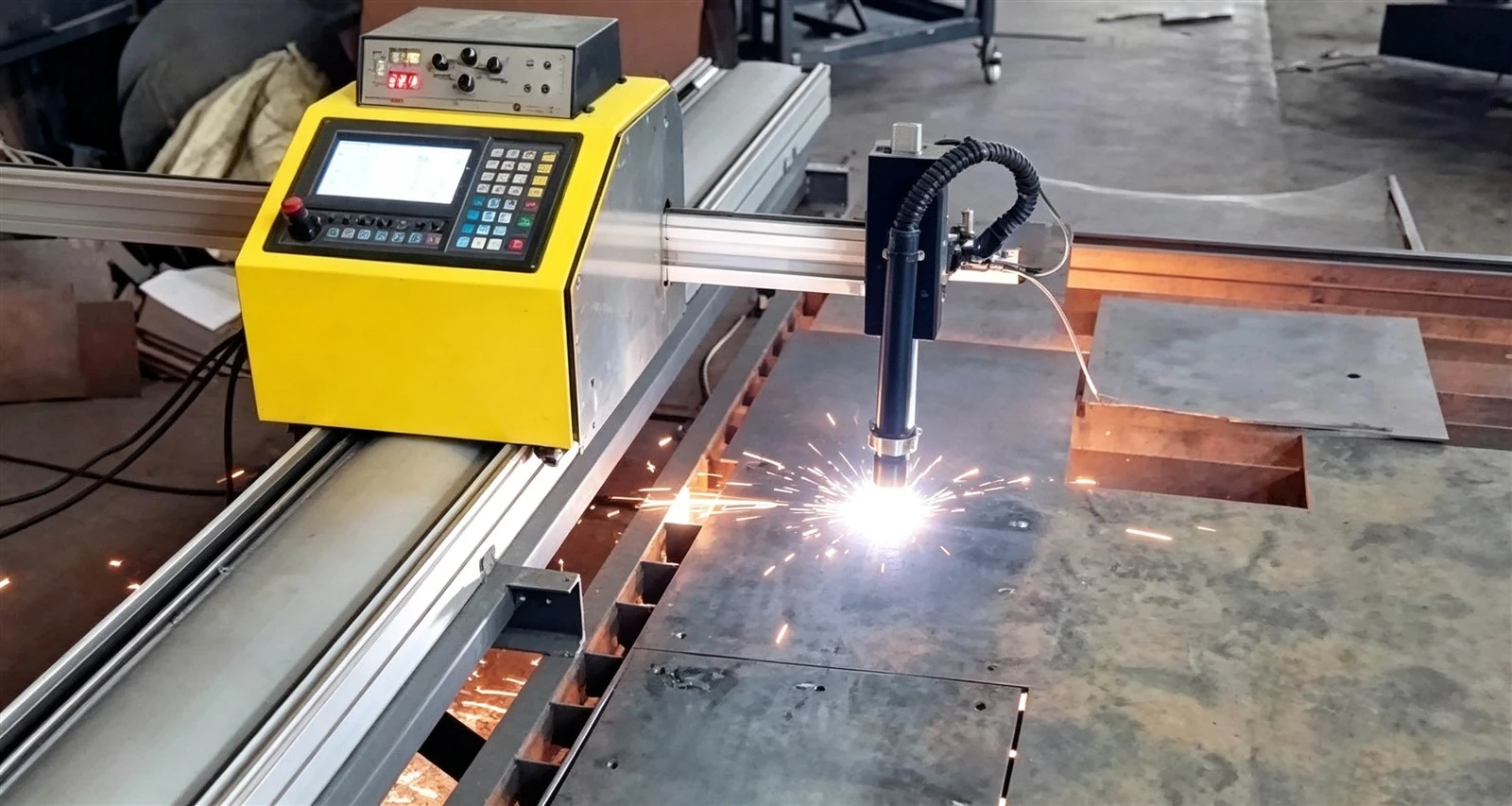

Plasma Cutting
Plasma cutting uses a high-velocity jet of ionized gas to melt and blow away the material. It is faster and more precise than flame cutting and can be used on a wider range of materials, including stainless steel, aluminum, and copper. The cutting angle range for plasma cutting is generally wider, often from 0 to 45 or 60 degrees for bevel cuts, depending on the machine. Some advanced plasma cutting machines can achieve bevel cuts with high angular accuracy.
Material Thickness and Type
Thicker materials may require a more limited cutting angle to prevent uneven or inaccurate cuts. For example, when cutting thick steel plates with a flame cutting machine, the cutting angle may need to be kept within a narrow range to ensure proper melt-through. Different materials also have different properties. Softer materials like aluminum may allow a wider range of cutting angles than harder materials like stainless steel.
Typical Cutting Angle Ranges
| Machine Type | Typical Cutting Angle Range |
|---|---|
| Portable CNC Flame Cutting Machine | 0 – 45 degrees |
| Portable CNC Plasma Cutting Machine | 0 – 45 or 60 degrees (bevel cuts) |
| Small / Lightweight CNC Cutting Machine | More limited range, suitable for small-scale projects |
| Combination Machines (Flame & Plasma) | Combined range of both methods |
Portable CNC Flame Cutting Machines
Usually 0 to 45 degrees. Suitable for straight lines, bevels, and simple shapes in thick steel plates.
Portable CNC Plasma Cutting Machines
Generally wider, often 0 to 45 or 60 degrees for bevel cuts. Suitable for bevel cuts, chamfers, and complex shapes. Some models achieve high angular accuracy.
Small CNC Cutting Machines and Lightweight Models
Slightly more limited range than larger machines, but still suitable for most small-scale cutting projects. Ideal for hobbyists, small workshops, and on-site jobs.
Combination Machines (Flame & Plasma)
Offer the combined range of both cutting methods, giving more options for different cutting needs.
the Right Cutting Angle Range
Consider Your Project Requirements
If you mainly cut straight lines and simple shapes, a machine with a limited cutting angle range may be sufficient. For bevel cuts, chamfers, or complex shapes, choose a machine with a wider range.
Evaluate Material Thickness and Type
Choose a machine that can handle the materials you work with and provide the necessary cutting angle range.
Look for Flexibility
A combination machine or a machine with an adjustable cutting head offers more flexibility for different projects.
Our Portable CNC Cutting Machines
Hebei Juliang Technology offers a range of portable CNC cutting machines, including:
Portable CNC Flame Cutting Machine
Small CNC Cutting Machine
1530 Light Weight CNC Cutting Machine
Portable CNC Plasma Cutting Machine
1860 Portable CNC Flame & Plasma Cutter
View Portable CNC Cutting Machines →
FAQ
Q1: What is the cutting angle range of a portable CNC cutting machine?
A: Flame cutting machines typically range from 0 to 45 degrees. Plasma cutting machines generally offer a wider range, often up to 45 or 60 degrees for bevel cuts.
Q2: What factors affect the cutting angle range?
A: Machine design, cutting method (flame or plasma), material thickness, and material type.
Q3: Can flame cutting machines do bevel cuts?
A: Yes, but the range is usually limited to about 0–45 degrees.
Q4: Can plasma cutting machines do bevel cuts?
A: Yes. Plasma cutting machines generally offer a wider range and higher precision for bevel cuts.
Q5: How do I choose the right cutting angle range?
A: Consider your project requirements, material thickness and type, and whether you need flexibility for different cutting tasks.
Conclusion
The cutting angle range of a portable CNC cutting machine depends on machine design, cutting method, and material. Flame cutting typically offers 0–45 degrees, while plasma cutting offers a wider range for bevel cuts and complex shapes. Choosing the right machine for your cutting angle requirements helps improve efficiency and cut quality.
If you have questions about cutting angle ranges or want to discuss your requirements, please contact us.
