It Fits in a Corner. It Cuts 20mm Steel. And It's Quiet

Walk into a small workshop running a plasma cutter. It's loud. The edges are rough. The grinder runs constantly. The operator is tired.

Now walk into a shop that has this machine. It's quiet. The cut edge is clean. The operator is already on the next job.

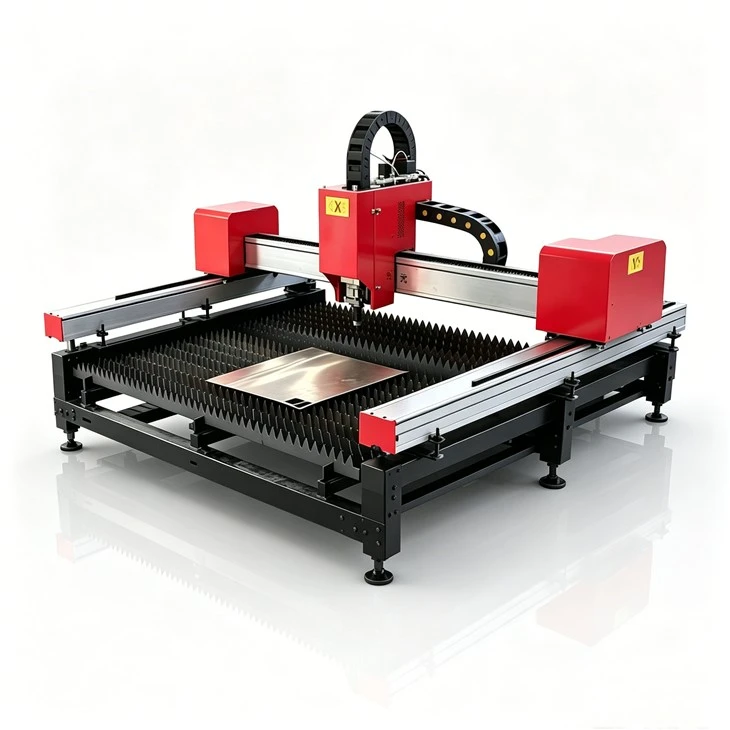

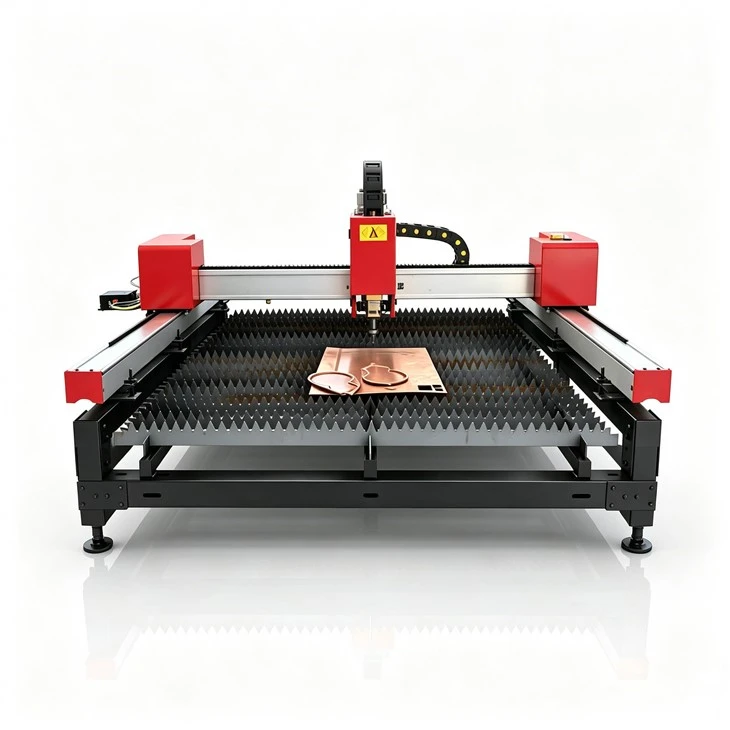

That's the difference the new portable mini CNC fiber laser cutting machine makes.

From Plasma to Laser – One Shop Owner's Story

"We started in a small garage. Plasma was all we could afford. But the noise, the grinding, the rework – it never stopped."
He switched to this portable fiber laser cutter.
No more grinding for hours
No more loud plasma arcs
Same-day cutting, not next-week delivery

If plasma is holding you back, this machine is your way out.

First, What Can This Machine Actually Cut?

Material	Thickness Range	Typical Edge Quality
Mild steel	0–12 mm (up to 20 mm with slower speed)	Clean on thin; minimal dross on thick
Stainless steel	0–3 mm (up to 5 mm)	Bright, minimal oxidation with nitrogen
Aluminum	0–2 mm (up to 3 mm)	Clean, requires gas assist

Cutting speed: 500–10,000 mm/min
Machine weight: 350 kg – movable with a pallet jack
Footprint: Small – fits into a corner
Repositionable: Yes – leveling feet, no foundation required

How Fast? How Clean? – Real Numbers vs. Plasma

Parameter	This Fiber Laser	Plasma (Comparable)
Max speed	10,000 mm/min	3,000–5,000 mm/min
Edge quality	Clean, weld-ready	Rough, requires grinding
Post-processing	Minimal to none	Heavy grinding
Noise level	Low	Very high
Operator attention	Low (CNC)	High

Result: One machine replaces plasma + grinder + drilling station for many small parts.

Positioning accuracy: ±0.3 mm / 1000 mm
Repeatability: ±0.1 mm
Cooling: Water (chiller included)
Control: F5210H (Fangling) with FLCAME nesting software

A customer in Malaysia cut 1500 identical brackets in 6 hours. Previously, plasma took 14 hours plus a full shift of grinding.

Key Specifications – At a Glance

Attribute	Specification
Laser source	Raycus / MAX
Control system	Fangling F5210H
Servo motor	Leadshine
Laser head	Raytools
Optical lens	Might
Reducer	Ants
Max speed	10,000 mm/min
Positioning accuracy	±0.3 mm / 1000 mm
Repeatability	±0.1 mm
Cooling	Water (chiller included)
Machine weight	350 kg
Footprint	Small – fits in a corner
Repositionable	Yes – leveling feet, no foundation
Supported file formats	DWG, DXF

Why Does This Small Machine Cut So Well?

Because every component is specified. No mystery parts.

Component	Brand
Laser generator	Raycus / MAX
Control system	Fangling F5210H
Servo motor	Leadshine
Laser head	Raytools
Optical lens	Might
Reducer	Ants

And because the machine weighs only 350 kg, the gantry moves fast without shaking a heavy bed. Low weight + high rigidity = faster acceleration and cleaner corners.

The Physical Design – Small Size, Serious Rigidity

Unlike heavy gantry machines that need a concrete foundation, this new portable mini CNC fiber laser cutting machine sits on a standard workshop floor.
Weight: 350 kg – low sea freight cost
Footprint: Fits into a corner
Repositionable: Yes – move it with a pallet jack
Configuration: 4-axis (handles flat sheets and simple profiles)

But small does not mean flimsy. The bed is fabricated using large laser cutting machines and gantry milling – the same tools Juliang uses to build its industrial line.

Certificates – Not Just a Sticker

Certification	Status
CE	Yes – complies with EU safety standards
Invention Patent (multiple)	Yes
Utility Model Patent (multiple)	Yes
High-tech Enterprise	Certified 2022
Hebei Science & Technology SME	Certified
Specialized, Refined, Distinctive, Innovative Enterprise	Listed 2025

These are not marketing badges. They are audit trails. Every CE-certified machine includes documentation to support your local customs and safety inspections.

Company Background – Who Actually Builds This?

Hebei Juliang Technology Co., Ltd. didn't appear out of nowhere. It grew step by step.

2014: Started with one portable cutting machine in a small space.
2015–2018: Moved and expanded twice, then registered the "Xin Juliang" brand.
2020: Filed multiple patents and became an official R&D institution in Hebei.
2022: Earned High-tech Enterprise status and launched export sales.
2025: Moved to a larger facility and became a large-scale enterprise.

Today, Juliang ships to Africa (23% of sales), Southeast Asia (18%), Eastern Asia (15%), Russia, Europe, and the USA.

What does this mean for you? A company that keeps expanding is not a garage shop. We have our own production equipment: large laser cutters, gantry mills, laser welders, and high-precision collimators.

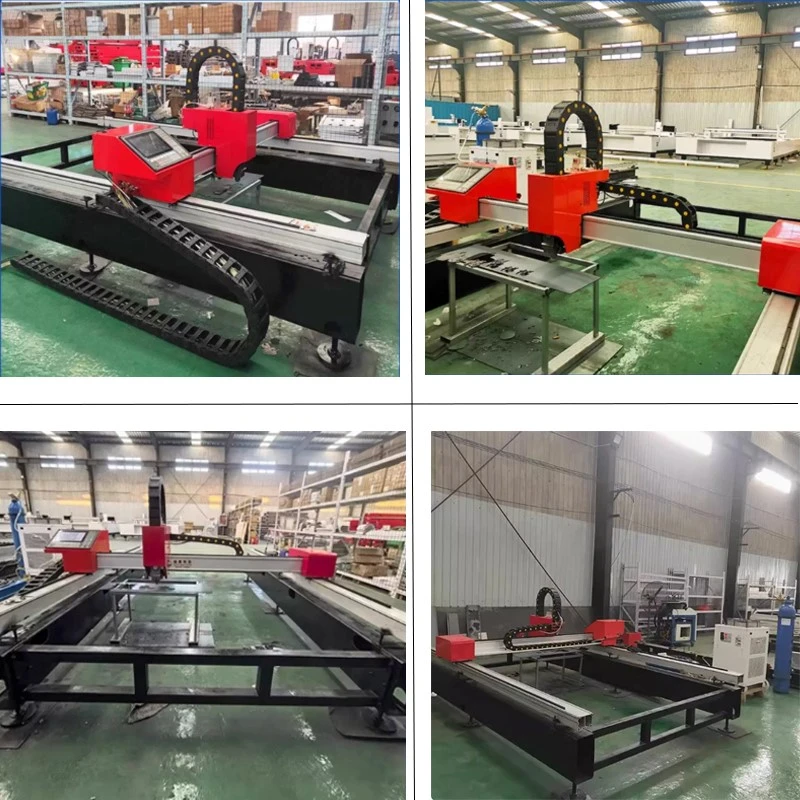

Production Flow – From Steel Plate to Shipping

Bed cutting – Juliang's own large laser cutter

Milling – Gantry milling machines for rail mounting surfaces

Assembly – Racks, motors (Leadshine), reducers (Ants)

Electrical – Chint/Delixi components, chiller, voltage regulator

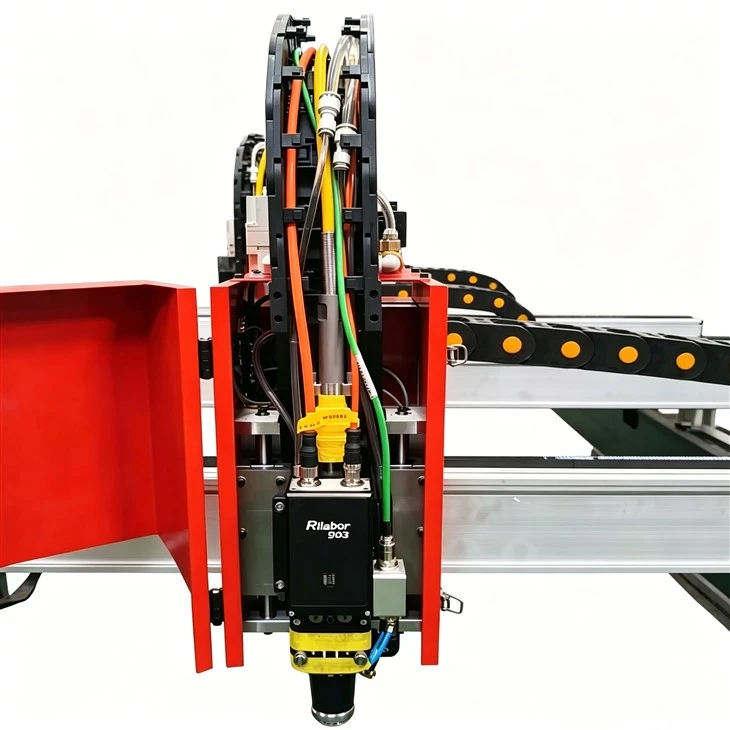

Laser head & optics – Raytools head + Might lenses

Burn-in test – 24 hours continuous cutting on 3–6 mm mild steel

Packing – Soft coverings or wooden case (customer choice)

Every machine is tested before packing. No exceptions.

Customer Case – From Frustration to One-Button Cutting

Business: Small elevator parts manufacturer, Turkey
Previous setup: Outsourced laser cutting + in-house finishing
Machine purchased: 1500W version of this new portable mini CNC fiber laser cutting machine

Before:

5–7 day lead time from laser cutting supplier

Rework on 15–20% of outsourced parts

Storage space wasted on partially finished inventory

After 6 months:

In-house cutting – same day

Rework dropped to under 5%

Operator (no prior CNC experience) trained in 2 days

"We bought it to save time. We also saved money, but the time savings alone paid for the machine in 8 months."

Service Model – What You Can Expect (Real Talk)

Before you buy:
We'll cut your sample for free. Send a DXF and your material specs. We send back a video and cutting parameters.

After you order:
Standard config ships 3–5 days after deposit. We'll handle all customs docs (invoice, packing list, CE cert).

Installation:
Remote video guidance is included. If you want an on-site tech, that's extra.

Training:
Included. We'll walk you through FLCAME software and daily maintenance.

Help when something goes wrong:
24/7 free remote support – real engineers, not chatbots.

Broken part?
We diagnose remotely, ship the part, then guide you through replacement by video.

Need to send the machine back?
We test it, figure out what's wrong, fix it for free if under warranty, then burn-in test and return it.

Service starts the moment you buy – not the moment you complain.

Why Choose Juliang Over Other Portable Laser Sellers?

We manufacture – Not a trading company. Three factory expansions prove it.

One-year whole machine warranty + two-year laser generator warranty

R&D team with multiple patents – No rebranding generic machines.

Long-term staff – Your sales contact and engineer won't disappear.

CE + High-tech Enterprise + Specialized Enterprise – Audit-ready.

Frequently Asked Questions (FAQ)

Q: Can this machine really cut 20mm steel?

A: Yes – but with conditions.
The new portable mini CNC fiber laser cutting machine can cut mild steel up to 20mm at slower speeds. However, if you regularly cut 12mm or thicker, we recommend our larger industrial machine (see our 1500W/2000W models – "6 pure text" series). For occasional 20mm cuts, this portable unit handles it. For daily thick plate work, go bigger.

Q: Can I move this machine after installation?

A: Absolutely.
Unlike heavy gantry machines that need a concrete foundation, this machine weighs 350 kg and comes with leveling feet. Two people with pallet jacks can reposition it if you rearrange your workshop. No permanent floor anchoring required. That's the beauty of a portable mini CNC fiber laser cutter.

Q: Is this machine difficult to set up for someone who only used plasma?

A: No. The F5210H control system with FLCAME software is designed for shops moving from manual to CNC. Import a DXF/DWG, set material and thickness – the system suggests parameters. Most customers are cutting on day two. We provide remote video guidance for installation.

Q: What thickness can it cut in stainless steel without oxidation?

A: For 1–3mm stainless steel using nitrogen assist gas, oxidation is minimal – typically a light straw color, not black scale. For bright silver edges, we recommend slight overpressure of nitrogen. We can run a sample with your exact material before you order.
