Hebei Juliang Technology Co., Ltd. is one of the leading manufacturers and suppliers of automatic small laser cutting machine in China. Please feel free to buy CE approved machinery made in China here from our factory. All customized machines are with high quality and competitive price.

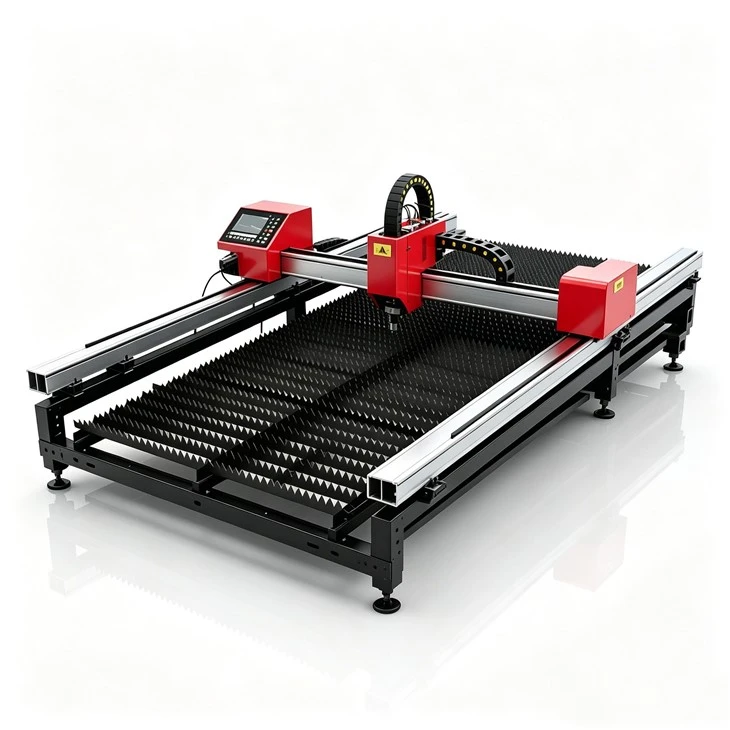

Precision Cutting, Compact Footprint – Built for the Cost-Conscious Workshop

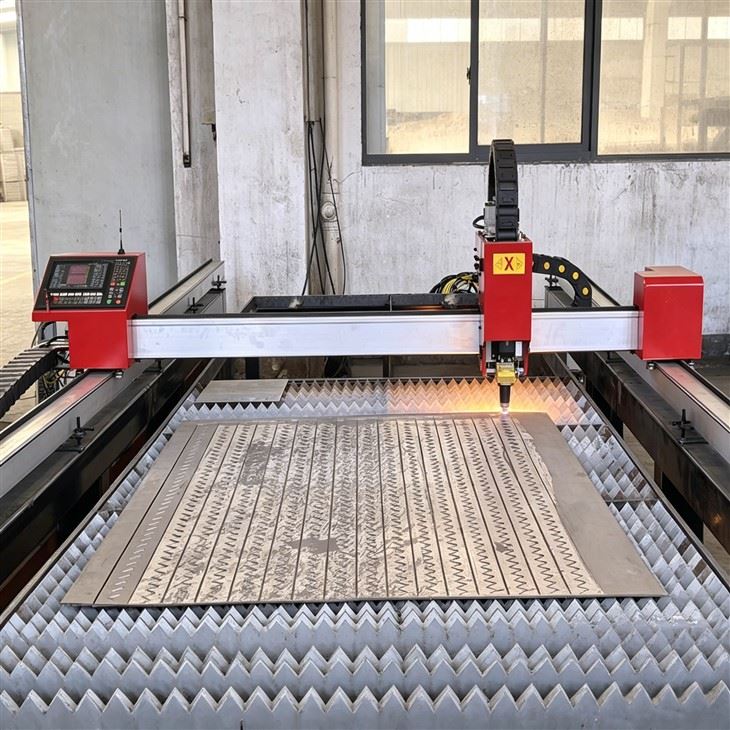

Not every fabrication job requires a gantry monster. For sheet metal shops, elevator manufacturers, and automotive parts suppliers, the real need is often a automatic small laser cutting machine that delivers clean cuts, fits tight spaces, and arrives at a reasonable sea freight cost.
This is that machine.
Why Choose This Automatic Small Laser Cutting Machine?
1. Low Entry Cost – Plasma Replacement Ready
Priced competitively to replace outdated plasma cutting systems. Lower power draw, no consumable electrodes, and minimal dross mean your payback period is measured in months, not years.
2. High Speed, High Precision – Clean Cut Surface
|
Specification |
Value |
|
Maximum speed |
7000 mm/min |
|
Repeatability |
±0.1 mm |
|
Position accuracy |
±0.3 mm / 1000 mm |

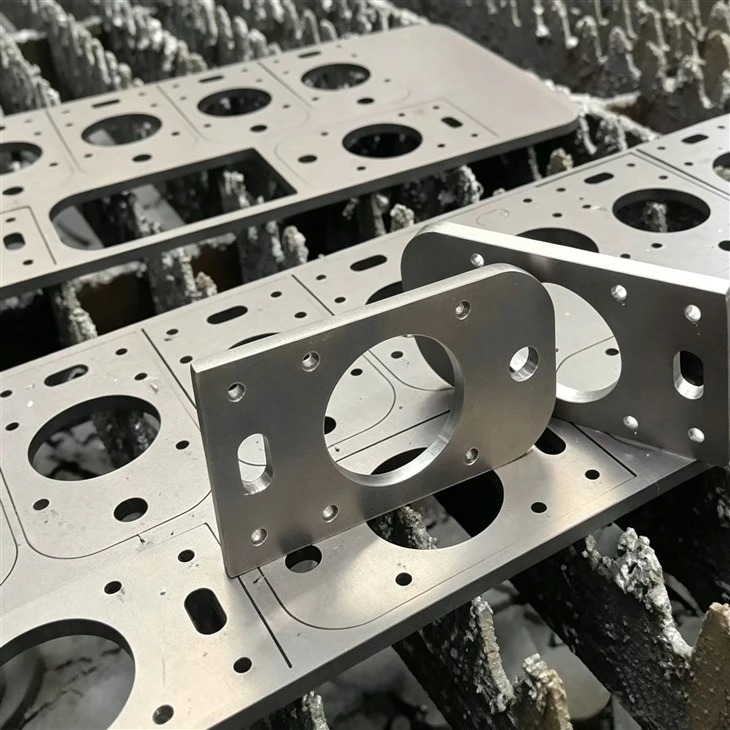

Cut surface quality is consistently better than plasma – often eliminating secondary grinding.
3. Customizable Bed & Table
Standard effective cutting range is 3000mm x 1500mm, but custom sizes are available. The bed and table can be tailored to your specific sheet or coil dimensions.
4. Small Size, Light Weight – Lower Sea Freight
Because the machine is compact and modular, shipping costs are significantly lower than traditional gantry cutters. Ideal for first-time importers.
5. Complete Component Transparency – No Hidden Brands
|
Component |
Brand / Source |
|

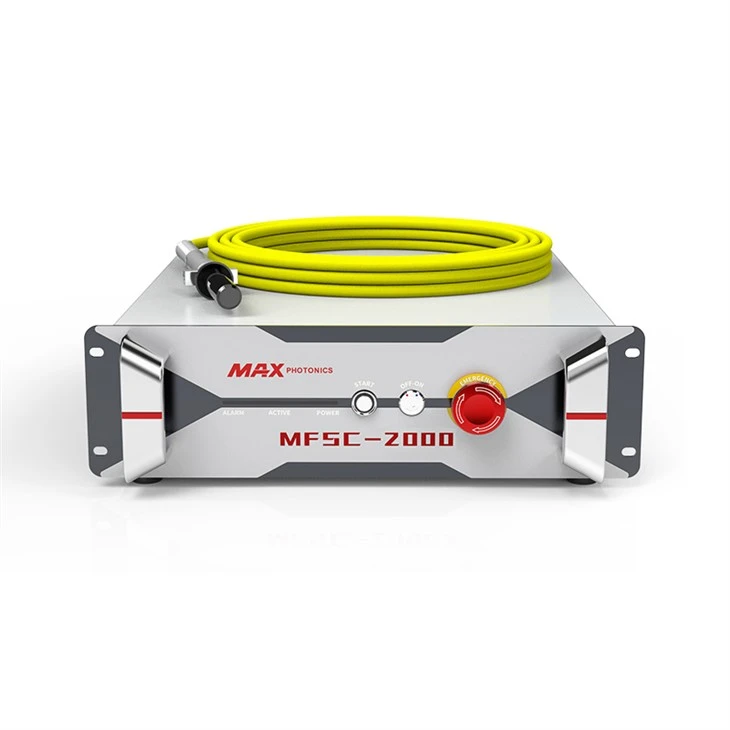

Laser generator |
Raycus / MAX |
|
Control system |
Fangling L5210H |
|
Nesting software |
FLCAME |
|

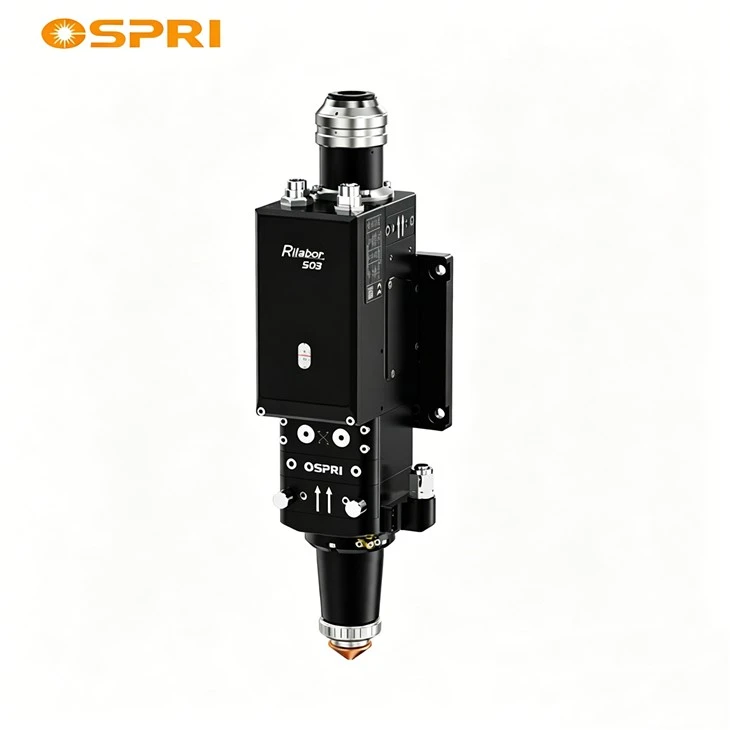

Laser cutting head |
Oss tube glass |
|
Rack |
Swarth |
|
Motor / Driver |
Lei Sai / Start |
|
Speed reducer |
Ants |
|
Proportional valve |
SMC |
|
Electrical components |
Chint / Delixi |
|
Chiller |
Special domain |
|
Voltage regulator |
Maokun |
Every part is specified. No unbranded "black boxes."
Technical Parameter – Full Table
|
Parameter |
Specification |
|
Laser generator |
Raycus/MAX |
|
Control system |
Fangling L5210H |
|
Nesting software |
FLCAME |
|
Laser cutting head |
Oss tube glass |
|
Effective cutting range |
3000mm x 1500mm (customizable) |
|
Maximum speed |
7000mm/min |
|
Repeatability |
±0.1mm |
|
Position accuracy |
±0.3mm/1000mm |
|
Rack |
Swarth |
|
Motor/Driver |
Lei Sai/Start |
|
Speed reducer |
Ants |
|
Proportional valve |
SMC |
|
Electrical components |
Chint/Delixi |
|
Chiller |
Special domain |
|
Voltage regulator |
Maokun |
Applications – Where This Machine Works
Server racks and enclosures – precise cutouts, no secondary finishing
Automobile manufacturing – small brackets, panels, prototypes
Elevator manufacturing – stainless and mild steel decorative parts
General sheet metal processing – job shops, small batch production
A customer in the elevator industry reported: "We replaced a worn-out plasma system with this automatic small laser cutting machine. Our scrap rate dropped by 18% in the first two months."
Who We Are – Hebei Juliang Technology Co., Ltd.
Founded in 2014, Juliang began with CNC cutting and has since grown through three enterprise upgrades and three factory relocations, each time scaling production capacity.
2014 – First portable cutting machine
2018 – Registered "Xin Juliang" brand; established Hebei Juliang Technology Co., Ltd.
2020 – Multiple invention patents, designated as Hebei industrial enterprise R&D institution
2022 – High-tech enterprise certification; launched foreign trade
2025 – Listed as a large-scale enterprise and specialized, refined, distinctive, and innovative enterprise
Today, Juliang products are exported to Southeast Asia, Russia, Africa, Europe, and the United States, with main markets including Africa (23%), Southeast Asia (18%), and Eastern Asia (15%).
Production Process & Quality Control
Our factory is equipped with:
- Large laser cutting machines (for fabricating machine beds)
- Gantry milling machines
- Swivel arm drilling machines
- Laser welding machines
- High-precision collimators
- Each automatic small laser cutting machine undergoes:
- Bed leveling and stress relief
- Rack and rail alignment (laser interferometer checked)
- Motor-driver tuning
- Full power test cut on 3mm–8mm mild steel
- 24-hour burn-in cycle before packaging
Our Service Model – Not Just a Warranty
|
Service |
How It Works |
|
Pre-sale sample test |
Free sample cutting at our showroom. Send your material and drawing. |
|
Installation |
Remote video guidance or on-site (arranged case by case) |
|
Training |
Operator training included; covers software (FLCAME) and daily maintenance |
|
Technical support |
24/7 free remote video support from multiple engineers |
|
Parts replacement |
Remote diagnosis → engineer assessment → ship parts → video-guided replacement |
|
Return-to-factory repair |
Pack → ship → test → analysis → free repair (under warranty) → burn-in test → return |
Service support begins at the moment of purchase, not ends at the moment of purchase.
Customer Case – Small Workshop, Big Result
Customer: Metal fabrication shop in Malaysia, 8 employees
Previous method: Plasma cutting + angle grinder finishing
Machine purchased: This automatic small laser cutting machine (1000W Raycus, 3000x1500)
Result after 3 months:
Cutting time per part reduced from 4.5 minutes to 1.8 minutes
No grinding required on 80% of parts
One operator now runs the laser + other tasks
Feedback: "We should have bought this two years ago."
Frequently Asked Questions (FAQ)
Q: Can this automatic small laser cutting machine cut stainless steel and aluminum, or only mild steel?
A: Yes. With the Raycus/MAX generator, it cuts mild steel (up to 8mm clean), stainless steel (up to 4–5mm), and aluminum (up to 3mm). Cutting speed varies by material and thickness. The process database in Fangling L5210H includes presets for common metals.
Q: What is included in the standard package? Do I need to buy anything extra?
A: The standard package includes: laser generator, cutting head, chiller, voltage regulator, control system, nesting software (FLCAME), and all electrical components listed in the table. You need to provide: compressed air (dry and clean), a stable power supply, and a PC for offline programming.
Q: How long does shipping take, and how do I handle installation in my country?
A: Standard lead time is 20–30 working days. Shipping is by sea; we pack the machine on a reinforced pallet with anti-rust film and shockproof foam. Installation is guided remotely via video. For customers requiring on-site installation, we can arrange an engineer – cost quoted separately.
Ready to Move Past Plasma?
Request a free cutting test. Send us:
- Material type and thickness
- A sample drawing (DXF or PDF)
- Your local voltage and frequency
- We will return cutting parameters, estimated cycle time, and a short video of the test cut.
- Contact our export team directly. No automated quotes. Just a real conversation.
- Hebei Juliang Technology Co., Ltd.
- High-tech enterprise | CE certified | Multiple invention patents | 11+ years in CNC cutting
